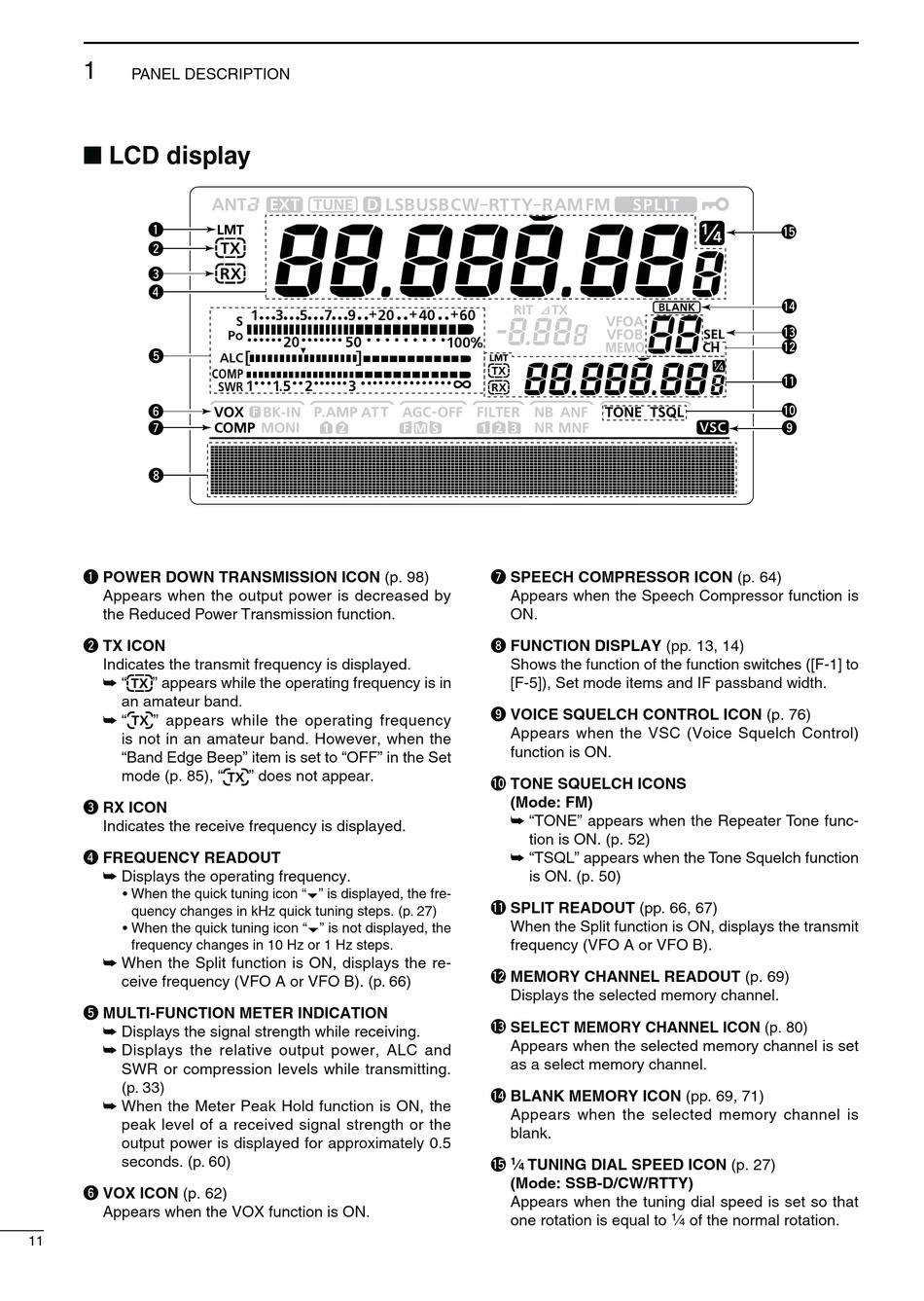

PANEL DESCRIPTION
q
w
e
r
t
y
u
i
q POWER DOWN TRANSMISSION ICON (p. 98)
Appears when the output power is decreased by
the Reduced Power Transmission function.
w TX ICON
Indicates the transmit frequency is displayed.
"
" appears while the operating frequency is in
an amateur band.
" " appears while the operating frequency
is not in an amateur band. However, when the
"Band Edge Beep" item is set to "OFF" in the Set
mode (p. 85), "
e RX ICON
Indicates the receive frequency is displayed.
r FREQUENCY READOUT
Displays the operating frequency.
quency changes in kHz quick tuning steps. (p. 27)
frequency changes in 10 Hz or 1 Hz steps.
When the Split function is ON, displays the re-
ceive frequency (VFO A or VFO B). (p. 66)
t MULTI-FUNCTION METER INDICATION
Displays the signal strength while receiving.
Displays the relative output power, ALC and
SWR or compression levels while transmitting.
(p. 33)
When the Meter Peak Hold function is ON, the
peak level of a received signal strength or the
output power is displayed for approximately 0.5
seconds. (p. 60)
y VOX ICON (p. 62)
Appears when the VOX function is ON.
11
" does not appear.
" is displayed, the fre-
" is not displayed, the
u SPEECH COMPRESSOR ICON (p. 64)
Appears when the Speech Compressor function is
ON.
i FUNCTION DISPLAY (pp. 13, 14)
Shows the function of the function switches ([F-1] to
[F-5]), Set mode items and IF passband width.
o VOICE SQUELCH CONTROL ICON (p. 76)
Appears when the VSC (Voice Squelch Control)
function is ON.
!0 TONE SQUELCH ICONS
"TONE" appears when the Repeater Tone func-
tion is ON. (p. 52)
"TSQL" appears when the Tone Squelch function
is ON. (p. 50)
!1 SPLIT READOUT (pp. 66, 67)
When the Split function is ON, displays the transmit
frequency (VFO A or VFO B).
!2 MEMORY CHANNEL READOUT (p. 69)
Displays the selected memory channel.
!3 SELECT MEMORY CHANNEL ICON (p. 80)
Appears when the selected memory channel is set
as a select memory channel.
!4
Appears when the selected memory channel is
blank.
!5
1
⁄ TUNING DIAL SPEED ICON (p. 27)
4
Appears when the tuning dial speed is set so that
one rotation is equal to
!5
!4
!3
!2
!1
!0
o
(pp. 69, 71)
1
⁄ of the normal rotation.
4
