HOTMOUSE

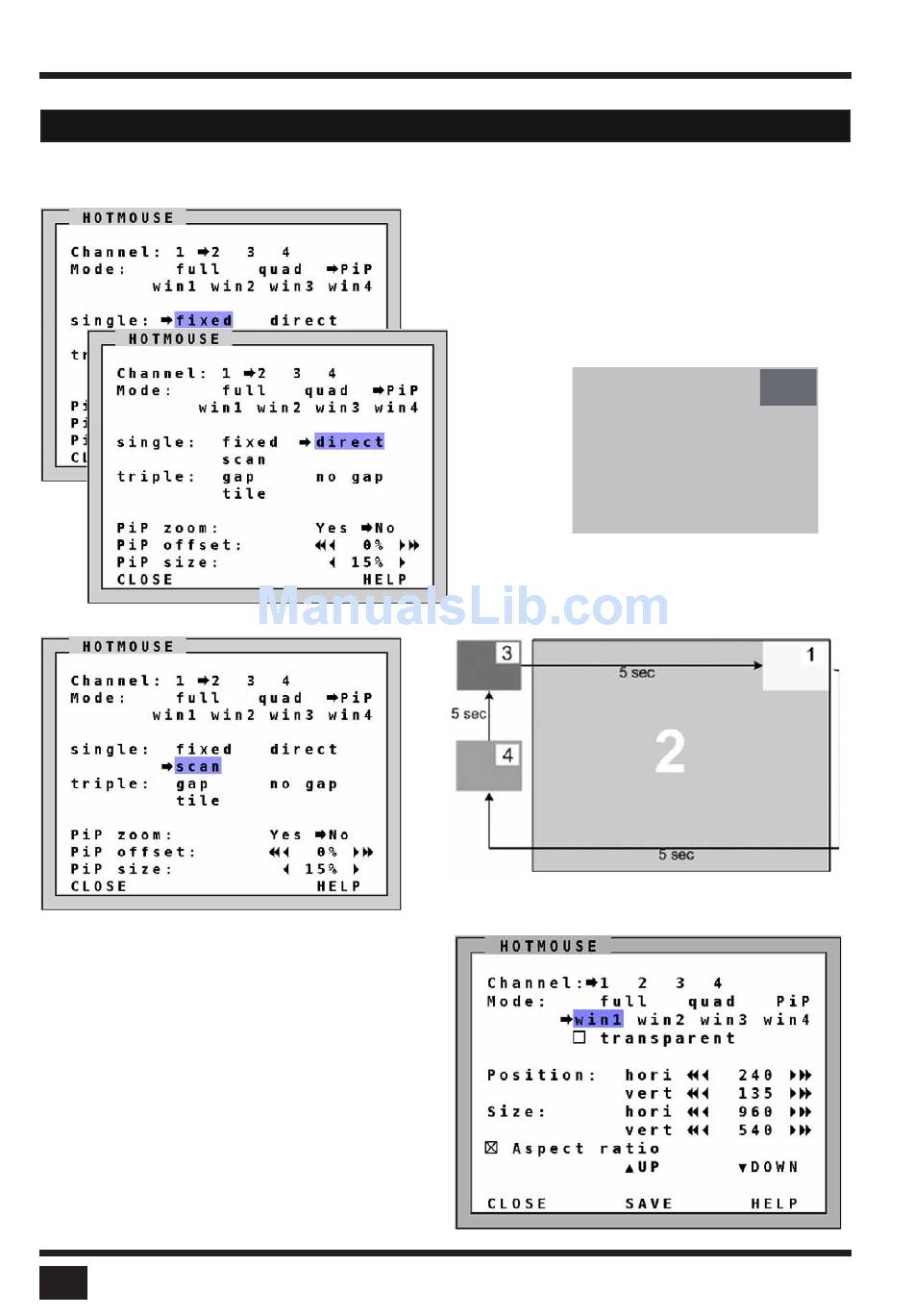

Hotmouse Menu - MODES
Hotmouse Menu – PIP MODE (continued)
Hotmouse Menu – Win Mode
Use the section "Mode" in the hotmouse menu in WIN
mode to save the position of your channel windows.
Four different configuration sets can be saved under
win1, win2, win3 or win4.
1. Enter Win Mode
2. Position and/or resize your channel windows as
desired.
3. Activate the hotmouse menu.
4. Select one of the win slots
5. Click "Save" at the bottom of the hotmouse menu
82
SPLITMUX - Installation and Operation Manual
Single fixed: One selected PiP image is permanently
displayed.
Single direct: Press the front panel buttons 1, 2, 3, or 4
to directly select the PiP channel you want.
Single scan: Cycles through the PiP
images at a set interval.
4
2
