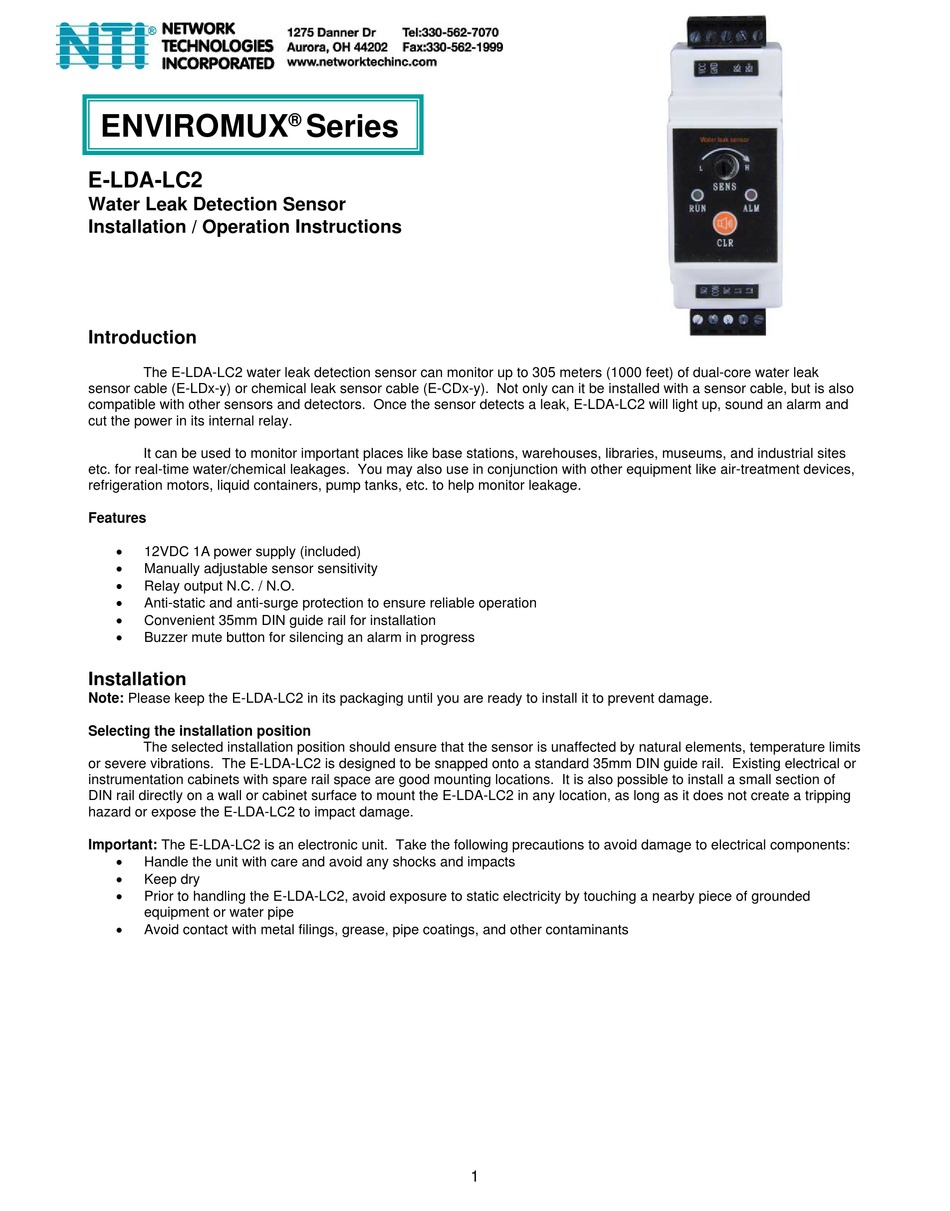

NTI ENVIROMUX Series Installation & Operation Instructions

ENVIROMUX
E-LDA-LC2

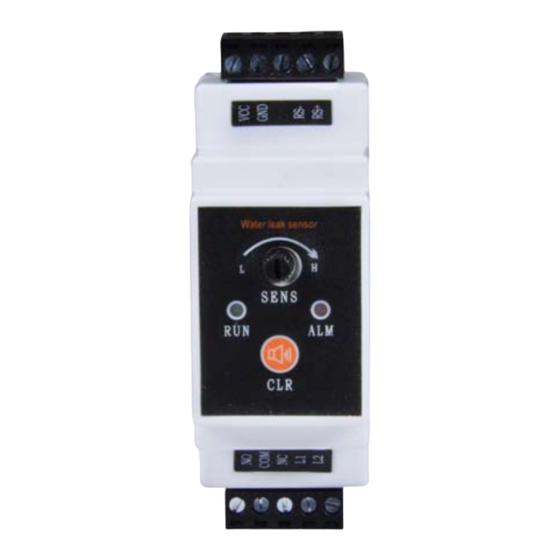

Water Leak Detection Sensor
Installation / Operation Instructions
Introduction
The E-LDA-LC2 water leak detection sensor can monitor up to 305 meters (1000 feet) of dual-core water leak
sensor cable (E-LDx-y) or chemical leak sensor cable (E-CDx-y). Not only can it be installed with a sensor cable, but is also
compatible with other sensors and detectors. Once the sensor detects a leak, E-LDA-LC2 will light up, sound an alarm and
cut the power in its internal relay.
It can be used to monitor important places like base stations, warehouses, libraries, museums, and industrial sites
etc. for real-time water/chemical leakages. You may also use in conjunction with other equipment like air-treatment devices,
refrigeration motors, liquid containers, pump tanks, etc. to help monitor leakage.
Features

12VDC 1A power supply (included)

Manually adjustable sensor sensitivity

Relay output N.C. / N.O.

Anti-static and anti-surge protection to ensure reliable operation

Convenient 35mm DIN guide rail for installation

Buzzer mute button for silencing an alarm in progress
Installation
Note: Please keep the E-LDA-LC2 in its packaging until you are ready to install it to prevent damage.
Selecting the installation position
The selected installation position should ensure that the sensor is unaffected by natural elements, temperature limits
or severe vibrations. The E-LDA-LC2 is designed to be snapped onto a standard 35mm DIN guide rail. Existing electrical or
instrumentation cabinets with spare rail space are good mounting locations. It is also possible to install a small section of
DIN rail directly on a wall or cabinet surface to mount the E-LDA-LC2 in any location, as long as it does not create a tripping
hazard or expose the E-LDA-LC2 to impact damage.
Important: The E-LDA-LC2 is an electronic unit. Take the following precautions to avoid damage to electrical components:

Handle the unit with care and avoid any shocks and impacts

Keep dry

Prior to handling the E-LDA-LC2, avoid exposure to static electricity by touching a nearby piece of grounded
equipment or water pipe

Avoid contact with metal filings, grease, pipe coatings, and other contaminants
®
