HARDWARE

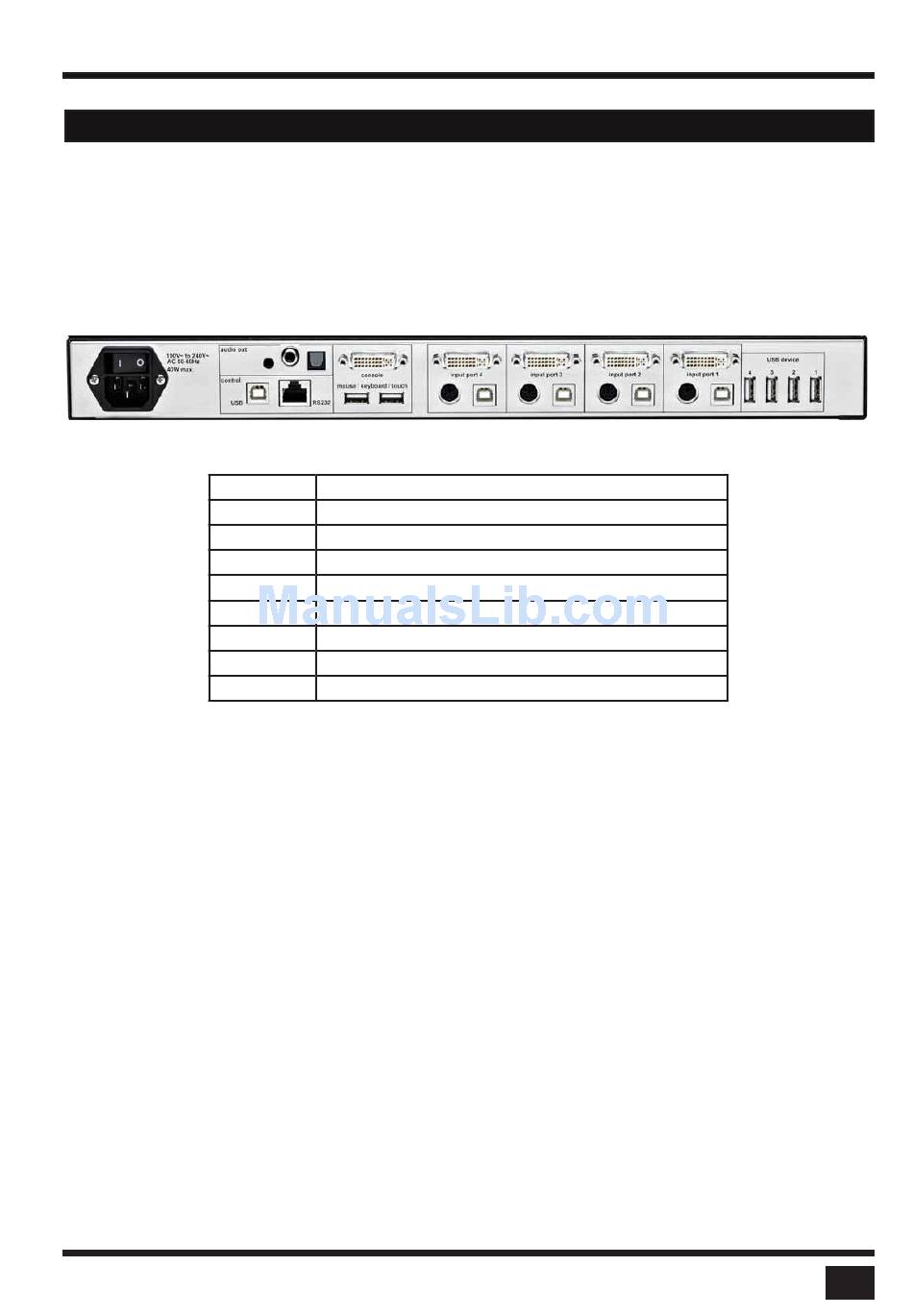

REAR PANEL
The rear panel of SPLITMUX features three audio ports, four input source/computer ports, the console
port (KVM), the USB control port, the serial RS232 control port, four transparent high-speed USB 2.0 device
ports, the power connection.
1
1. Power
Plug for enclosed power cable.
2. Audio ports
Connect external speakers or headphones to the 3,5mm analog stereo jack or digital cinch connector. The
TOSLINK optical audio connection enables digital audio output.
3. Monitor / DVI-I output
Analog or digital displays connect to this port.
4. DVI-I inputs
Analog or digital video signal of your up to four sources connect to these four DVI-I ports.
5. USB control port
External USB control devices connect to this port to operate SPLITMUX remotely. Execute firmware
updates or manage the device using ConfDev by means of the control ports.
SPLITMUX - Installation and Operation Manual
2
3
5
6
7
1
Power
2
Audio ports
3
Monitor / DVI-I output
4
Four DVI-I inputs
USB control port
5
6
RS232 / RJ45 control port
7
USB for keyboard, mouse, touch or trackball (console)
8
USB or PS2 keyboard and mouse (computer)
9
Four transparent high-speed USB 2.0 ports
4
8
