ON SCREEN DISPLAY
OSD - SYSTEM - HDCP
HDCP STATUS

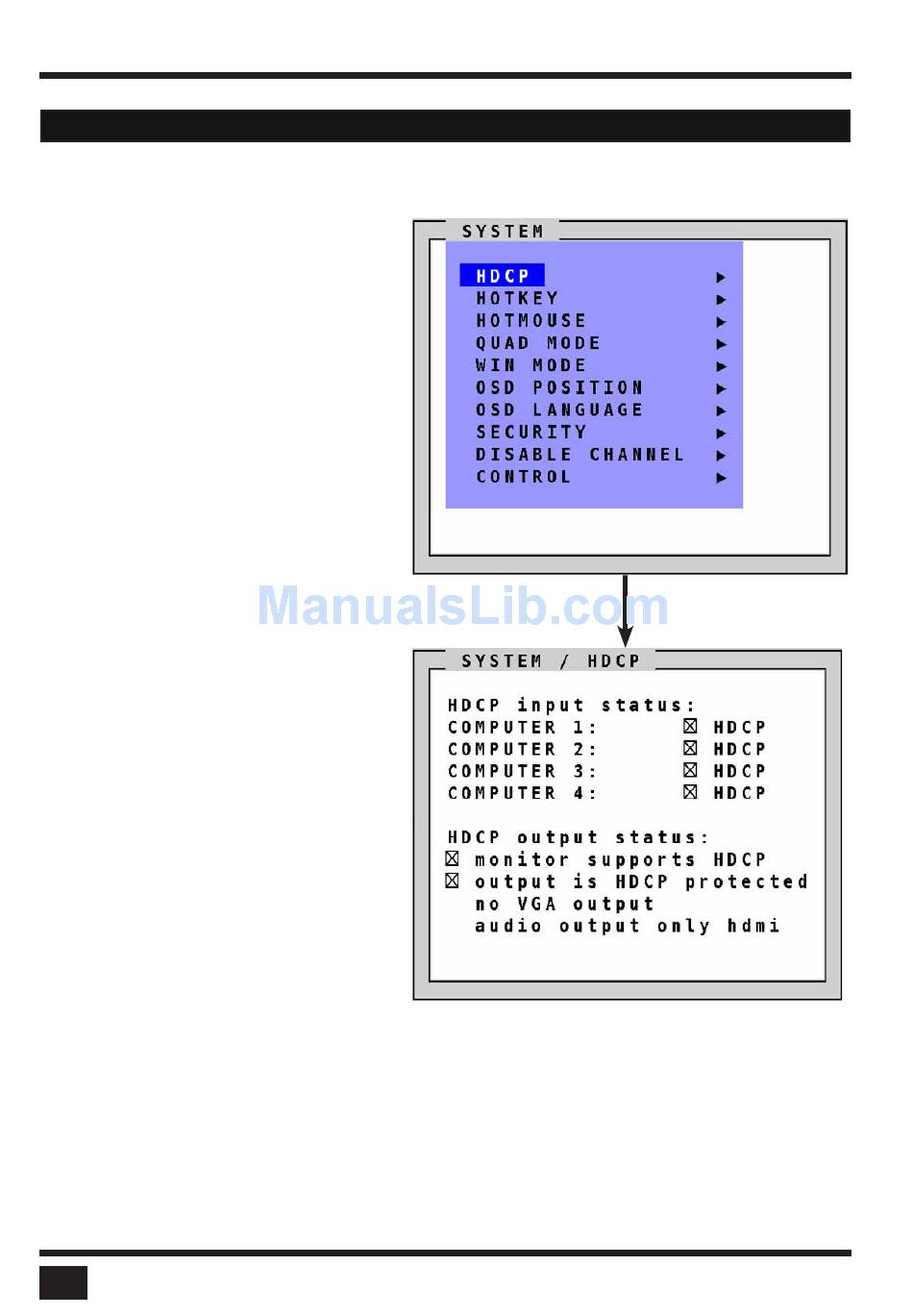

Use the arrow keys to navigate in the SYSTEM
menu to the entry HDCP and press ENTER/
SELECT to open the HDCP window.
The SYSTEM / HDCP window displays the
status of HDCP input and output encoding.
HDCP (High-bandwidth Digital Content
Protection) is an encoding system used to
secure and transmit audio and video.
In the upper part of the window, the HDCP
status of the four input signals is displayed.
When a checkbox is marked, the source
is transmitting an HDMI signal with HDCP
encoding.
SPLITMUX displays this signal only
when HDCP encoding is capable of being
activated on the output device as well.
The lower portion of the window displays the
HDCP status of the output. The first line shows
whether the monitor connected supports HDCP.
When checked, the next line indicates whether
the signal proceeding from SPLITMUX
is protected by HDCP. If the output signal is
HDCP encoded, SPLTIMUX puts out
neither analog video signal nor any separate
audio signal.
18
SPLITMUX - Installation and Operation Manual
