ON SCREEN DISPLAY

OSD - MAIN MENU WINDOW

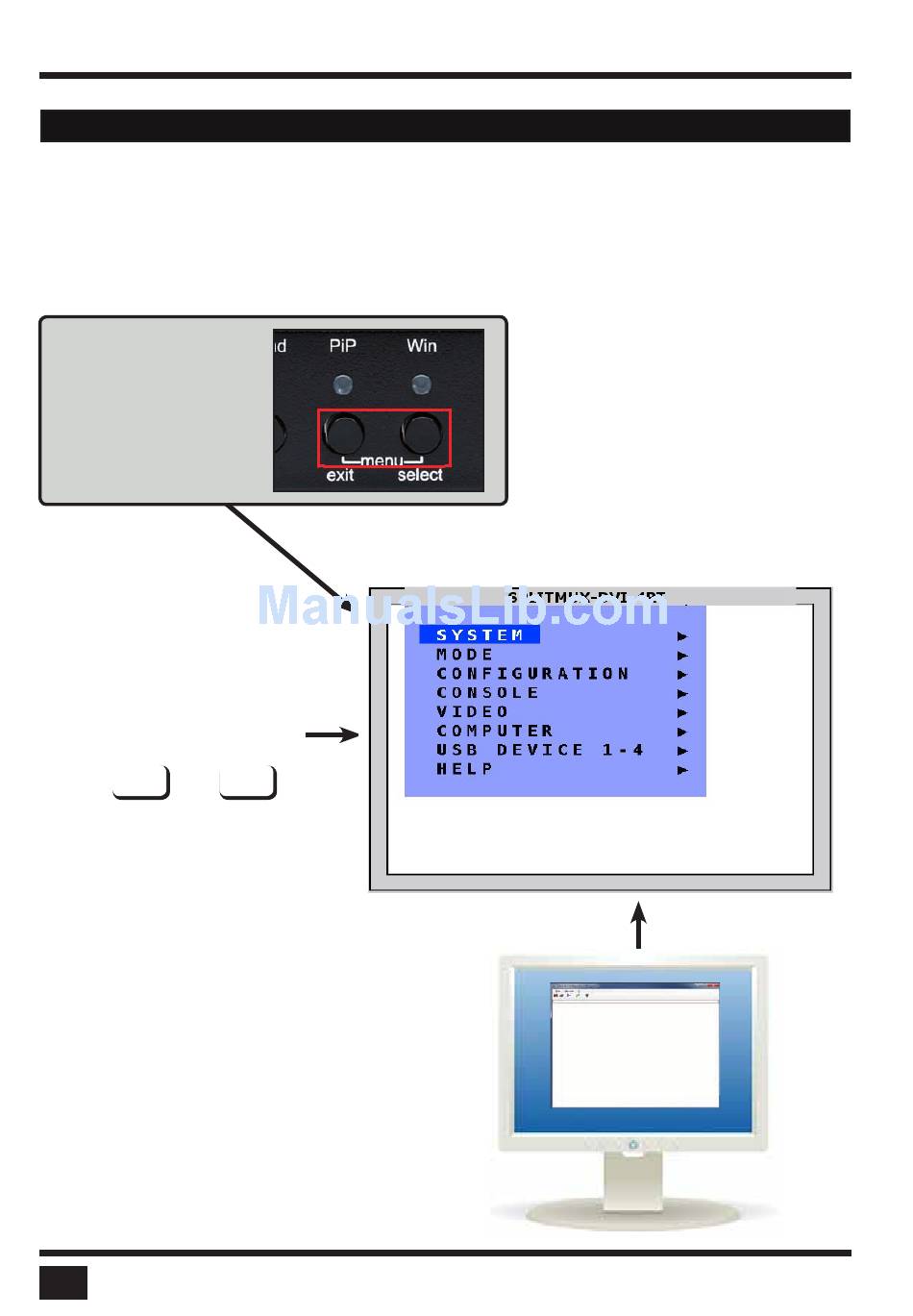

There are three ways to open the OSD main menu (figure):
• use keyboard command „hotkey" + „O"
• simultaneously press front panel buttons „PiP" + „Win" for longer than one second
• remotely open the OSD via ConfDev program on an external PC with serial or USB connection
1
Call the OSD by pressing
buttons „PiP„ + „Win„
simultaneously for longer
than one second
Press Hotkey + O on
2
your computer keyboard
+
HK
Use a serial or USB connection
3
from a PC to SPLITMUX
to remotely open the OSD using
ConfDev.
16
SPLITMUX - Installation and Operation Manual
O
On Screen Display (OSD)
The OSD pops up in the
center of the screen (on top
of the video image).
