ON SCREEN DISPLAY
OSD - VIDEO - DVI/VGA
DVI/VGA

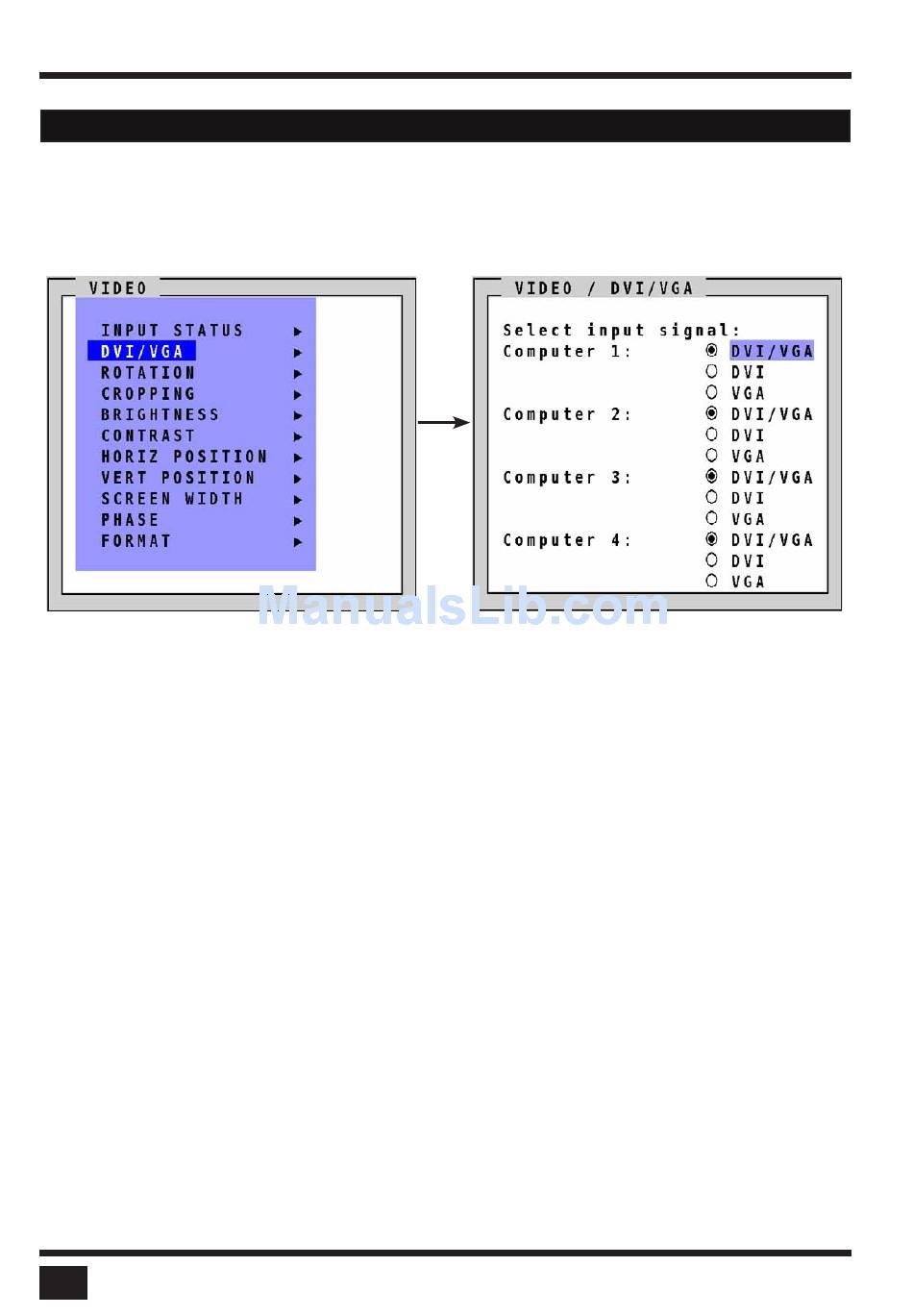

Use arrow keys to navigate in the VIDEO menu to the entry DVI/VGA and press ENTER/SELECT to open the
DVI/VGA window.
Go to "Select input signal" and define which video signal (VGA or DVI) is to be displayed.
If the setting „DVI/VGA" is selected, SPLITMUX will first check the digital input.
If there is no signal at this input, the analog signal input will be checked.
This function can be used to connect e.g. 8 sources (4x VGA + 4x DVI) via Y-cables to SPLITMUX.
52
SPLITMUX - Installation and Operation Manual
