HARDWARE

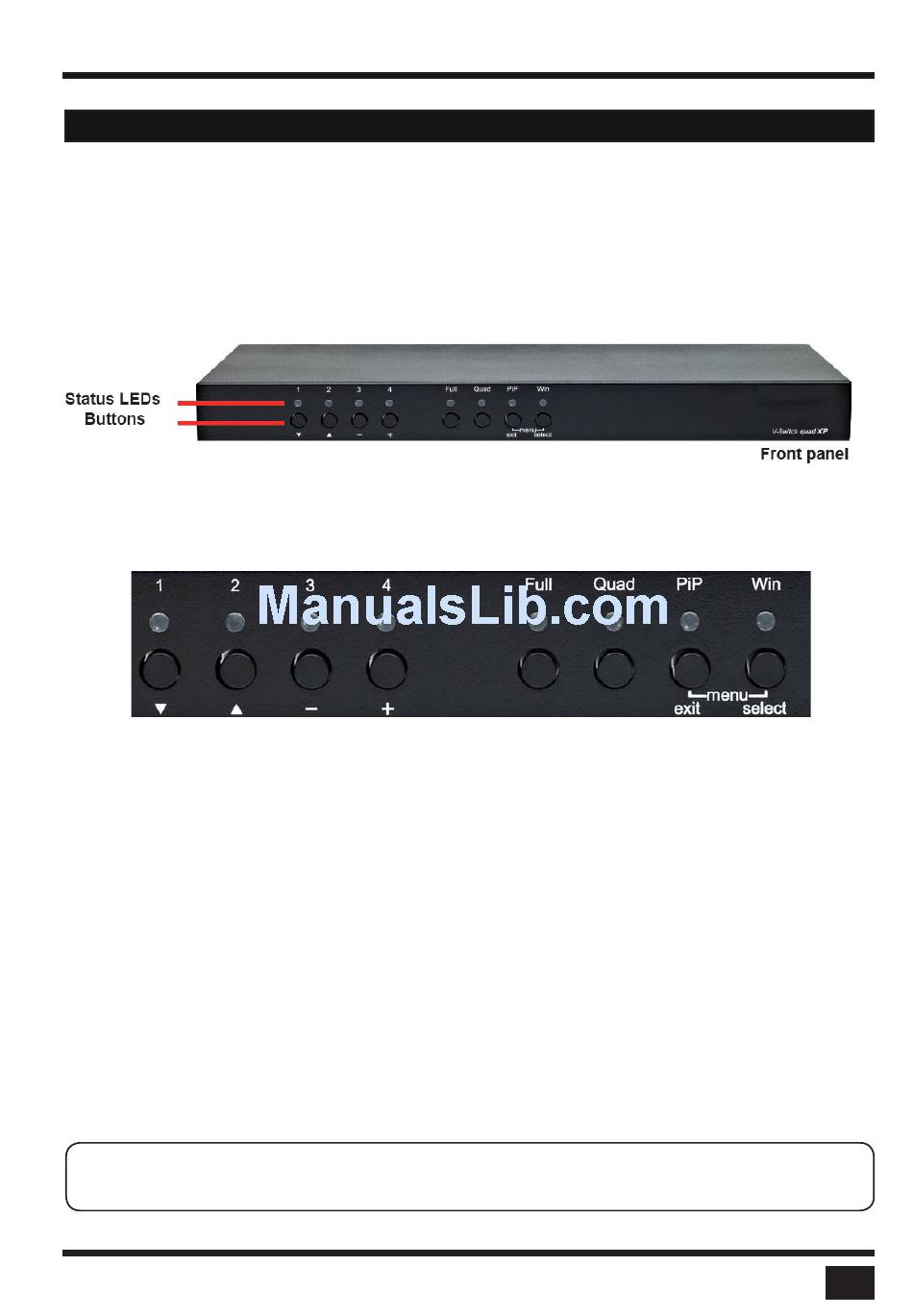

FRONT PANEL

The SPLITMUX front panel has eight status indicators (LEDs) and eight buttons.
Buttons 1 to 4 switch between channels, LEDs 1 to 4 indicate the status of the individual channels. Full, Quad,
PiP and Win buttons LEDs are used to switch and indicate display modes and other functions, e.g. opening the
OSD menu.
Status LEDs
Buttons
LED indicators
- LEDs 1 to 4:
- LED Full:
- LED Quad:
- LED PiP:
- LED Win:
Note: While the OSD menu is open, the active computer can still be operated by mouse or touch screen.
SPLITMUX - Installation and Operation Manual
When these LEDs light up green, the corresponding channel (computer port) has
been selected and is available for keyboard and mouse access. When a LED flashes
green, there is no signal at the video input of the selected channel.
An LED lights up yellow when there is a signal at the video input, but another channel
has been selected.
When the LED is dark, there is no signal at the video input and another channel has
been selected.
The LEDs light up blue when Win Mode preset window configuration is being selected.
This LED lights up green when the unit is in Fullscreen mode.
This LED lights up green when the unit is in Quad mode.
This LED lights up green when the unit is in PiP mode.
This LED lights up green when the unit is in Win mode.
INTRODUCTION
Front panel
