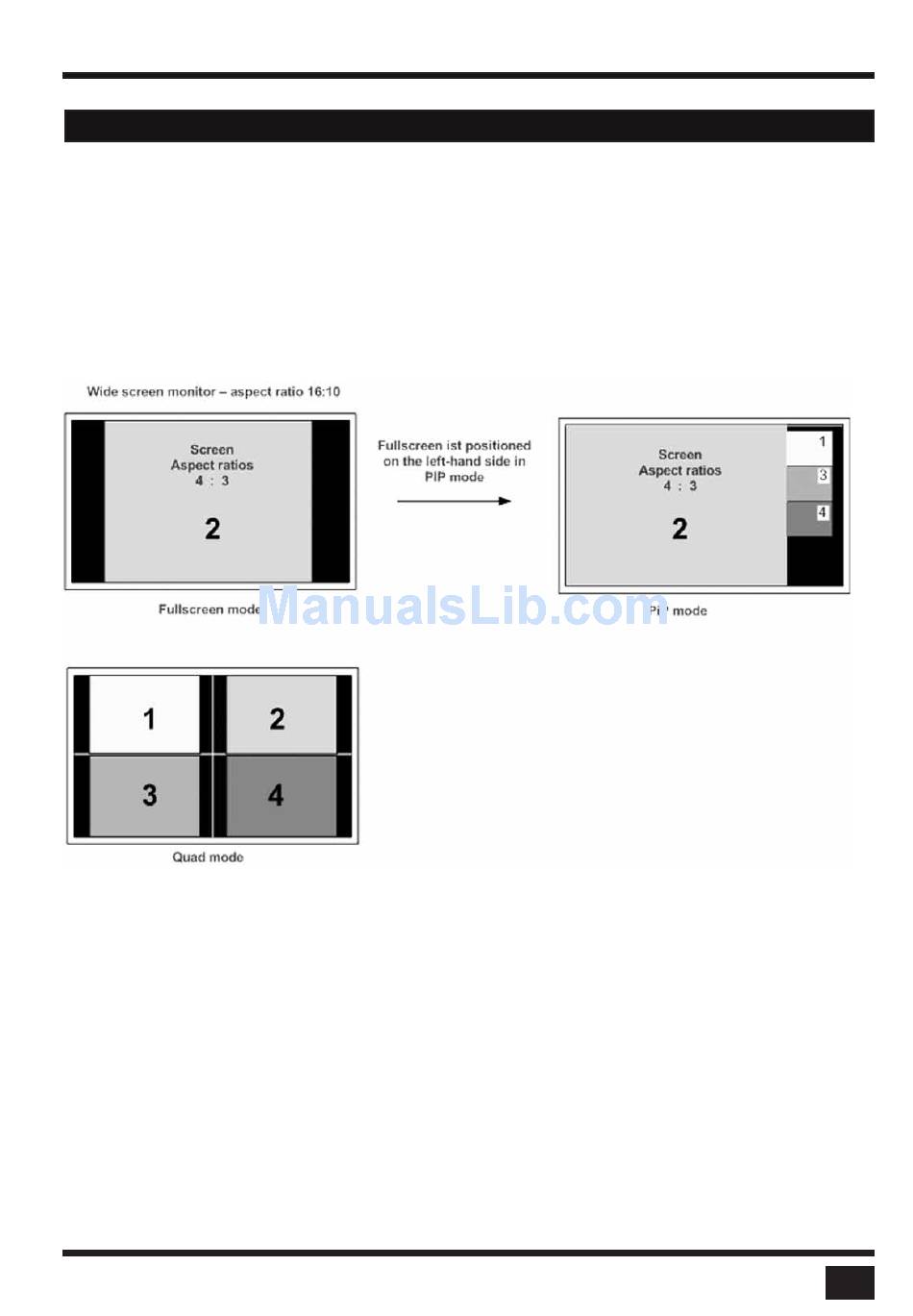

PiP mode for wide-screen monitors
If you use a wide-screen monitor (for example with an aspect ratio of 16:10) and the active channel does not
have a wide-screen aspect ratio (e.g. 4:3), PiPs are placed aside the full image of the active channel in the
black bar on the right side. The full image of the active channel is displayed left-aligned on the screen resulting
in a black bar on the right side. Provided appropriate PiP size (20%) is set, PiP images are thus placed entirely
outside the full screen channel. No screen content is overlapped. All content of all souces is visible.
