ON SCREEN DISPLAY

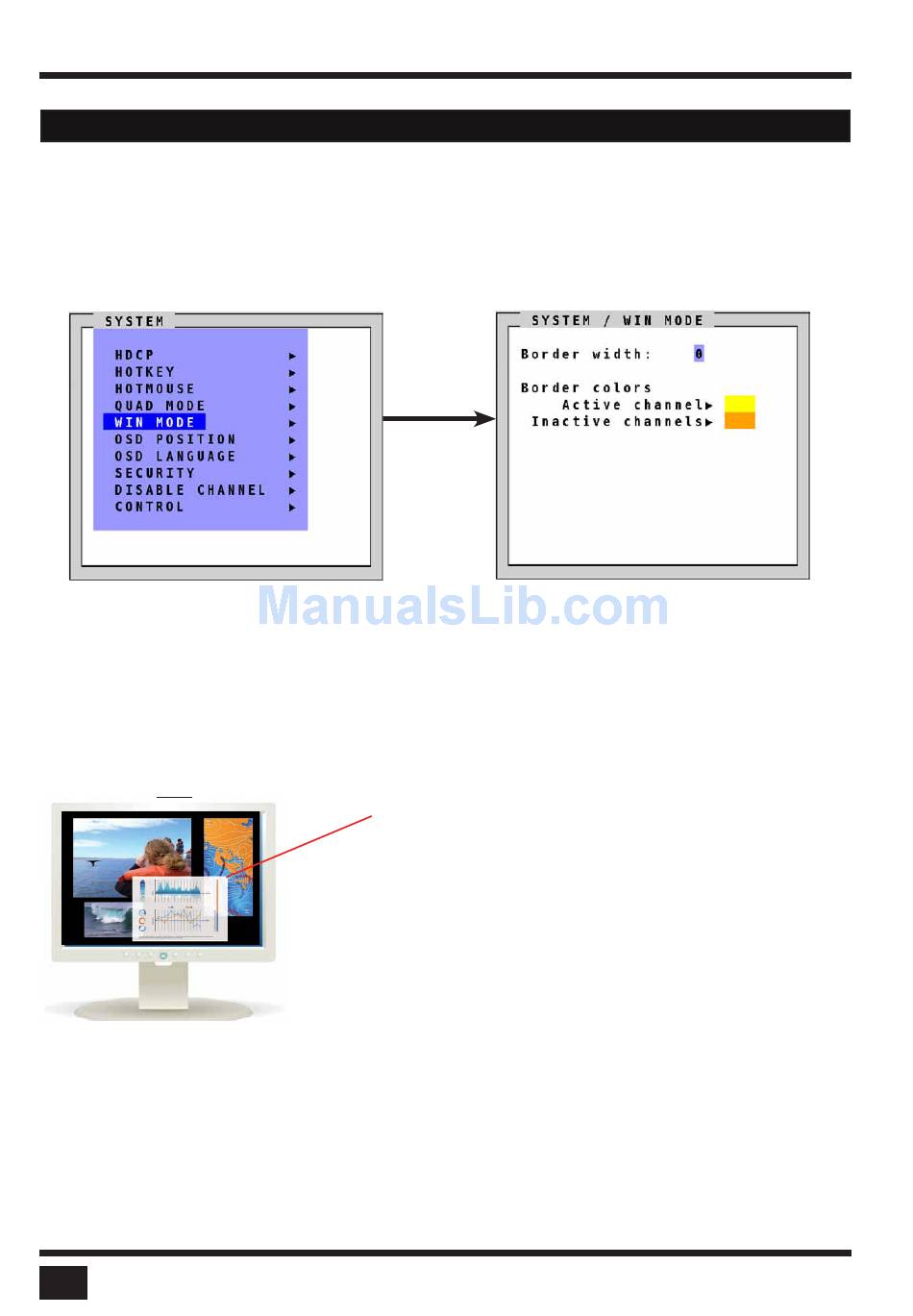

OSD - SYSTEM - WIN MODE

WIN MODE

Navigate with the arrow keys in the SYSTEM menu to the entry WIN MODE and press ENTER/SELECT to open
the Win mode window.
Border width: Set the width of the borders, which are drawn around the signals in Win mode. When the border
width is zero, no borders are shown.
Border colors:
- Active channel: Press enter /select to open the SELECT COLOR menu and set the color for the active
channel.
- Inactive channels: Press enter /select to open the SELECT COLOR menu and set the color for the inactive
channels.
Pop Up Buttons
Move the hotmouse cursor to the top right corner of the signal window, and the following buttons will appear:
= Open OSD hotmouse context menu
O
= Swap signal windows. After this is selected, the other window is clicked.
S
= Toggle aspect ratio locking for current window
R
22
SPLITMUX - Installation and Operation Manual
Selector
In Win mode, use hotkey '1-4' to select a channel or
window. (Alternatively, the hotmouse function or front
panel buttons 1-4 can be used to select a channel or
window as well.) When a channel has been selected,
a colored border will appear around the window of
the active channel. The selector will also be visible.
Alternatively, press front button "Win" and select a
preset.
After the expiration of the selector timeout, the
selector closes.
