INSTALLATION
CONNECTING AUDIO
The SPLITMUX can be connected to external, powered speakers or audio devices in order for sound
coming from the four connected sources to be played back.

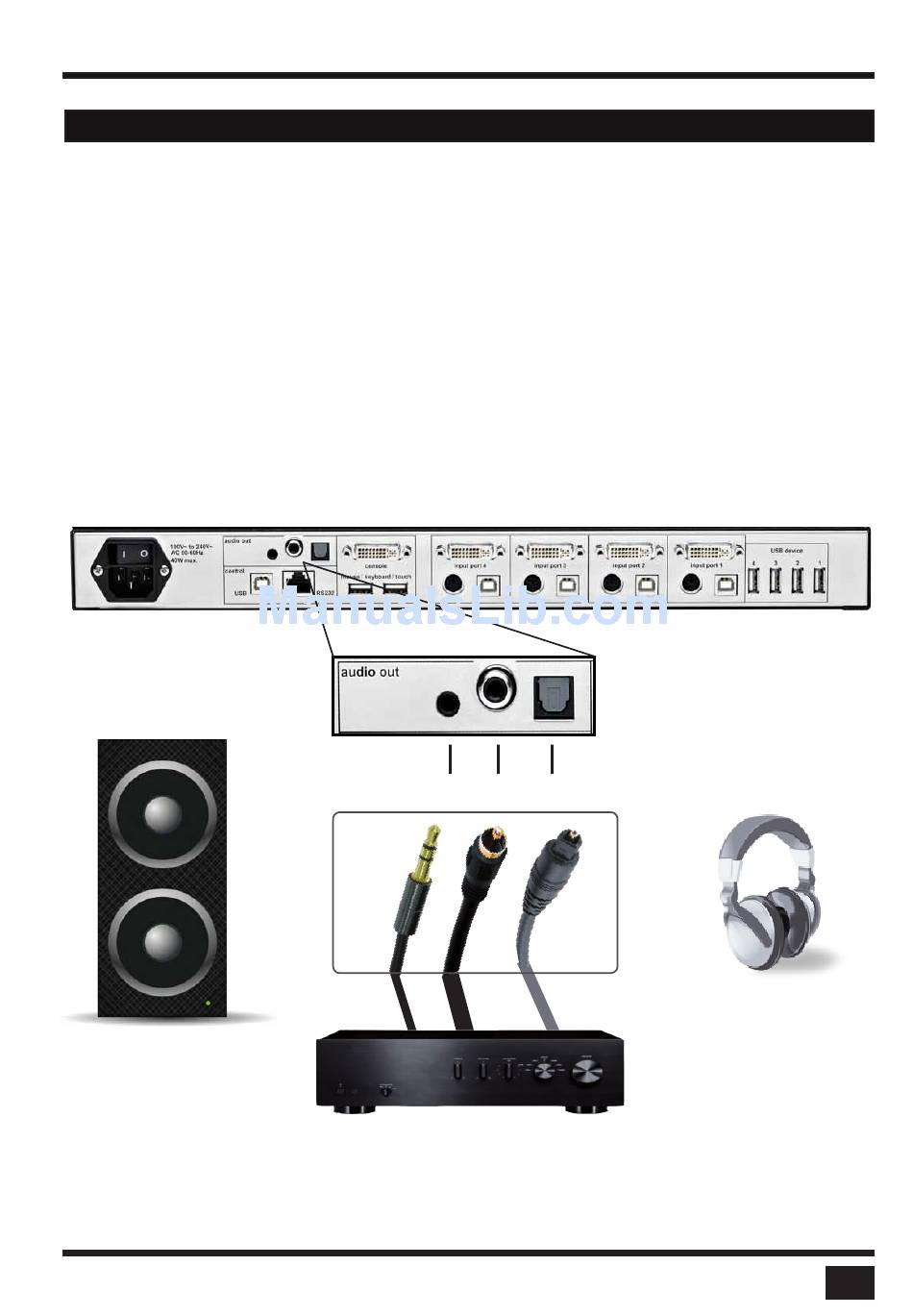

Three different connection options are made available (see graphic):
1) 3,5mm analog stereo jack
2) Digital cinch connector
3) TOSLINK optical audio jack
After the speakers have been physically connected to the SPLITMUX
- Open the OSD and navigate to COMPUTER > AUDIO
- Enable audio output
- Select the audio source and adjust the volume.
Powered
speakers
Note: Powered speakers or headphones can also be connected directly to SPLITMUX,
eliminating the need for an amplifier.
SPLITMUX - Installation and Operation Manual
1
2
3
Amplifier
INSTALLATION
A variety of device options are
available to connect to SPLITMUX
for audio output
Headphones
