FEATURES
Thank you for choosing SPLITMUX-DVI-4RT from NTI. This product represents the latest state-of-the-art tech-
nology in keyboard-video-mouse (KVM) switching. The key advantage of the SPLITMUX-DVI4-RT (SPLITMUX)
over conventional KVM switches is it allows you to simultaneously display and manage 4 computers on a single con-
sole. It combines key features of a high-end KVM switch and a digital multiviewer, scaling and converting videos
at both inputs and output.

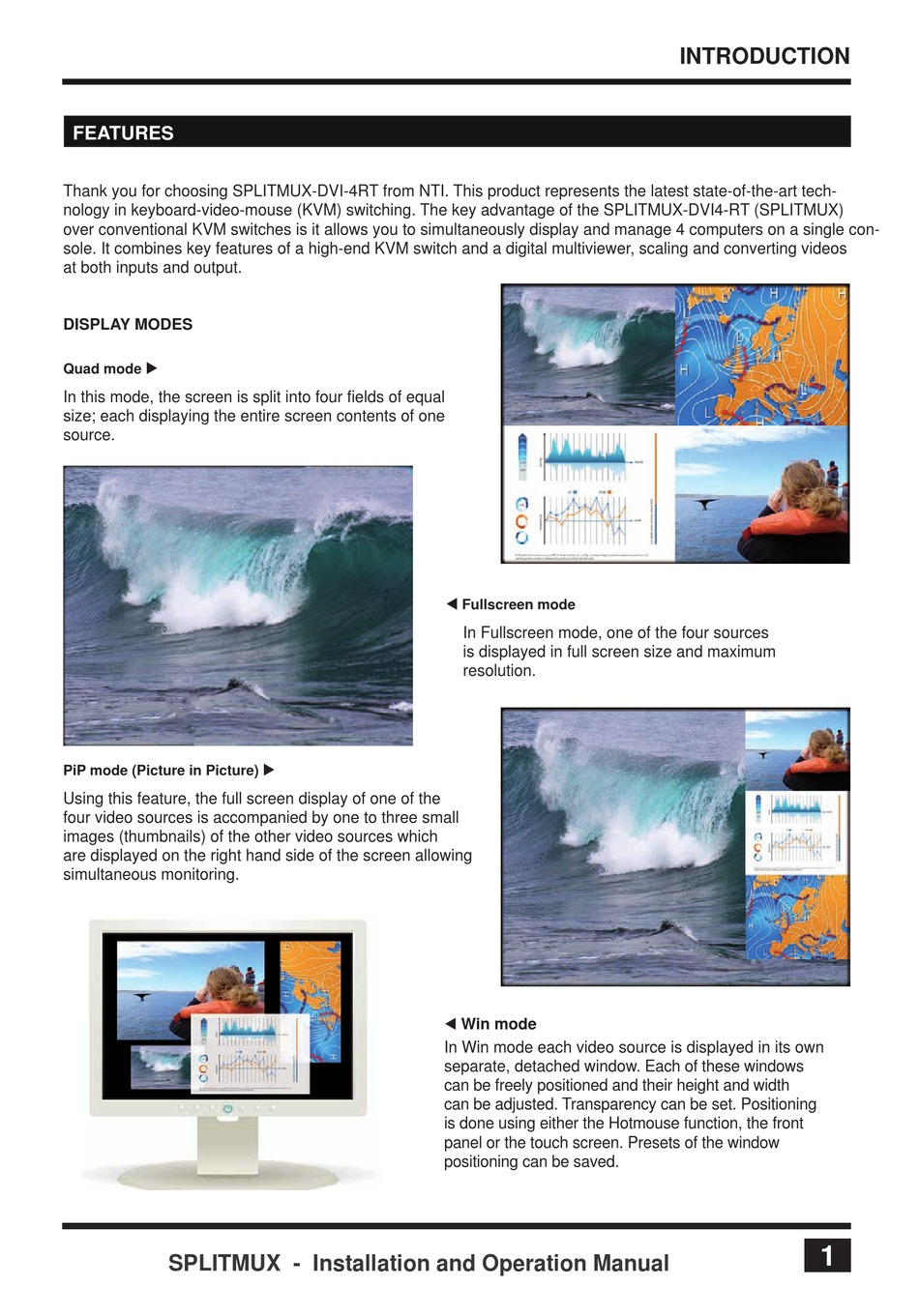

DISPLAY MODES

Quad mode u
In this mode, the screen is split into four fields of equal
size; each displaying the entire screen contents of one
source.
PiP mode (Picture in Picture) u
Using this feature, the full screen display of one of the
four video sources is accompanied by one to three small
images (thumbnails) of the other video sources which
are displayed on the right hand side of the screen allowing
simultaneous monitoring.
SPLITMUX - Installation and Operation Manual
t Fullscreen mode
In Fullscreen mode, one of the four sources
is displayed in full screen size and maximum
resolution.
t
Win mode
In Win mode each video source is displayed in its own
separate, detached window. Each of these windows
can be freely positioned and their height and width
can be adjusted. Transparency can be set. Positioning
is done using either the Hotmouse function, the front
panel or the touch screen. Presets of the window
positioning can be saved.

INTRODUCTION
