FIRMWARE UPDATE

Update firmware of SPLITMUX
To execute a firmware update, you need:
•
a computer with serial or USB port
•
the enclosed "serial cable" (RJ45-DB9 adaptor + RJ45 CAT5 cable) or a USB cable (USB-A/USB-B)
•
the current executable firmware file

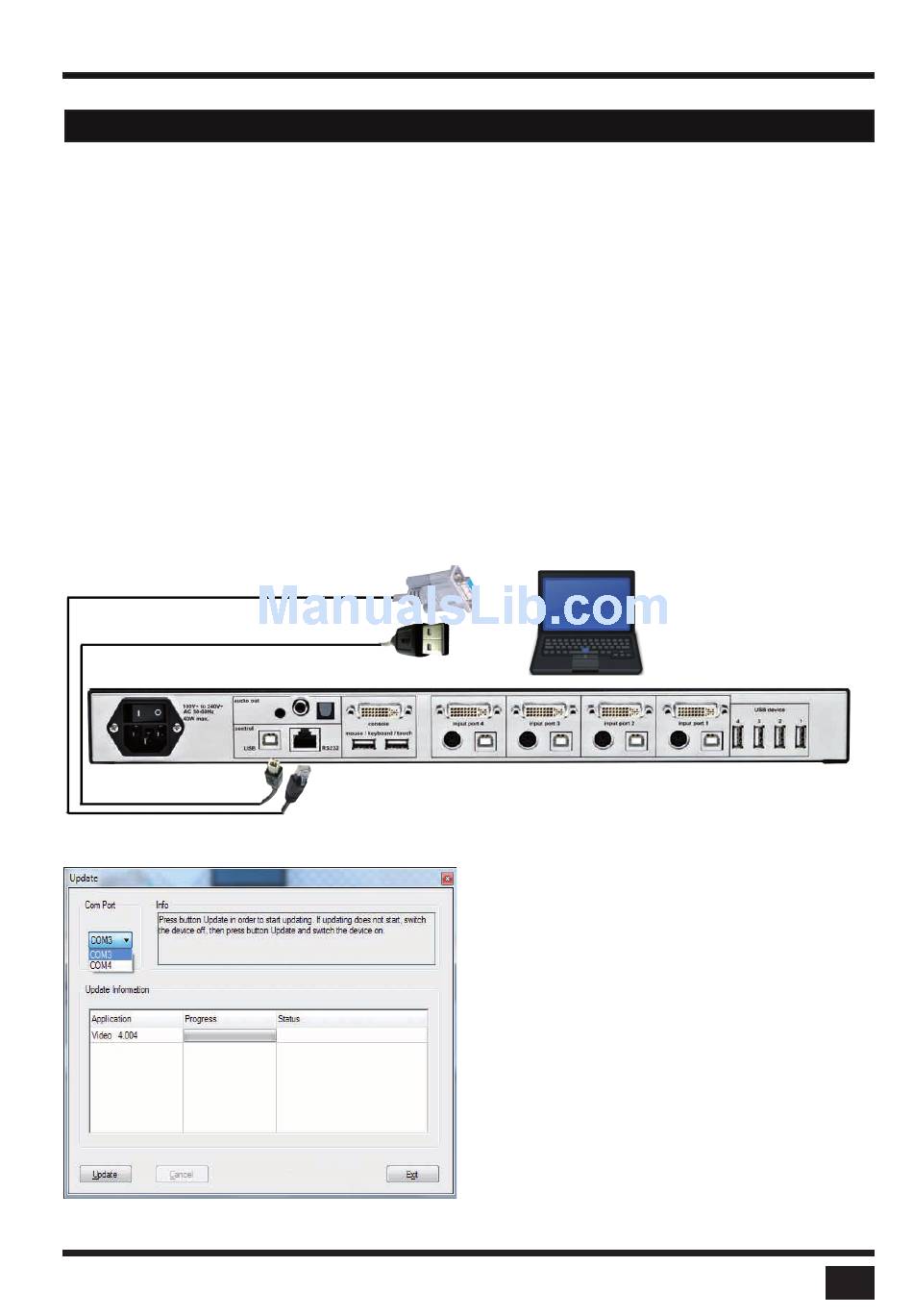

1a. Use the serial cable to connect the COM port of your computer to the RS232 port on SPLITMUX.
1b. Use the USB cable to connect the USB port of your computer to the USB port on SPLITMUX.
Note: the virtual com port USB driver can be downloaded from the Future Technology Devices
International Ltd. website at www.ftdichip.com/Drivers/VCP.htm
SPLITMUX - Installation and Operation Manual
OR
COM
or USB
Rear Panel
2. Start the executable firmware file.
3. Set the desired COM port
4. Press "Update".
LEDs 1-4 on the front panel of SPLITMUX
flash (blue) during the update.
