ON SCREEN DISPLAY

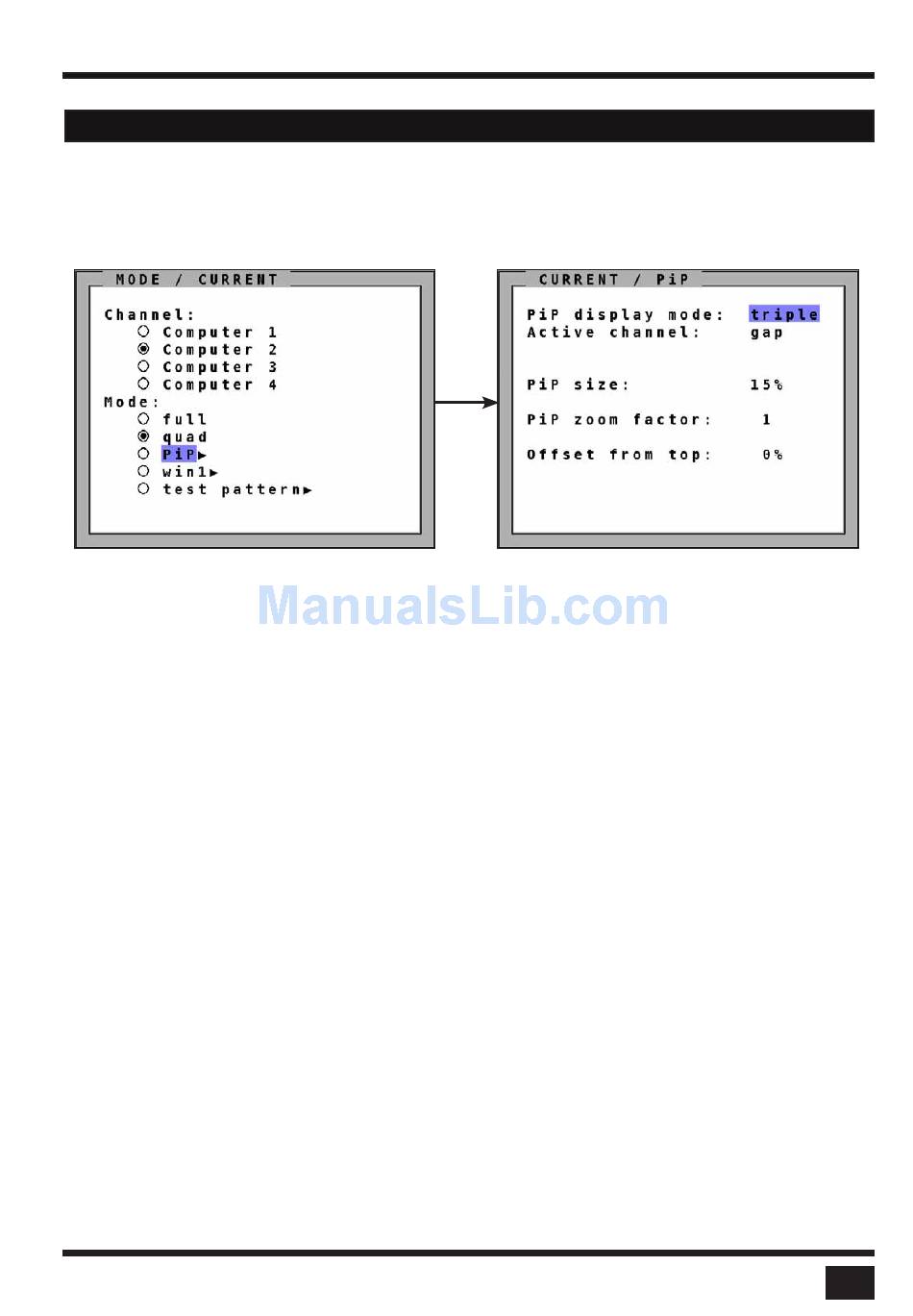

OSD - MODE - CURRENT/START - PiP
PiP
Use this section to define the current mode in which the device should run.
In the PIP window you can configure PiP size, position, and display mode.
PiP Display Mode
Select the option TRIPLE to show 3 additional screens in PiP Mode. Select SINGLE to display only one other
screen. If SINGLE is selected. Use the option PiP CHANNEL to define which channel should appear in the
single window.
See the section Display Modes for details.
PiP size
Adjust the size of PiP images to your requirements. 12 (single mode) or 9 (triple mode) different sizes are
available:
Single: 3 % - 5 % - 7 % - 10 % - 15 % - 20 % - 25 % - 28 % - 33 % - 38 % - 44 % - 50 %
Triple: 3 % - 5 % - 7 % - 10 % - 15 % - 20 % - 25 % - 28 % - 33 %
50 % equals the size of one quad screen (one quarter of a full size screen).
Note: All settings also possible via Hotmouse Menu, see page 46.
