OSD - VIDEO - INPUT STATUS
INPUT STATUS (Display Video Formats)

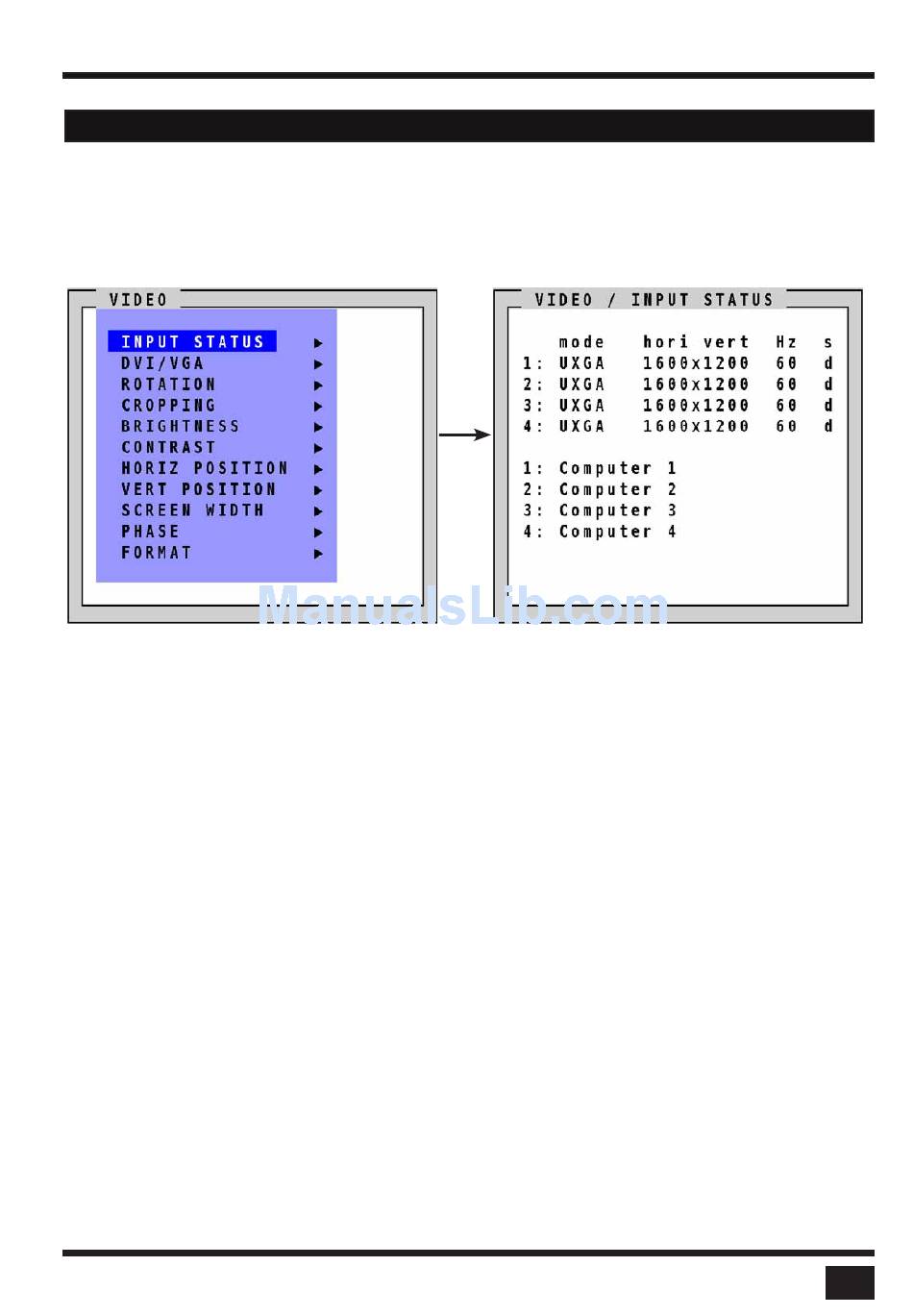

Use arrow keys to navigate in the VIDEO menu to the entry INPUT STATUS and press ENTER/SELECT to
open the INPUT STATUS window.
Resolutions at the four video inputs are shown under INPUT STATUS. Resolution recognition at the four video
inputs is automatic. Some analog input resolutions may not correctly be detected.
See Annex for a list of video formats supported by SPLITMUX.
S Signal
a = analog
d = digital
g = sync on green
c = composite sync
SPLITMUX - Installation and Operation Manual
ON SCREEN DISPLAY
51
