INSTALLATION
To reduce the need for long cables, SPLITMUX is best placed as close as possible to its video sources.
By default, SPLITMUX is delivered as desktop version. Using the rack mount kit supplied, it may also be
mounted in a 19" rack.
Keyboard, monitor, mouse (console) and USB devices are connected to SPLITMUX using the
corresponding cables (DVI, USB or PS/2). KVM extenders will allow you to work remotely via CAT5, fiber optic
or Ethernet connection.
CONNECTING THE UNIT TO POWER
Plug the power cable into the power plug located on the rear panel of SPLITMUX, but do not turn the
power on
CONNECTING CONSOLE (MONITOR, kEYBOARD, MOUSE, TOUCH SCREEN, TRACkBALL)
Connect your monitor to the monitor port of SPLITMUX via VGA-DVI cable (analog) or DVI cable (digital)
up to 20 meters. For greater distances use a DVI or VGA extender.
Connect your USB mouse and keyboard to the USB-A ports on the console up to 5 meters. For greater
distances use a KVM or USB extender.
PS/2 mouse and keyboard can be connected to SPLITMUX using a PS/2-USB adaptor.
Connect your touch screen to the DVI-I port and the USB-A port (for calibration see page 44)
Note:
Maximum cable length for video (DVI / VGA) is up to 20 meters. Maximum cable length for USB /
PS2 keyboard and mouse is up to 5 meters. For greater distances SPLITMUX supports most
KVM extenders, video (DVI / VGA) extenders, and USB extenders.
SPLITMUX - Installation and Operation Manual
INSTALLATION

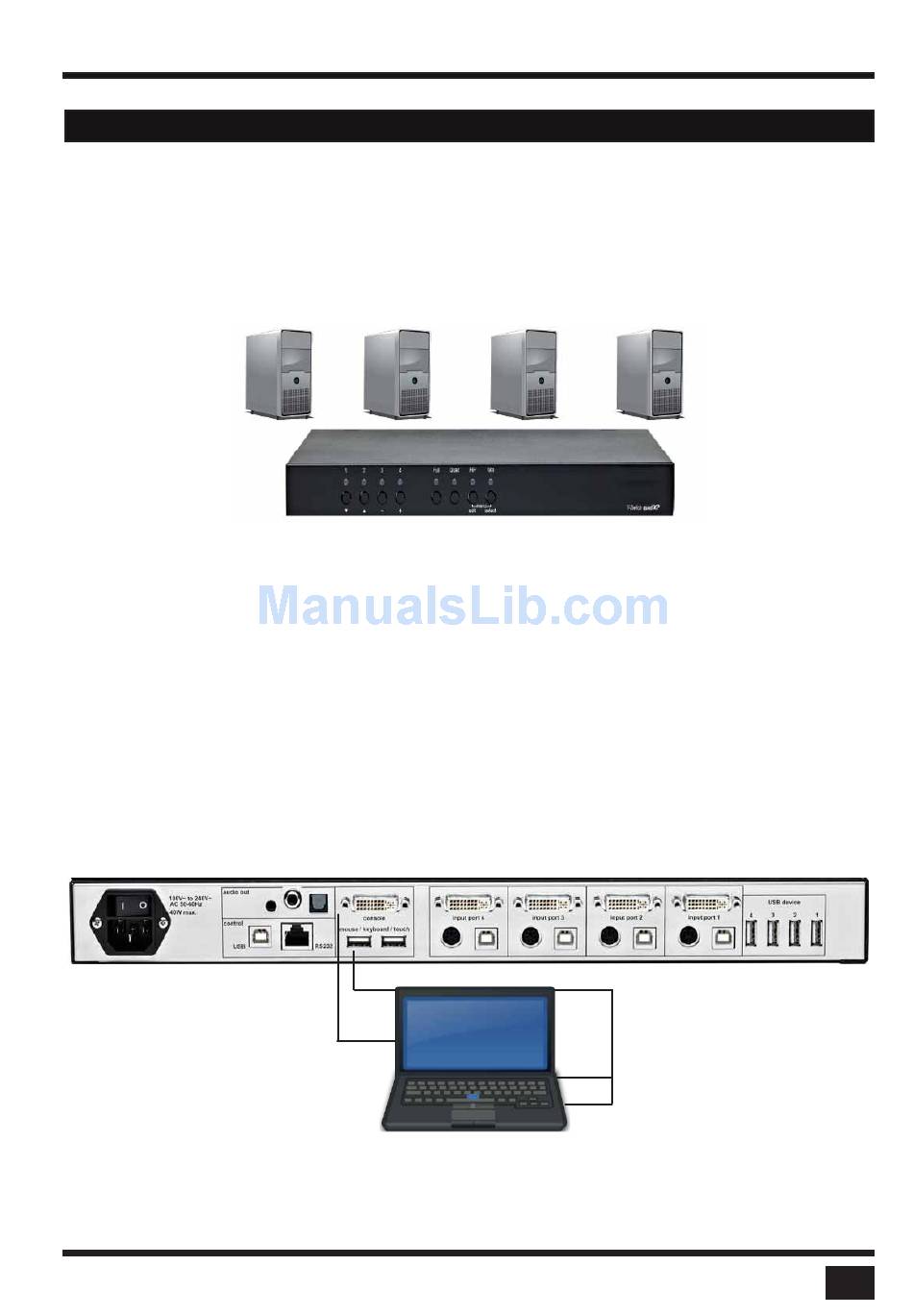

Connect the kVM console
with digital or analog
monitor, USB mouse
and USB keyboard
11
