- Page 1 ® ENVIROMUX Series E-IMD-LCV2(P) Low-Cost Infrared Motion Sensor Installation and Operation Manual MAN238 Rev Date 9/9/2022...
- Page 2 TRADEMARK ENVIROMUX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other brand names and trademarks or registered trademarks are the property of their respective owners. COPYRIGHT Copyright © 2018-2022 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Features ..................................2 Installation ..................................3 Operation..................................5 Alarm Delay ................................. 5 Test ....................................5 Technical Specifications..............................6 Warranty Information............................... 7... -
Page 4: Introduction

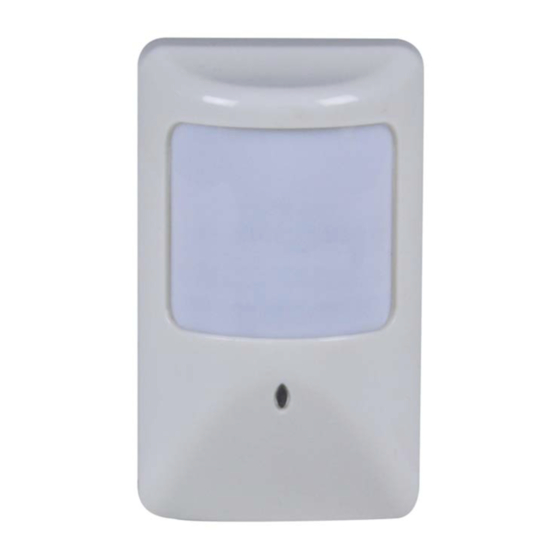

The E-IMD-LCV2 is a low-cost infrared motion sensor with advanced technology in signal processing and provided with high detection ability with protection against false alarms. When used with the ENVIROMUX Series Environment Monitoring Systems it will provide indication and alerts when it detects human motion/intruders that pass through the detection area. -
Page 5: Features
NTI INFRARED MOTION DETECTOR FEATURES ITEM DESCRIPTION Sensor Infrared Motion Sensor Switch Tamper switch - NC Jumper blocks For placement of delay jumper Illuminates Red to indicate when motion is sensed Wire Terminal Block For connection of ENVIROMUX and power wires... -
Page 6: Installation
NTI INFRARED MOTION DETECTOR INSTALLATION 1. Select a location suitable for installation: Stationary surface at least 86 inches (2.2m) above the ground. Away from air movement source (air should be static/stable) Away from a window (no direct sunlight) ... - Page 7 NTI INFRARED MOTION DETECTOR...
-
Page 8: Operation
NTI INFRARED MOTION DETECTOR OPERATION Alarm Delay The E-IMD-LCV2(P) is equipped with three jumper positions to choose from. Place the provided jumper in one of the following positions: 15 MIN- After an initial alert is sent from the first motion sensed, there will be a 15 minute delay before the sensor will react to any additional motion and send another alert. -
Page 9: Technical Specifications
NTI INFRARED MOTION DETECTOR TECHNICAL SPECIFICATIONS Operating voltage 8-15VDC Current Consumption less than 20mA (@12VDC) Operating temperature -10 to 50˚C Operating humidity 0-95% RH non-condensing Mounting mode wall-mounted Mounting height 2.2m Detecting distance Detecting angle 110 degree Alarm output NO/NC (optional) -
Page 10: Warranty Information
NTI INFRARED MOTION DETECTOR WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com...
