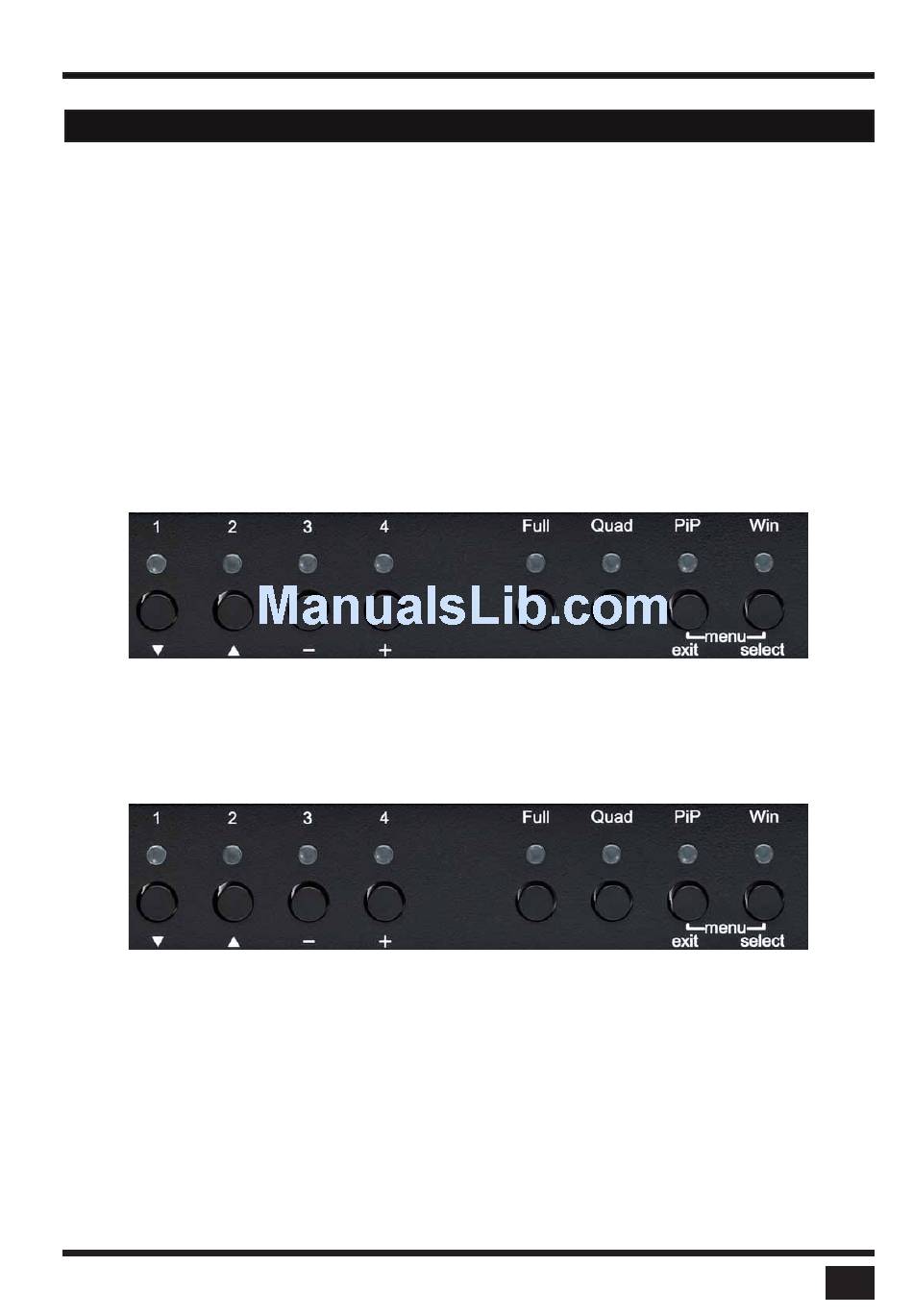

FRONT PANEL - Additional button functions
Setting output resolution to safe output modes
To set output resolution to 640 x 480 pixel @ 60 Hz simultaneously:
Press and hold buttons 1 and 2 for 2 seconds.
Use of this feature is recommended when you cannot use the OSD (on screen display dark or illegible)
because the output resolution setting is not supported by the monitor. After setting the correct output resolution
(640x480@60), you can choose a resolution the connected monitor supports in the OSD.
Alternatively, hold buttons 1 and 2 again to cycle through the following video modes: VGA 640x480@60, SVGA
800x600@60, XGA 1024x768@60, UXGA 1600x1200@60, and the preferred video resolution found in the
monitor EDID.
LEDs 1 to 4 and FULL indicate the selected mode in blue.
Hardware Reset
Press and hold buttons 3 and 4 simultaneously for 5 seconds in order to reset the unit completely (video +
mouse + keyboard)
