NTI ENVIROMUX-AV-LC-E7 Installation Manual

INSTALLATION GUIDE FOR THE
ENVIROMUX-AV-LC-E7
INTRODUCTION
The NTI ENVIROMUX-AV-LC Air Velocity Sensor monitors air flow rate when connected to an ENVIROMUX-16D, ENVIROMUX-
5D or ENVIROMUX-2D Enterprise Environment Monitoring System (SYSTEM). When connected to a SYSTEM via the 7 foot
cable provided, the air flow rate can be monitored and the SYSTEM can be configured to alert users as to variations in that
movement.
Features:
Reliable sensor for measurement of air velocity.
Flow range: 0-82 ft/s (0-25 m/s).
Accuracy: ±1.6 ft/s (±0.5 m/s) from 0 to 49 ft/s @21°C (0 to 15 m/s).
Includes mounting hardware.
Operating temperature: 32 to 158°F (0 to 70°C).
Probe dimensions: 6.3x0.6 inches (160x15 mm).
Probe material: PA 2200.
Cable length of 7 feet, but can be extended to 1000 feet (use NTI# RJ45-FF - included)
Powered by ENVIROMUX-2D/5D/16D.
Compatible with ENVIROMUX-2D/5D/16D.
o ENVIROMUX-2D: only compatible with Rev C units (features two power inputs).
Regulatory approvals: CE, RoHS.
Compatible with ENVIROMUX-FSC Fiber Converter/Extender.
o Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
INSTALLATION

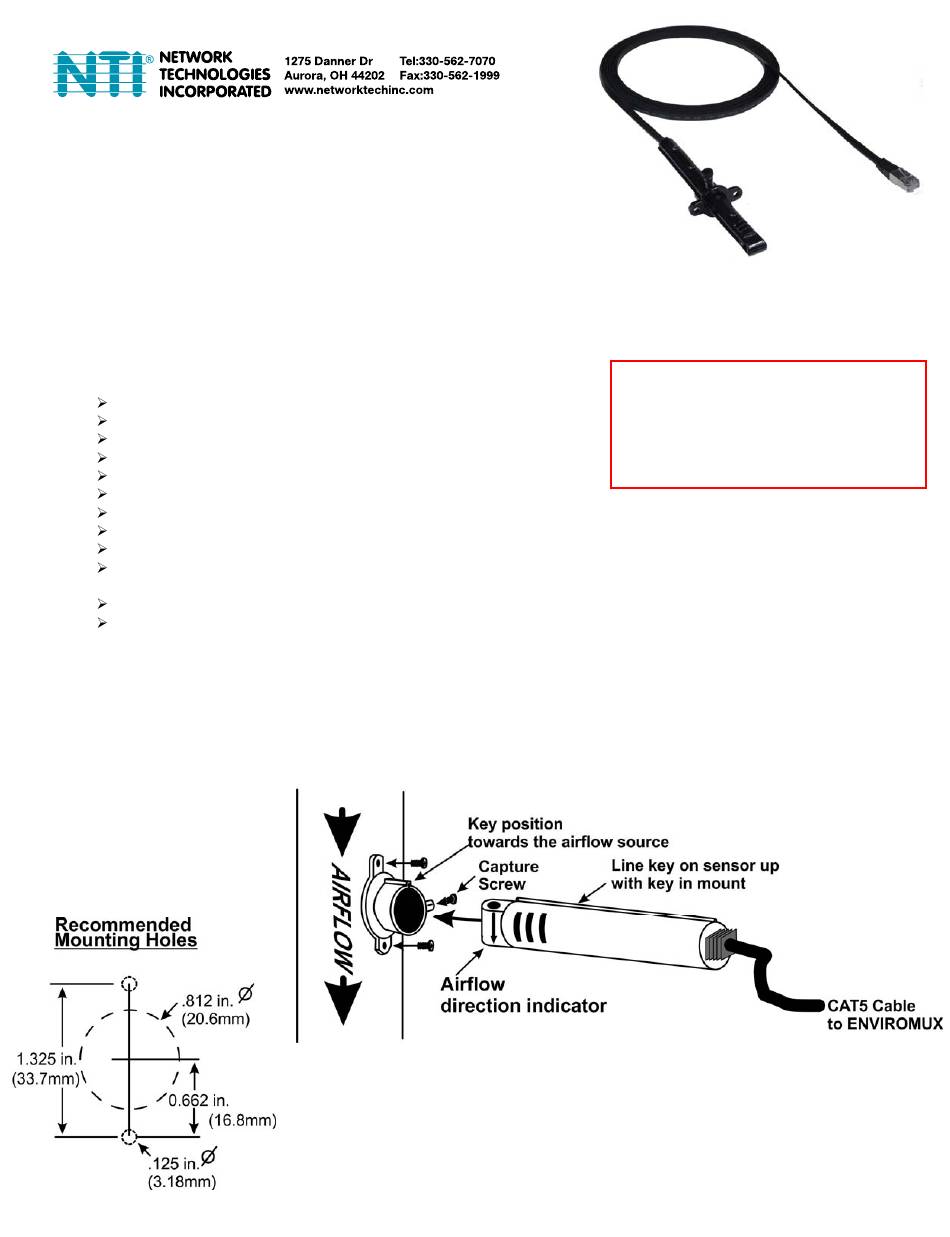

ENVIROMUX-AV-LC can be mounted using the mounting adapter provided.
mounting screws in line with the air flow. The key should be positioned towards the source of the airflow.
Note: The ENVIROMUX-xD must be
running firmware version 2.10 or later
in order to use the ENVIROMUX-AV-
LC with it. Refer to the
ENVIROMUX-xD manual for firmware
upgrade instructions as needed.
When mounting the adapter, be sure to align the
1
