ON SCREEN DISPLAY
OSD - CONSOLE - MULTI MONITOR
MULTI MONITOR

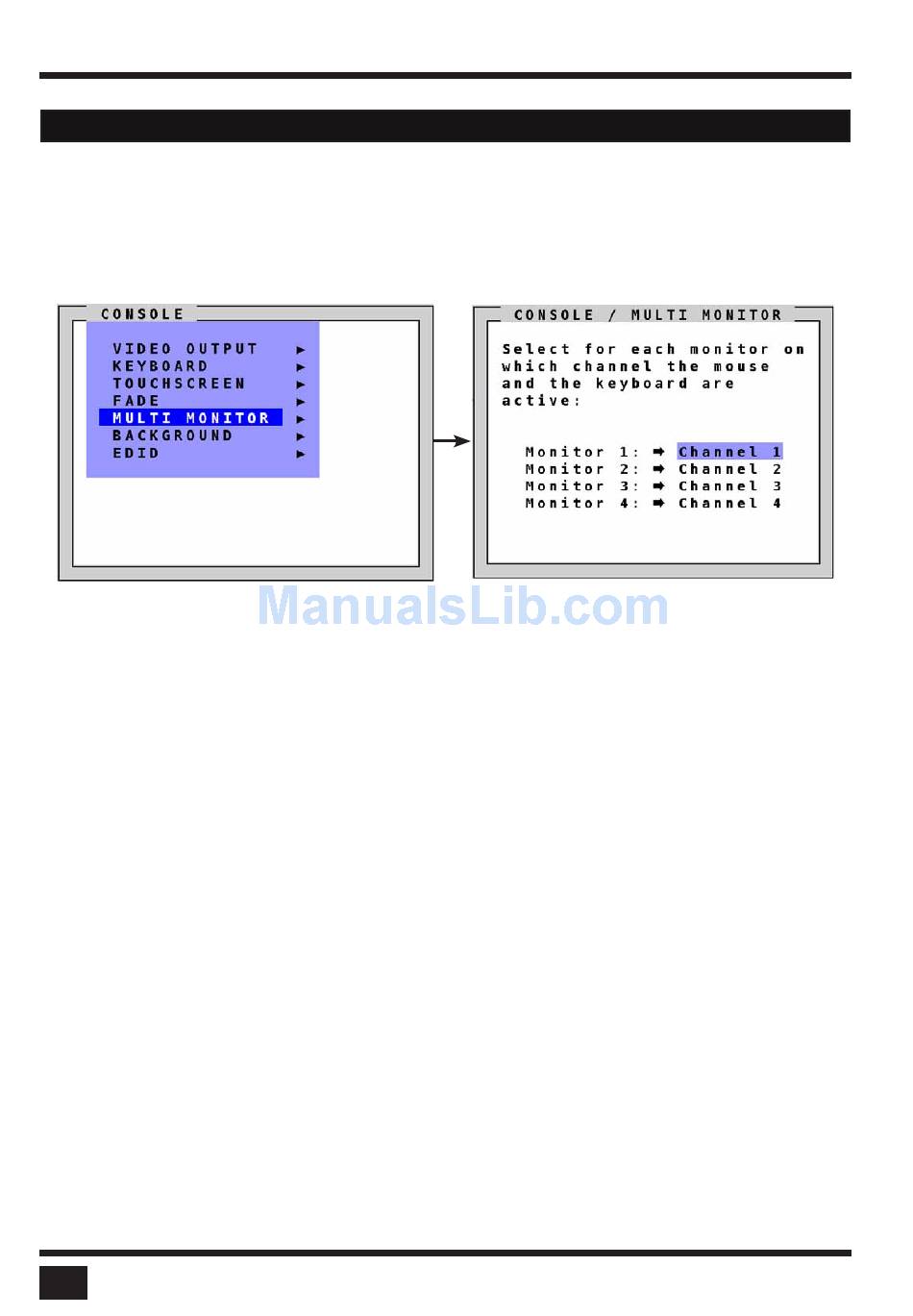

Use arrow keys to navigate in the CONSOLE menu to the entry MULTI MONITOR and press ENTER/SELECT
to open the MULTI MONITOR window.
Multi Monitor is used if computers with multiple video output are connected to SPLITMUX but only one
keyboard and mouse to operate the computer. If you use graphics cards with multiple video outputs, you must
assign the computer's mouse and keyboard to the corresponding video output (channels 1-4).
Example:
If a computer with quad-head graphics card is connected to SPLITMUX, and keyboard and mouse are
connected to channel 1, you must assign console „channel 1" to all video channels („Monitor 1 - 4").
48
SPLITMUX - Installation and Operation Manual
