- Page 1 ® ENVIROMUX Series E-CO2-LC Carbon Dioxide Sensor Installation and Operation Manual MAN426 Rev Date 10/04/2022...
- Page 2 TRADEMARK ENVIROMUX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other brand names and trademarks or registered trademarks are the property of their respective owners. COPYRIGHT Copyright © 2022 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
- Page 3 TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Wiring ....................................2 Technical Specifications..............................3 Warranty Information............................... 3...

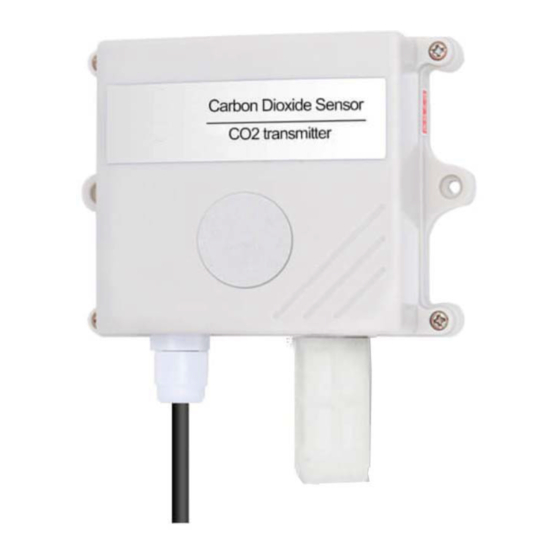

- Page 4 NTI ENVIROMUX Low Cost Carbon Dioxide Sensor INTRODUCTION E-CO2-LC carbon dioxide sensor adopts a new type of infrared verification technology for CO concentration measurement, and the response rapid and sensitive. This carbon dioxide sensor includes an ABS waterproof shell. It is a professional industrial CO sensor and supports 0-5VDC output.
- Page 5 NTI ENVIROMUX Low Cost Carbon Dioxide Sensor WIRING Purpose Color Signal Brown Power- Positive Power Supply Black Power-Negative Blue Signal- Positive CO2 Signal Green Signal- Negative...
- Page 6 NTI ENVIROMUX Low Cost Carbon Dioxide Sensor TECHNICAL SPECIFICATIONS Detection Range 0-5000 ppm Accuracy ±50ppm+3% Full scale) at 25℃ Stability <2%F-S Non-linearity <1%F-S Response time 90% step change is generally less than 90S Data update time System warm-up time 2 minutes (ready to function/; 10 minutes (maximum accuracy)
