NTI SPLITMUX-DVI-4RT Installation And Operation Manual page 41

ON SCREEN DISPLAY
OSD - MODE - CURRENT/START - PiP
PIP Display Modes (continued)

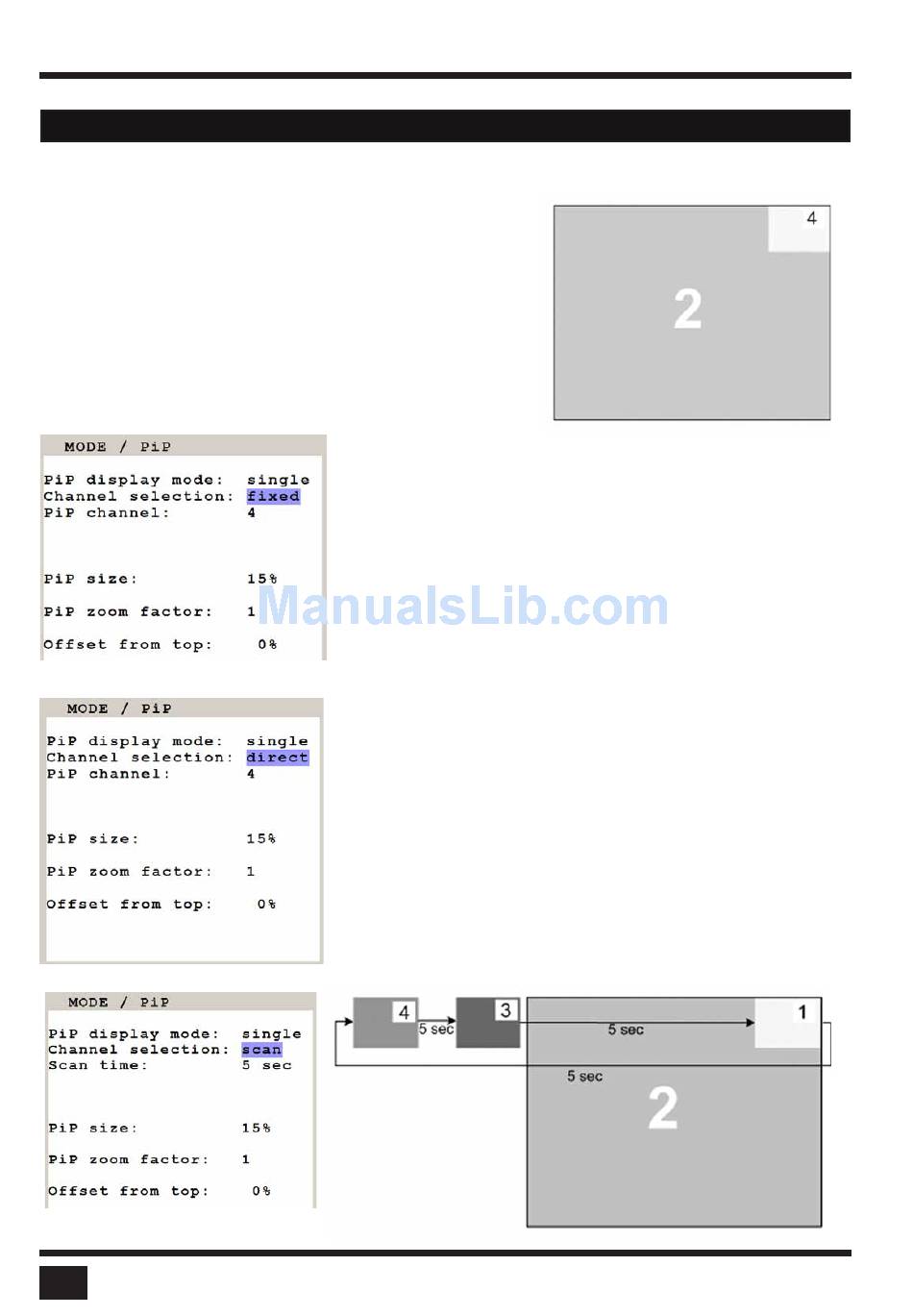

PIP display mode single:
One PiP image is displayed. You can choose between different
display modes:
36
SPLITMUX - Installation and Operation Manual
Single fixed:
One channel is selected to be displayed as permanent PiP
image. Only the active channel (full image) can be switched.
Press front panel buttons 1, 2, 3, or 4 to switch the full image.
Single direct:
One channel is selected to be displayed as permanent full
image (active channel).
Only the PiP can be switched. Press front panel buttons 1, 2,
3, or 4 to switch the full image.
Single scan:
Within a PiP image, the three other video sources are displayed
one after the other; the delay can be set to between one and nine
seconds.
