ENVIROMUX
Noise Level Sensor
Installation Instruction

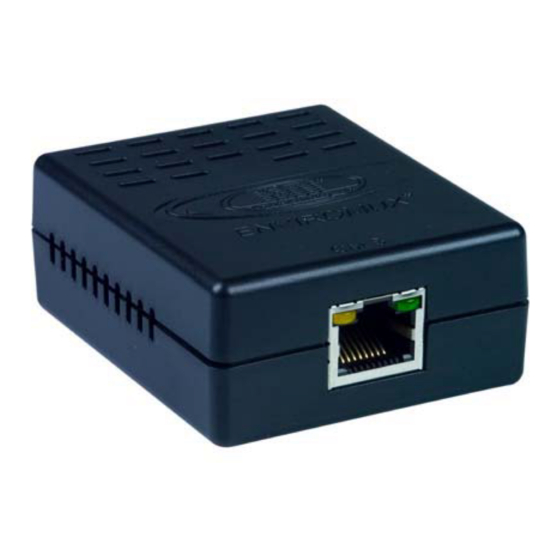

The E-NLS noise level sensor that can be used to detect sounds and report occurrences through the user interface of an E-2D,-5D or -
16D Enterprise Environment Monitoring System (SYSTEM). Connect the sensor to an available RJ45 Sensor port on a SYSTEM and
configure the SYSTEM to report and send alerts when noise levels exceed configurable parameters.
Installation
1.
Mount the E-NLS where a measurement of sound levels is desired.
the mounting slot is against the mounting surface, and for best results, mount the
E-NLS against a wall.
2.
Plug a CAT5 patch cable, 18-24AWG up to 1000 feet in length, between the RJ45 port on the E-NLS and an available RJ45
Sensor port on the SYSTEM.
3.
Go to the Summary Page (under Monitoring) in the web interface.
4.
Click on the Noise Level Sensor or click on "View" for that sensor.
1275 Danner Dr
Tel:330-562-7070
Fax:330-562-1999
Aurora, OH 44202
www.networktechinc.com
®
Series
E-NLS
Click here
Make sure
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NTI ENVIROMUX Series
Summary of Contents for NTI ENVIROMUX Series
- Page 1 NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Fax:330-562-1999 Aurora, OH 44202 INCORPORATED www.networktechinc.com ® ENVIROMUX Series E-NLS Noise Level Sensor Installation Instruction The E-NLS noise level sensor that can be used to detect sounds and report occurrences through the user interface of an E-2D,-5D or - 16D Enterprise Environment Monitoring System (SYSTEM).
- Page 2 4. The Status page for the noise level sensor should appear. 5. Click on the “Configure” button and enter desired values in the page that pops-up. See the SYSTEM manual for your respective unit for description of all field values. Specifications: ...
