ON SCREEN DISPLAY
OSD - VIDEO - ROTATION

ROTATION

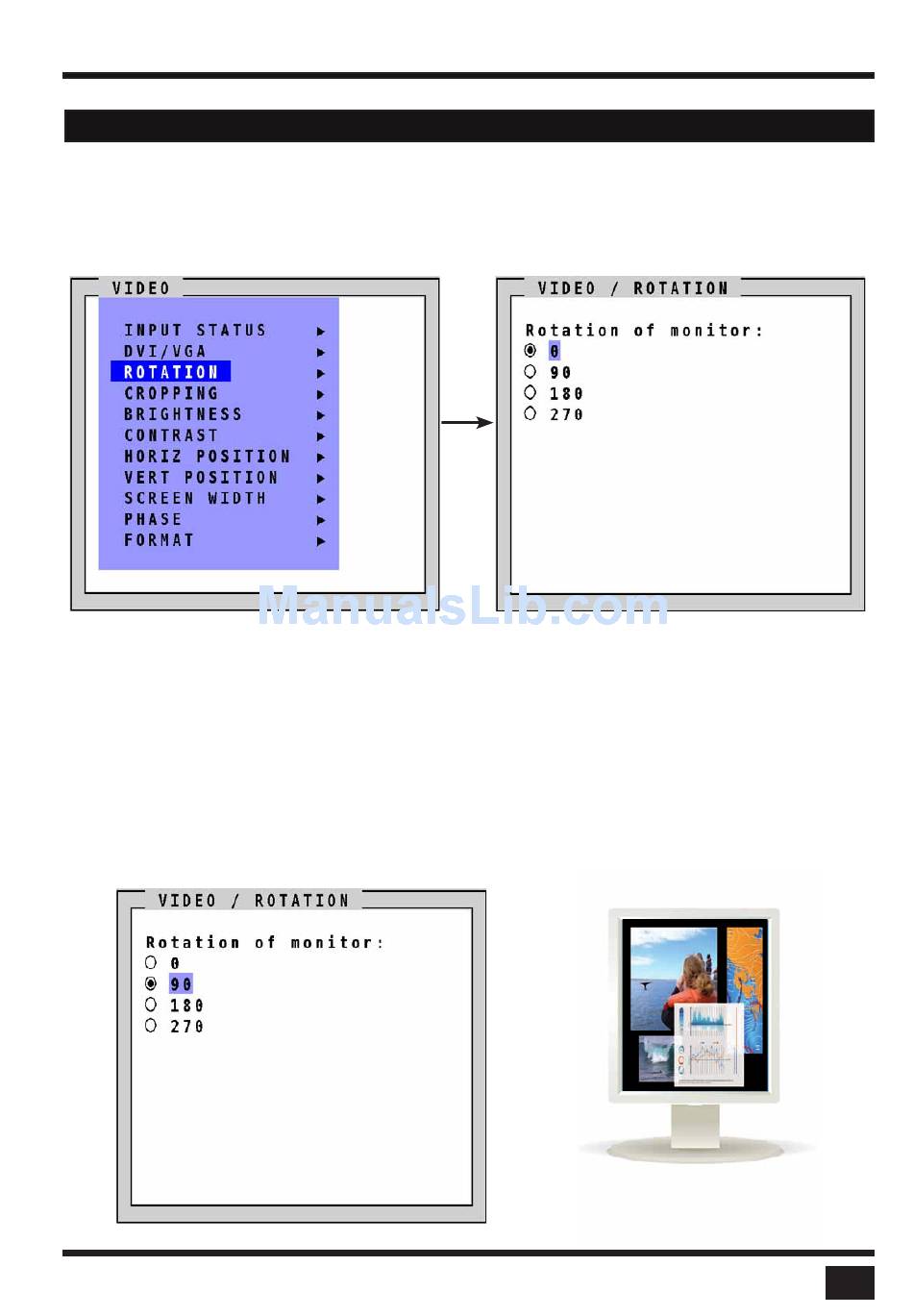

Use arrow keys to navigate in the VIDEO menu to the entry ROTATION and press ENTER/SELECT to open the
ROTATION window.
Select the degrees to which you would like to rotate your display. Choose from 0. 90, 180 and 270. Once the
rotation degrees have been selected, all of the channel are rotated to the same degree.
Note: Once the degrees have been chosen, it may take a few seconds for the display to rotate.
Once the degrees have been chosen, it may take a few seconds for the display to rotate.
Rotation limitation at 90° and 270°: If the channels overlap, the monitor display should have a total of lines no
higher than 2028. If the aspect ratio is not locked in Win mode, size reduction and enlargement cannot both be
used simultaneously for each channel. There may be further restrictions not known at the time print.
Example with 0 degree setting:
53
SPLITMUX - Installation and Operation Manual
