Buttons

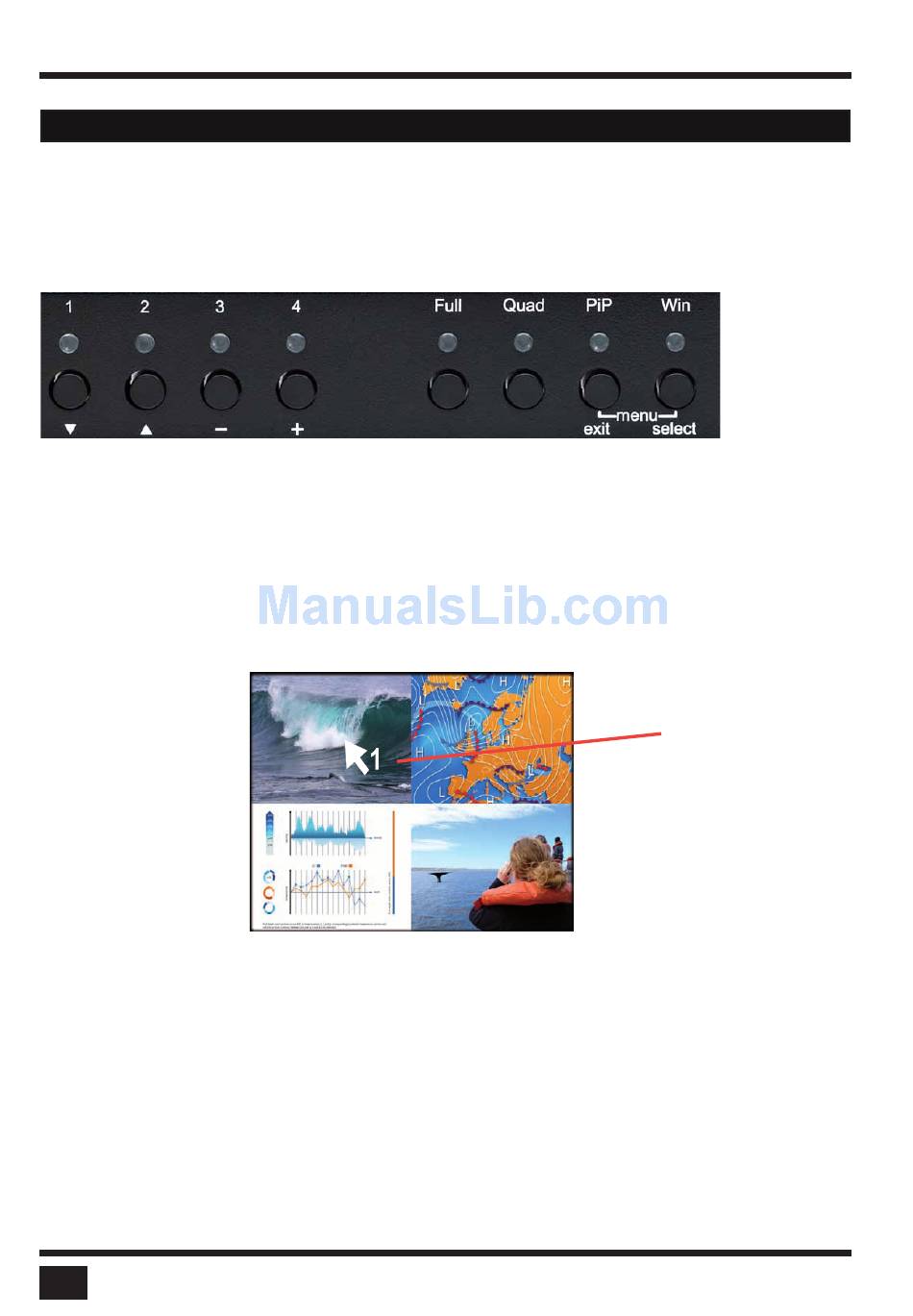

- Buttons 1 to 4:
- Full button:
- Quad button:
- PiP button:
- Win button:
6
SPLITMUX - Installation and Operation Manual
These buttons activate the corresponding channel (computer port).
Press to switch to Fullscreen mode.
Press to switch to Quad mode.
Press to switch to picture in picture mode (PiP).
Press to switch to Win mode.
You can also select the active channel using hotkey and the arrow keys.
The selection window closes once the channel selection timeout period has
expired.
The channel selection timeout is configured in the OSD under
SYSTEM > QUAD MODE.
Use the "Time out of channel selection:" menu item to define how long the
selector is to be displayed.
Selector
