OSD - MODE - CURRENT/START - PiP
PIP Display Modes
SPLITMUX offers the following PiP modes:

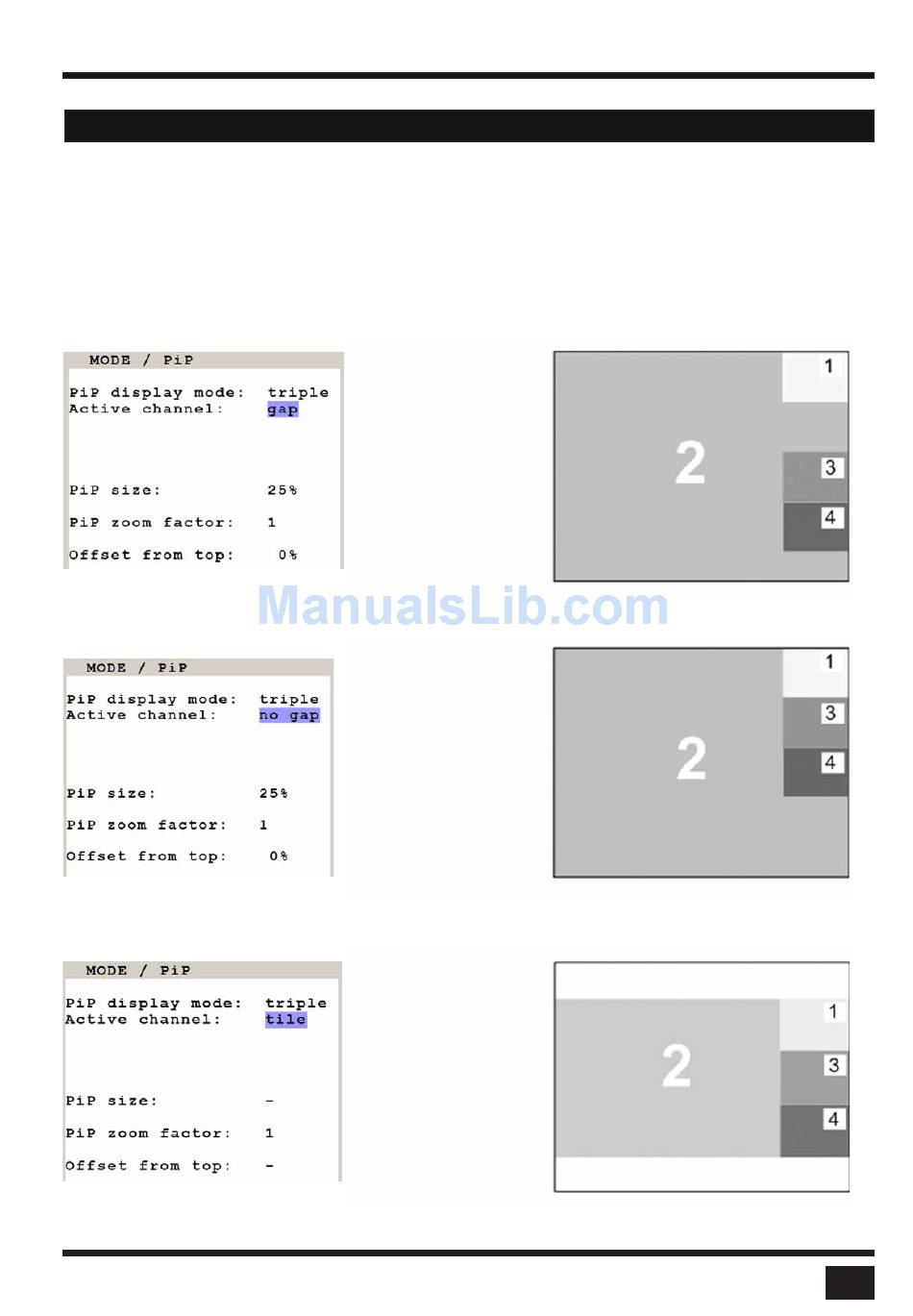

PIP display mode triple:
SPLITMUX - Installation and Operation Manual
All other video sources are displayed (three PiP images)
Triple gap:
PiP images are displayed
with a gap in place of the
active channel.
Triple no gap:
PiP images are displayed
without a gap.
Triple tile:
The size of the main
image and the PiP images
is optimized so that the
main image and the PiP
images are shown as
large as possible without
overlapping.
