ON SCREEN DISPLAY
OSD - COMPUTER - CHANNEL MAPPING

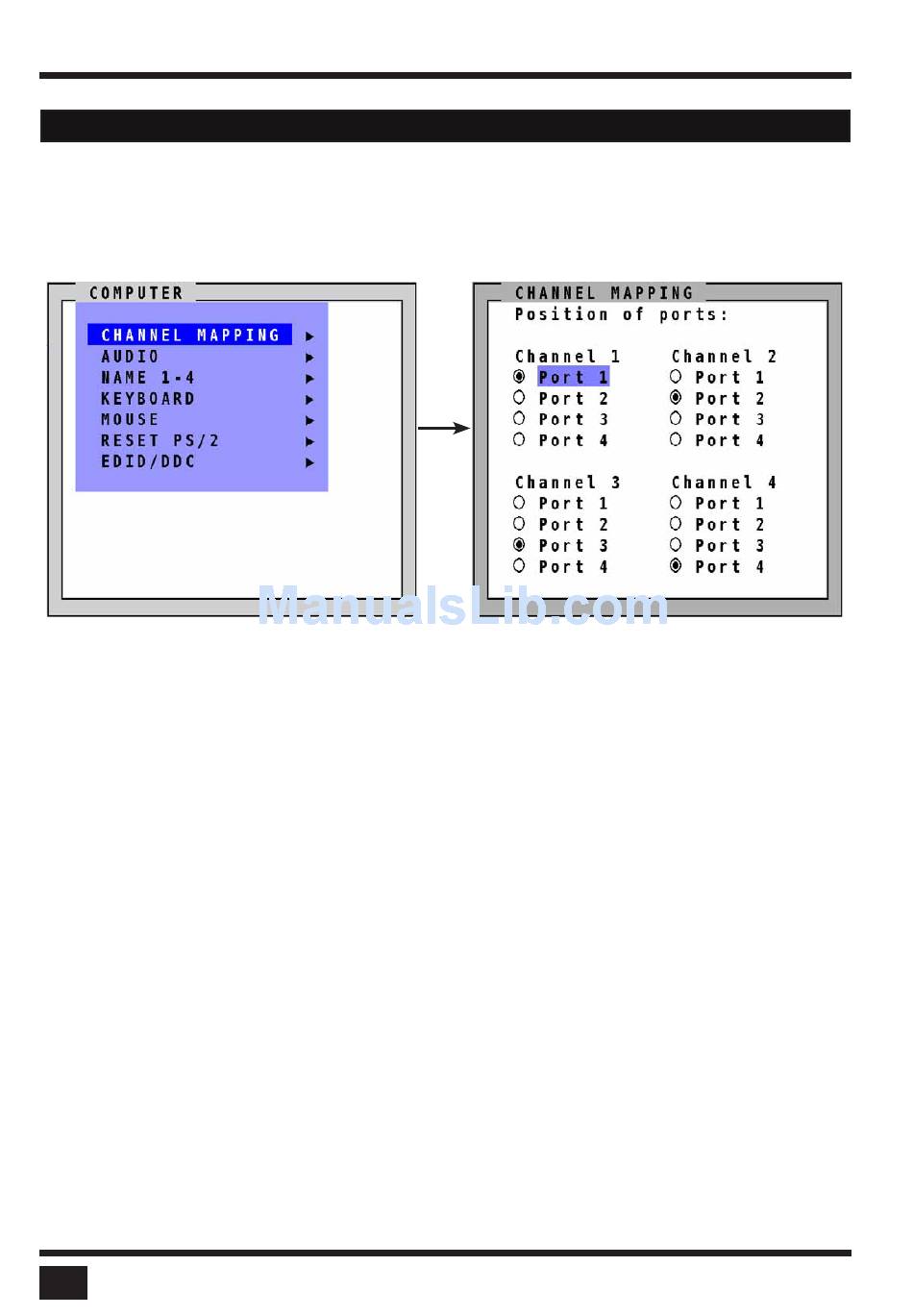

CHANNEL MAPPING
Use arrow keys to navigate in the COMPUTER menu to the entry CHANNEL MAPPING and press ENTER/
SELECT to open the CHANNEL MAPPING window.
In the CHANNEL MAPPING menu, assignment between physical input ports and logical channels can be
changed. This can be useful, for instance, if computer needs to be shown on another position on the quad
screen without having to swap the connectors at the inputs.
Use arrow and "+/-" keys to navigate to the physical port that you would like to connect to the channel
mentioned on the upper line. Press enter / select to change the connection.
60
SPLITMUX - Installation and Operation Manual
