SPLITMUX Quad Screen Video Splitter

INSTALLATION

1. Connect each of the HDMI or DVI video sources to the ports on the SPLITMUX marked "HDMI Inx" (x = 1-4).
2. Connect the display to the port marked "HDMI OUT".
3. Connect the power supply to the power jack and plug it in. The LED on the SPLITMUX will illuminate red (standby).
4. Press the switch on the front to power the SPLITMUX ON. In approximately 20 seconds the LED will change from red to
green (ON). Within 20 more seconds the SPLITMUX will be ready to use.
5. For keyboard control of the OSD menu of the SPLITMUX, connect a USB keyboard to the USB type A ports labeled
"KYBD/MOUSE" on the SPLITMUX. On models supporting transparent USB device connection (SPLITMUX-USBHD-4RT), the
keyboard and mouse (if connected) attached to these ports will also control the keyboard and mouse functions on any connected
PC. (See Figure 9)

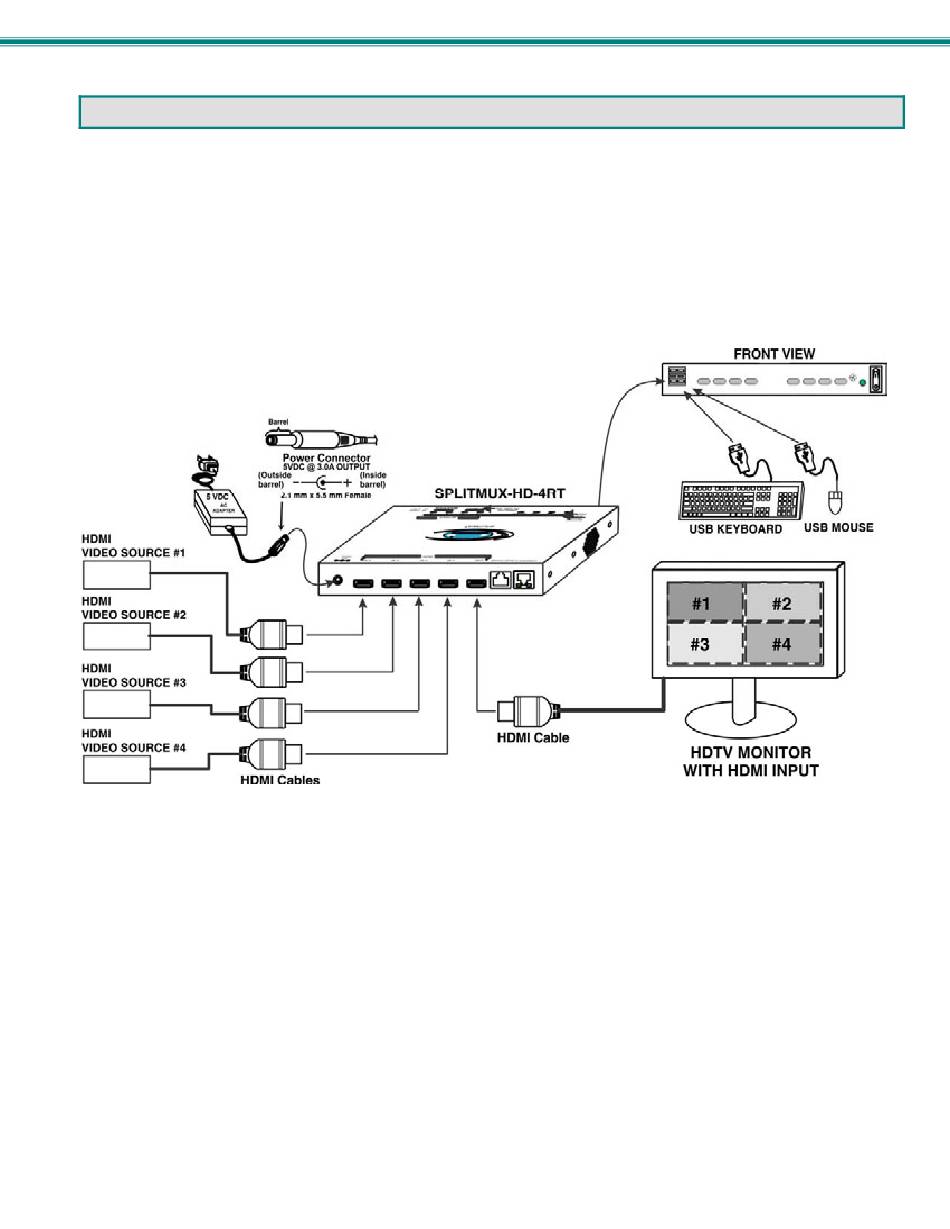

Figure 9- Video Source/Display Connections
