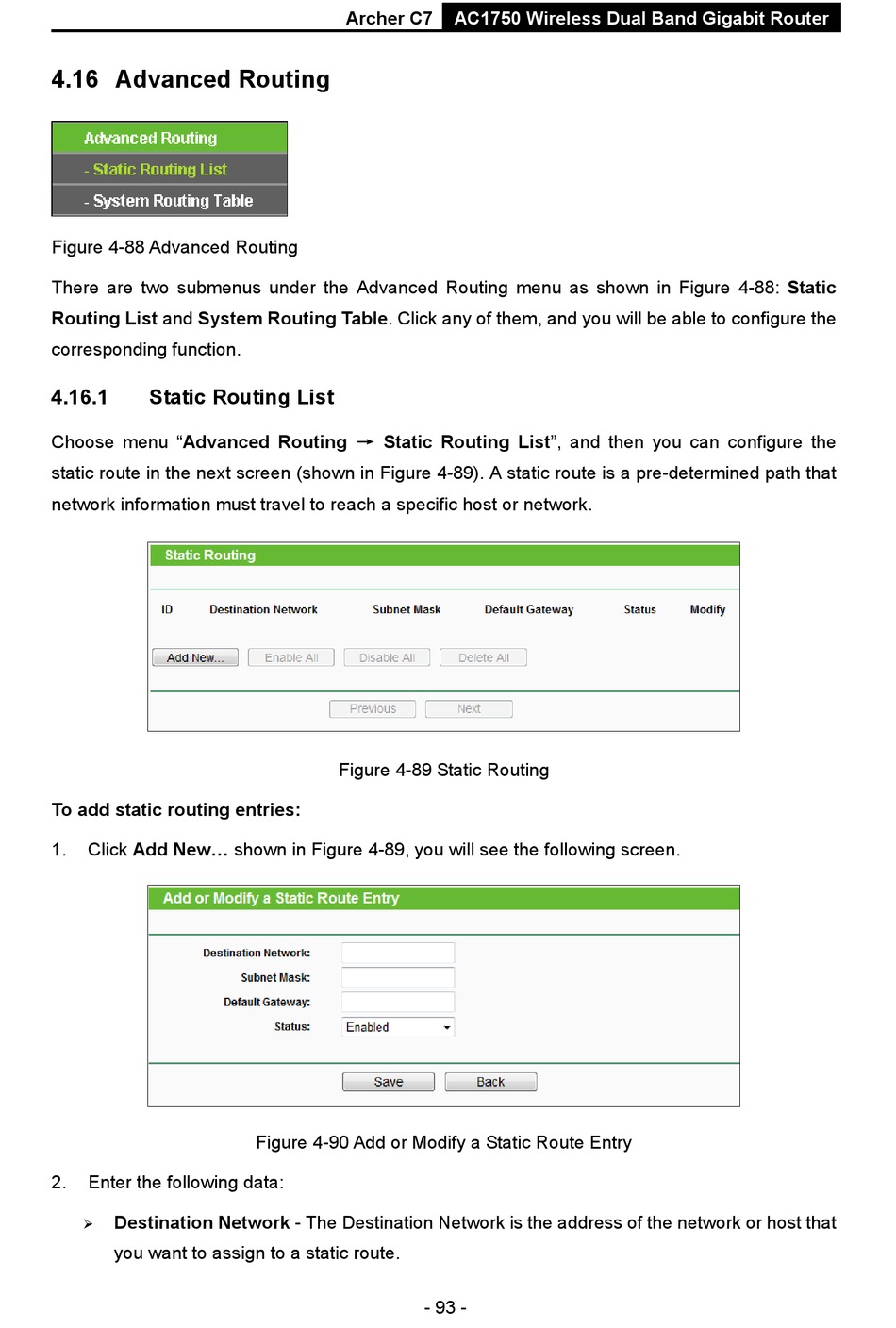

4.16 Advanced Routing
Figure 4-88 Advanced Routing
There are two submenus under the Advanced Routing menu as shown in Figure 4-88: Static
Routing List and System Routing Table. Click any of them, and you will be able to configure the
corresponding function.
4.16.1
Static Routing List
Choose menu "Advanced Routing → Static Routing List", and then you can configure the
static route in the next screen (shown in Figure 4-89). A static route is a pre-determined path that
network information must travel to reach a specific host or network.
To add static routing entries:
1.
Click Add New... shown in Figure 4-89, you will see the following screen.
2.
Enter the following data:
Destination Network - The Destination Network is the address of the network or host that
you want to assign to a static route.
Archer C7
Figure 4-89 Static Routing
Figure 4-90 Add or Modify a Static Route Entry
AC1750 Wireless Dual Band Gigabit Router
- 93 -
