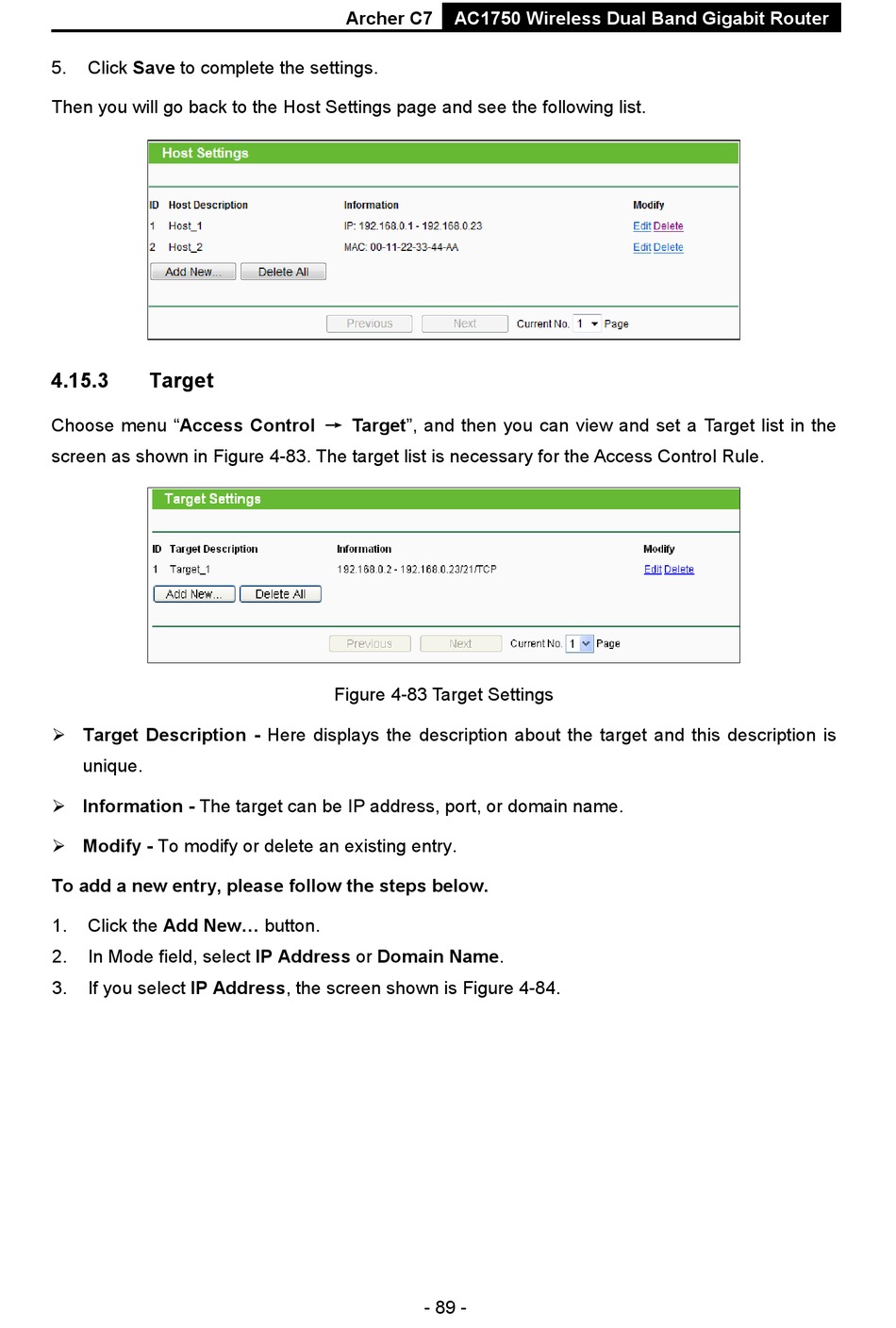

Target - TP-Link Archer C7 AC1750 User Manual

5. Click Save to complete the settings.
Then you will go back to the Host Settings page and see the following list.
4.15.3

Target

Choose menu "Access Control → Target", and then you can view and set a Target list in the
screen as shown in Figure 4-83. The target list is necessary for the Access Control Rule.
 Target Description - Here displays the description about the target and this description is
unique.
 Information - The target can be IP address, port, or domain name.
 Modify - To modify or delete an existing entry.
To add a new entry, please follow the steps below.
1. Click the Add New... button.
2. In Mode field, select IP Address or Domain Name.
3. If you select IP Address, the screen shown is Figure 4-84.
Archer C7 AC1750 Wireless Dual Band Gigabit Router
Figure 4-83 Target Settings
- 89 -
