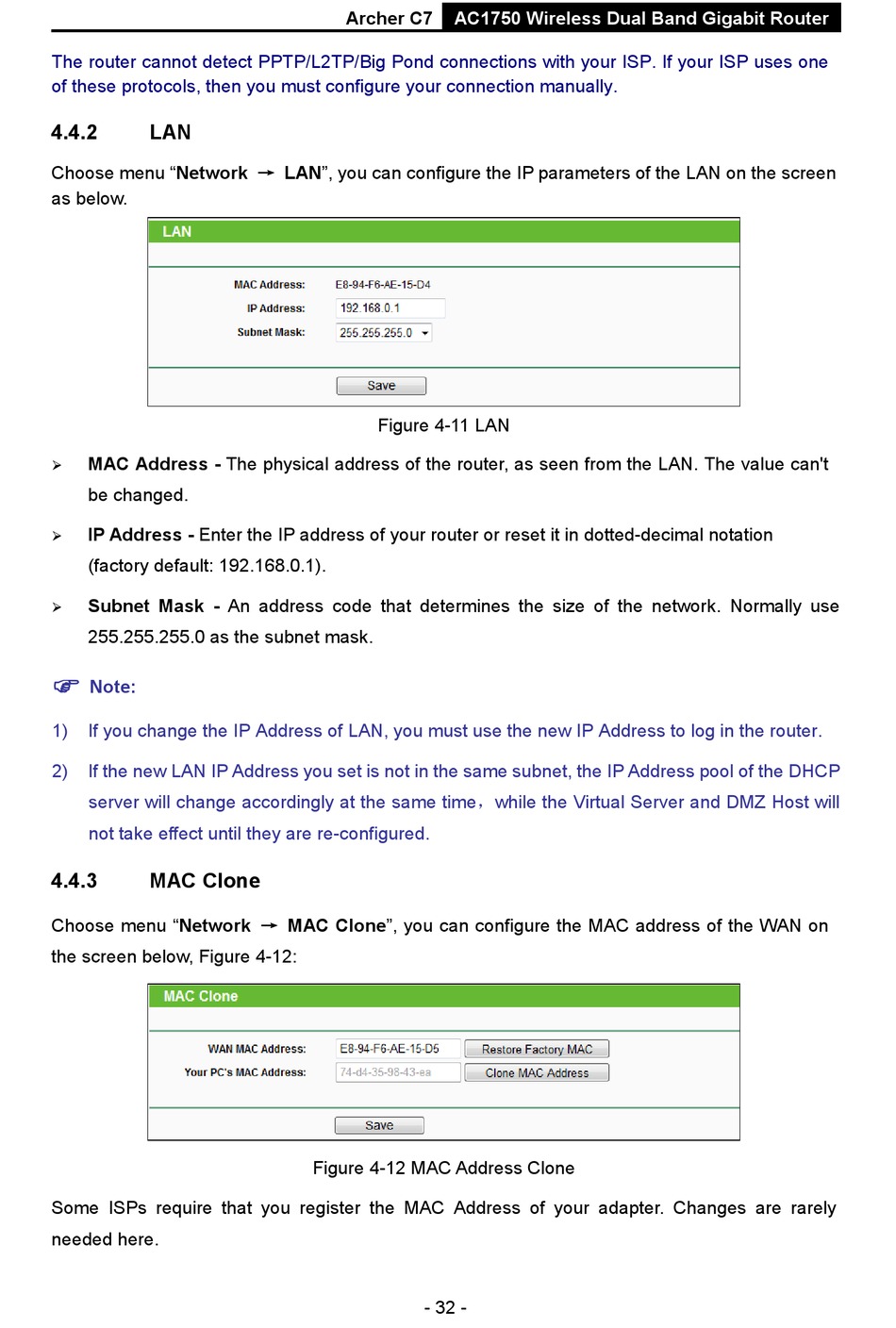

Lan; Mac Clone - TP-Link Archer C7 AC1750 User Manual

The router cannot detect PPTP/L2TP/Big Pond connections with your ISP. If your ISP uses one
of these protocols, then you must configure your connection manually.
4.4.2

LAN

Choose menu "Network → LAN", you can configure the IP parameters of the LAN on the screen
as below.
MAC Address - The physical address of the router, as seen from the LAN. The value can't

be changed.
IP Address - Enter the IP address of your router or reset it in dotted-decimal notation

(factory default: 192.168.0.1).
Subnet Mask - An address code that determines the size of the network. Normally use

255.255.255.0 as the subnet mask.

Note:
1) If you change the IP Address of LAN, you must use the new IP Address to log in the router.
2) If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP
server will change accordingly at the same time，while the Virtual Server and DMZ Host will
not take effect until they are re-configured.
4.4.3

MAC Clone

Choose menu "Network → MAC Clone", you can configure the MAC address of the WAN on
the screen below, Figure 4-12:
Some ISPs require that you register the MAC Address of your adapter. Changes are rarely
needed here.
Archer C7 AC1750 Wireless Dual Band Gigabit Router
Figure 4-11 LAN
Figure 4-12 MAC Address Clone
- 32 -
