Description - This is the information about the rules such as address range.

Egress bandwidth - This field displays the max and mix upload bandwidth through the

Internet port, the default is 0.
Ingress bandwidth - This field displays the max and mix download bandwidth through the

Internet port, the default is 0.
Enable - This displays the status of the rule.

Modify - Click Modify to edit the rule. Click Delete to delete the rule.

To add/modify a Bandwidth Control rule, follow the steps below.
1. Click Add New... shown in Figure 4-94, you will see a new screen shown in Figure 4-95.
2. Enter the information like the screen shown below.
3. Click the Save button.
4.18 IP & MAC Binding
Figure 4-96 the IP & MAC Binding menu
Archer C7

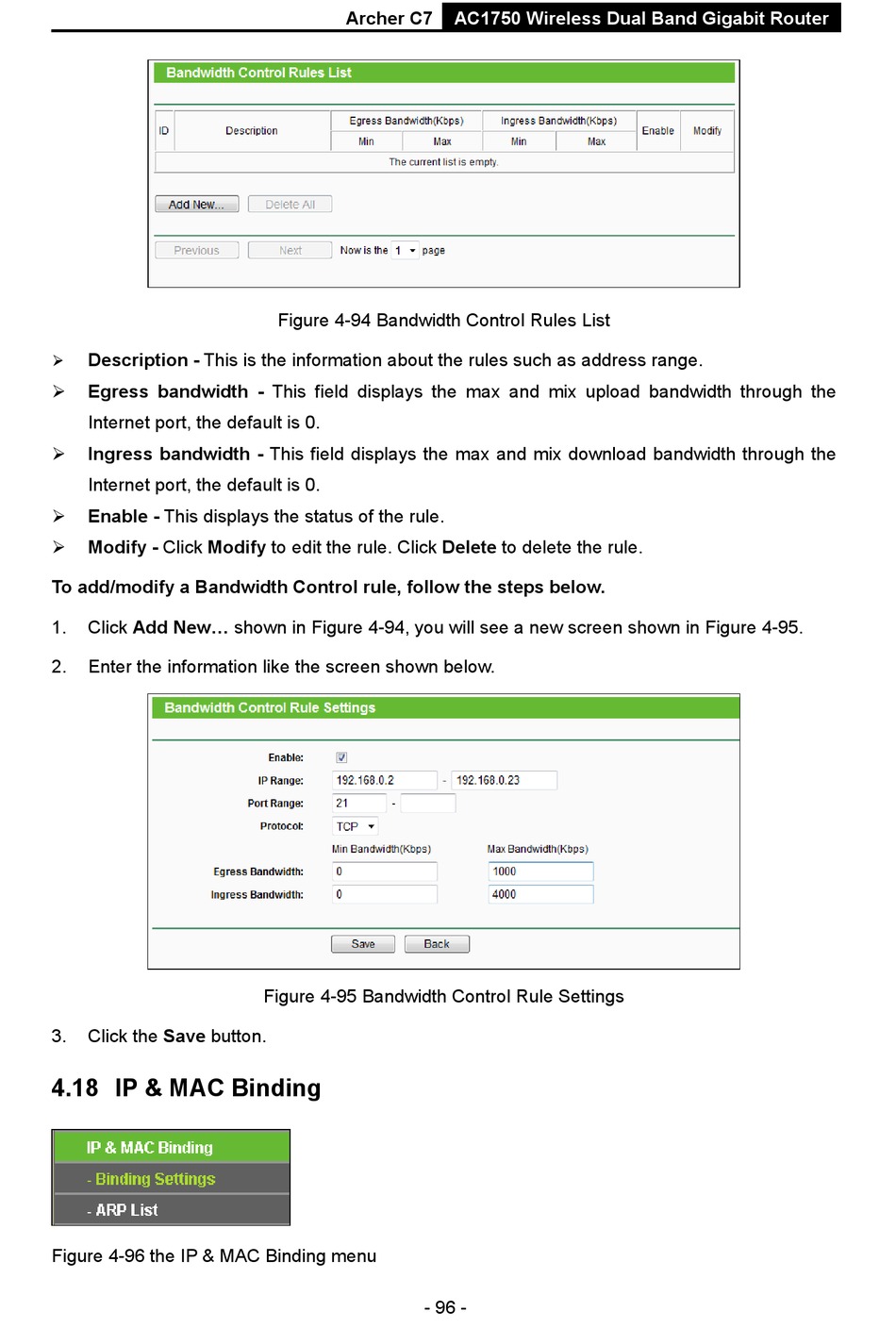

Figure 4-94 Bandwidth Control Rules List
Figure 4-95 Bandwidth Control Rule Settings
- 96 -
AC1750 Wireless Dual Band Gigabit Router
