In Target Description field, create a unique description for the target (e.g. Target_1).
1)
2) In IP Address field, enter the IP address of the target.
3) Select a common service from Common Service Port drop-down list, so that the Target
Port will be automatically filled. If the Common Service Port drop-down list doesn't
have the service you want, specify the Target Port manually.
4) In Protocol field, select TCP, UDP, ICMP or ALL from the drop-down list.
4. If you select Domain Name, the screen shown is Figure 4-85.
1) In Target Description field, create a unique description for the target (e.g. Target_1).
2) In Domain Name field, enter the domain name, either the full name or the keywords (for
example, google) in the blank. Any domain name with keywords in it (www.google.com,
www.google.cn) will be blocked or allowed. You can enter 4 domain names.
5. Click the Save button.
Click the Delete All button to delete all the entries in the table.
Click the Next button to go to the next page, or click the Previous button to return to the previous
page.
Archer C7

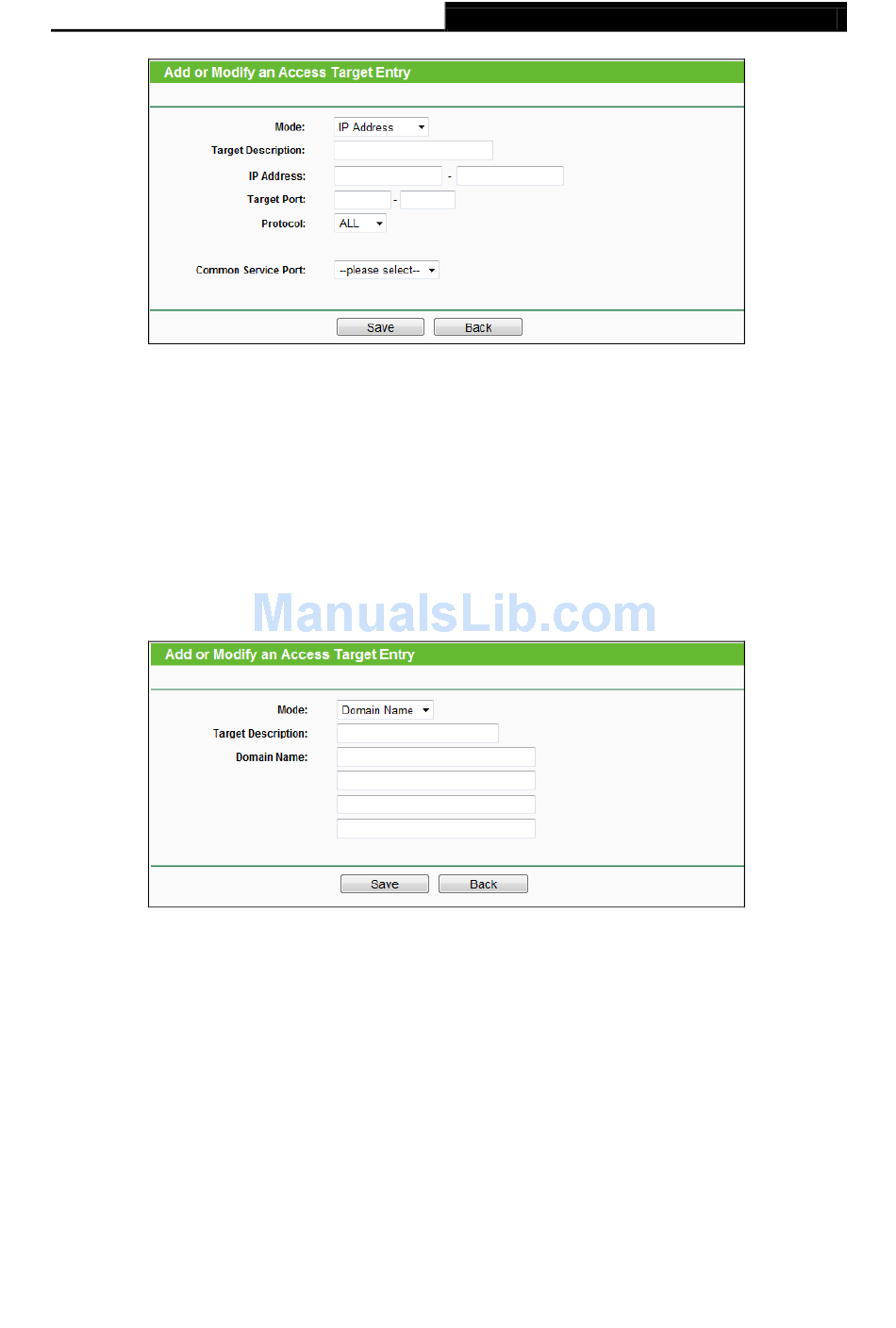

Figure 4-84 Add or Modify an Access Target Entry
Figure 4-85 Add or Modify an Access Target Entry
