Step 2: Press and hold the WPS button of the client device directly.
Step 3: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup
process.
Step 4: When the WPS LED is on, the client device has successfully connected to the router.
II. Enter the client device's PIN on the router
Use this method if your client device does not have the WPS button, but has a Wi-Fi Protected
Setup PIN number.
Step 1: Keep the default WPS status as Enabled and click the Add device button in Figure 4-33,
then Figure 4-36 will appear.
Step 2: Enter the PIN number from the client device in the field on the above WPS screen. Then
click Connect button.
Step 3: "Connect successfully" will appear on the screen of Figure 4-36, which means the client
device has successfully connected to the router.
III. Enter the router's PIN on your client device
Use this method if your client device asks for the router's PIN number.
Step 1: On the client device, enter the PIN number listed on the router's Wi-Fi Protected Setup
screen, shown in Figure 4-33 (It is also labeled on the bottom of the router).
Step 2: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup
process.
Step 3: When the WPS LED is on, the client device has successfully connected to the router.
Archer C7 AC1750 Wireless Dual Band Gigabit Router

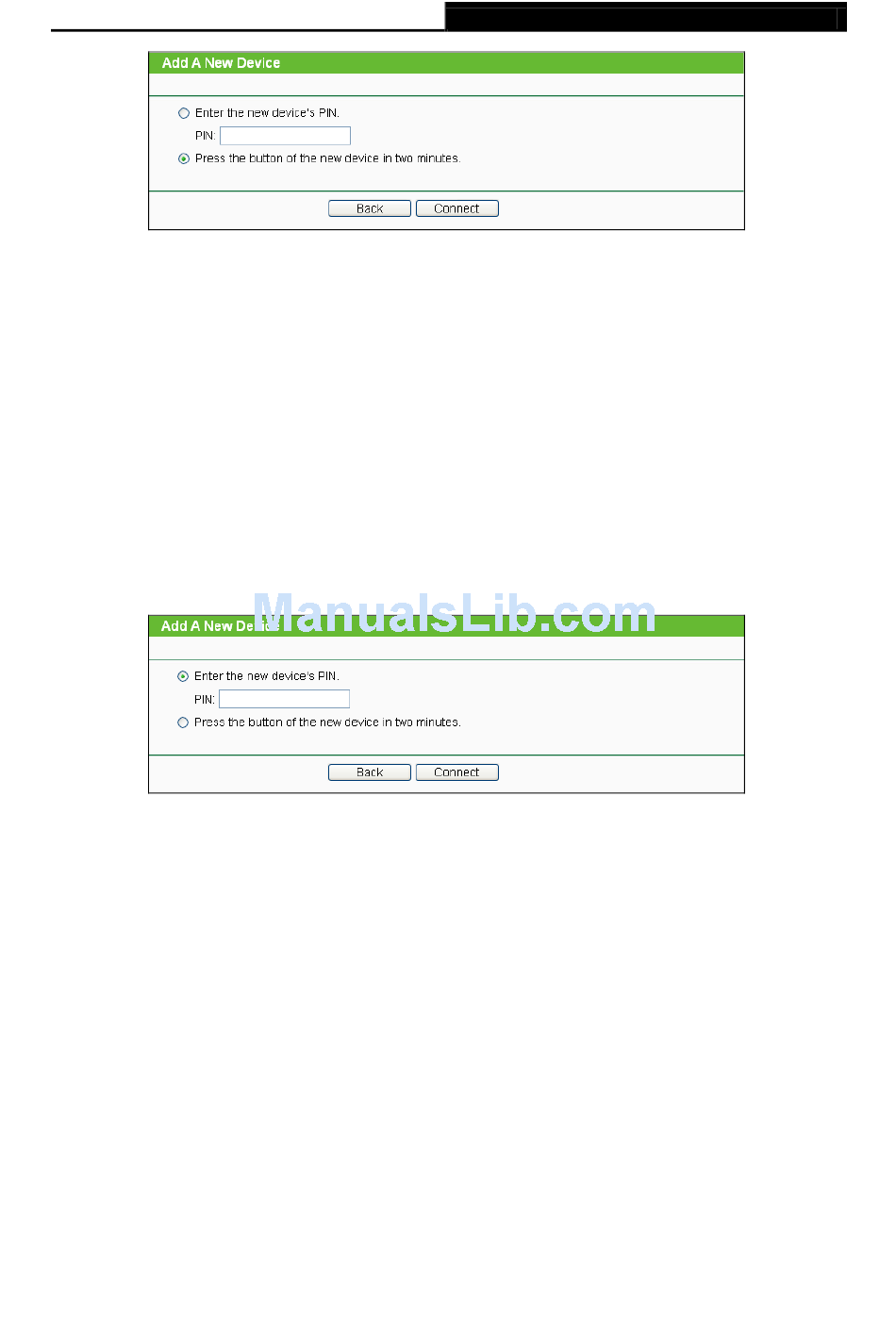

Figure 4-35 Add A New Device
Figure 4-36 Add A New Device
