2.
How do I configure the router to access Internet by Ethernet users?
1)
Login to the router, click the "Network" menu on the left of your browser, and click "WAN"
submenu. On the WAN page, select "Dynamic IP" for "WAN Connection Type", finish by
clicking "Save".
2)
Some ISPs require that you register the MAC Address of your adapter, which is
connected to your cable/DSL Modem during installation. If your ISP requires MAC
register, login to the router and click the "Network" menu link on the left of your browser,
and then click "MAC Clone" submenu link. On the "MAC Clone" page, if your PC's MAC
address is proper MAC address, click the "Clone MAC Address" button and your PC's
MAC address will fill in the "WAN MAC Address" field. Or else, type the MAC Address
into the "WAN MAC Address" field. The format for the MAC Address is
XX-XX-XX-XX-XX-XX. Then click the "Save" button. It will take effect after rebooting.
3.
I want to use Netmeeting, what do I need to do?
1)
If you start Netmeeting as a host, you don't need to do anything with the router.
2)
If you start as a response, you need to configure Virtual Server or DMZ Host and make
sure the H323 ALG is enabled.
3)
How to configure Virtual Server: Log in to the router, click the "Forwarding" menu on the
left of your browser, and click "Virtual Servers" submenu. On the "Virtual Servers"
page, click Add New.... Then on the "Add or Modify a Virtual Server Entry" page,
enter "1720" for the "Service Port" blank, and your IP address for the "IP Address" blank,
taking 192.168.0.169 for an example, remember to select the Status to be Enabled and
Save.
Archer C7
AC1750 Wireless Dual Band Gigabit Router

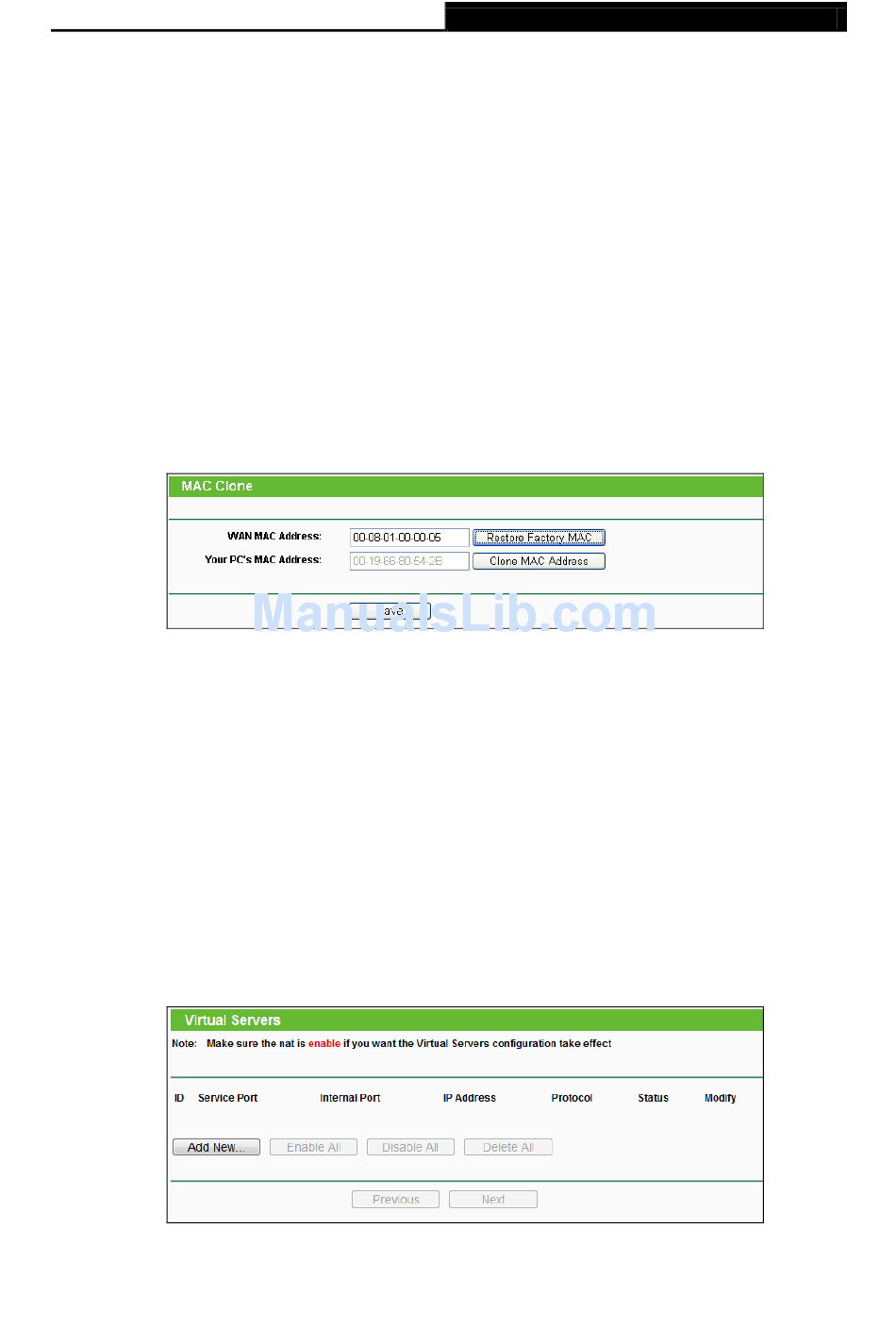

Figure A-3 MAC Clone
Figure A-4 Virtual Servers
- 122 -
