TP-Link Archer C7 AC1750 Manual

Wireless dual band gigabit router
Hide thumbs Also See for Archer C7 AC1750:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

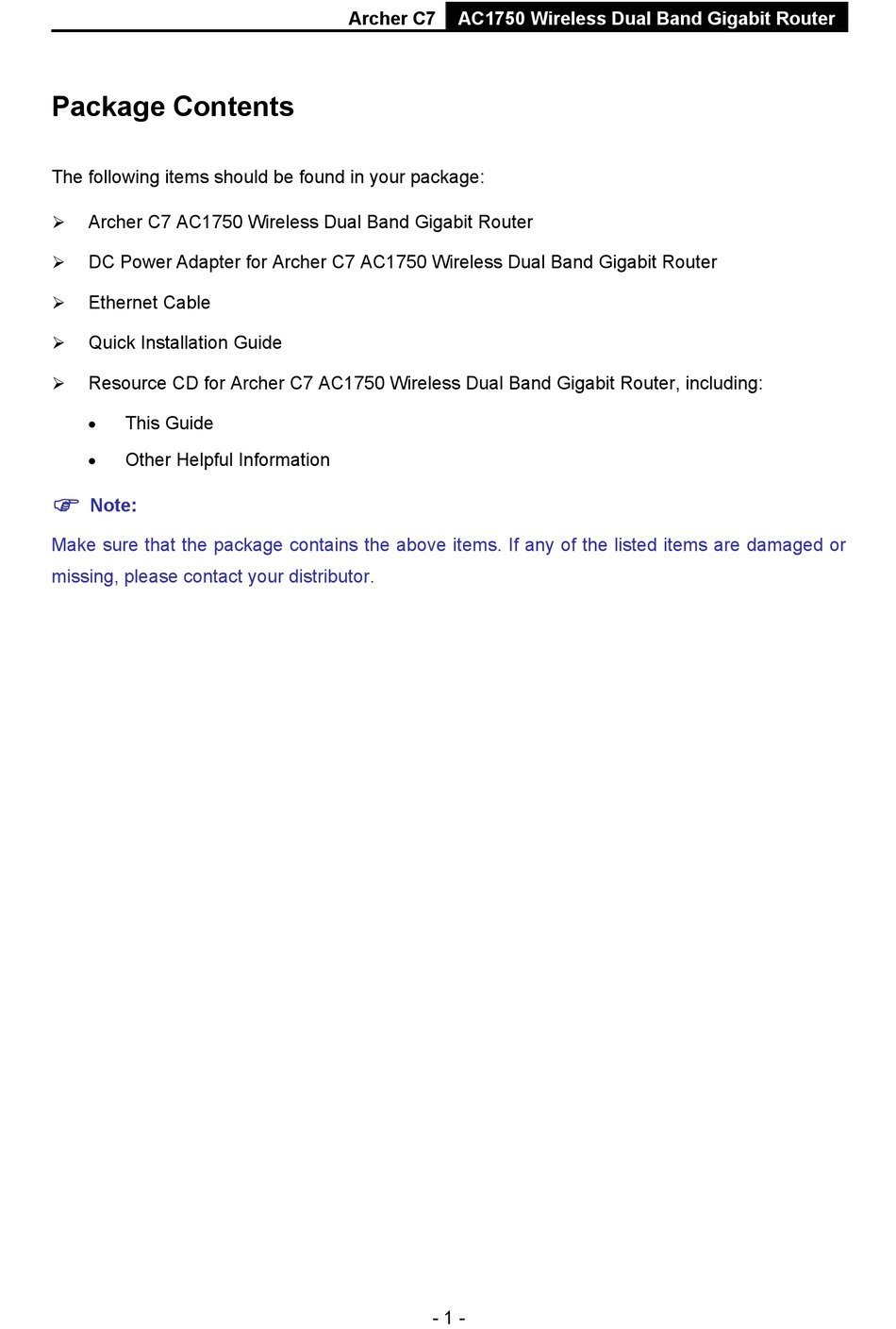

Package Contents
The following items should be found in your package:
Archer C7 AC1750 Wireless Dual Band Gigabit Router
DC Power Adapter for Archer C7 AC1750 Wireless Dual Band Gigabit Router
Ethernet Cable
Quick Installation Guide
Resource CD for Archer C7 AC1750 Wireless Dual Band Gigabit Router, including:
This Guide
Other Helpful Information
Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact your distributor.
Archer C7
AC1750 Wireless Dual Band Gigabit Router
- 1 -

Advertisement

Table of Contents
loading

Related Manuals for TP-Link Archer C7 AC1750

Summary of Contents for TP-Link Archer C7 AC1750

  • Page 1 AC1750 Wireless Dual Band Gigabit Router Package Contents The following items should be found in your package: Archer C7 AC1750 Wireless Dual Band Gigabit Router  DC Power Adapter for Archer C7 AC1750 Wireless Dual Band Gigabit Router  Ethernet Cable  Quick Installation Guide ...

  • Page 2: Chapter 1. Introduction

    Flexible Access Control The Archer C7 AC1750 Wireless Dual Band Gigabit Router provides flexible access control, so that parents or network administrators can establish restricted access policies for children or staff. It also supports Virtual Server and DMZ host for Port Triggering, and then the network administrators can manage and monitor the network in real time with the remote management function.

  • Page 3: Main Features

    Archer C7 AC1750 Wireless Dual Band Gigabit Router Conventions The router or Archer C7 mentioned in this guide stands for Archer C7 AC1750 Wireless Dual Band Gigabit Router without any explanation. Main Features Complies with IEEE 802.11ac.  One 10/100/1000M Auto-Negotiation RJ45 Internet port, four 10/100/1000M Auto-Negotiation ...

  • Page 4: Panel Layout

    Archer C7 AC1750 Wireless Dual Band Gigabit Router Panel Layout 1.4.1 The Front Panel Figure 1-1 LEDs on the front panel The router’s LEDs are located on the front panel (View from left to right). Name Status Indication Power is off. (Power) Power is on.
  • Page 5 The following parts are located on the rear panel (View from left to right). Power: The Power socket is where you will connect the power adapter. Please use the  power adapter provided with this Archer C7 AC1750 Wireless Dual Band Gigabit Router.  On/Off: The switch for the power.
  • Page 6 Archer C7 AC1750 Wireless Dual Band Gigabit Router Pressing this button for more than 5 seconds enables the Reset function. With the router powered on, press and hold the WPS/Reset button (approximately 8 seconds) until the SYS LED becomes quick-flash from slow-flash. And then release the button and wait the router to reboot to its factory default settings.

  • Page 7: Chapter 2. Connecting The Router

    Archer C7 AC1750 Wireless Dual Band Gigabit Router Chapter 2. Connecting the router System Requirements Broadband Internet Access Service (DSL/Cable/Ethernet)  One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the router is  connected directly to the Ethernet) PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors ...
  • Page 8 Archer C7 AC1750 Wireless Dual Band Gigabit Router Make sure the Wireless On/Off switch is ON. Then plug the provided power adapter into the Power jack and the other end to a standard electrical wall socket. Press the On/Off button to power on the Router.
