Channel Width - Select any channel width from the drop-down list. The default setting

is "Auto", which can adjust the channel width for your clients automatically.
Channel - This field determines which operating frequency will be used. It is not

necessary to change the wireless channel unless you notice interference problems with
another nearby access point. If you select "Auto", then the AP will select the best
channel automatically.
7. Configure the basic parameters for 5GHz wireless network in the following screen as shown
in Figure 3-14, and then click Next.
Wireless Radio - Choose from the drop-down list to enable or disable the wireless radio.

Wireless Network Name - Enter a string of up to 32 characters. The same Name (SSID)

must be assigned to all wireless devices in your network. The default SSID is set to be
TP-LINK_xxxx_5G(xxxx indicates the last unique four characters of each Router's MAC
address), which can ensure your wireless network security. But it is recommended
strongly that you change your networks name (SSID) to a different value. This value is
case-sensitive. For example, MYSSID is NOT the same as MySsid.
Region - Select your region from the drop-down list. This field specifies the region where

the wireless function of the router can be used. It may be illegal to use the wireless
function of the router in a region other than one of those specified in this field. If your
country or region is not listed, please contact your local government agency for
assistance.
Archer C7 AC1750 Wireless Dual Band Gigabit Router

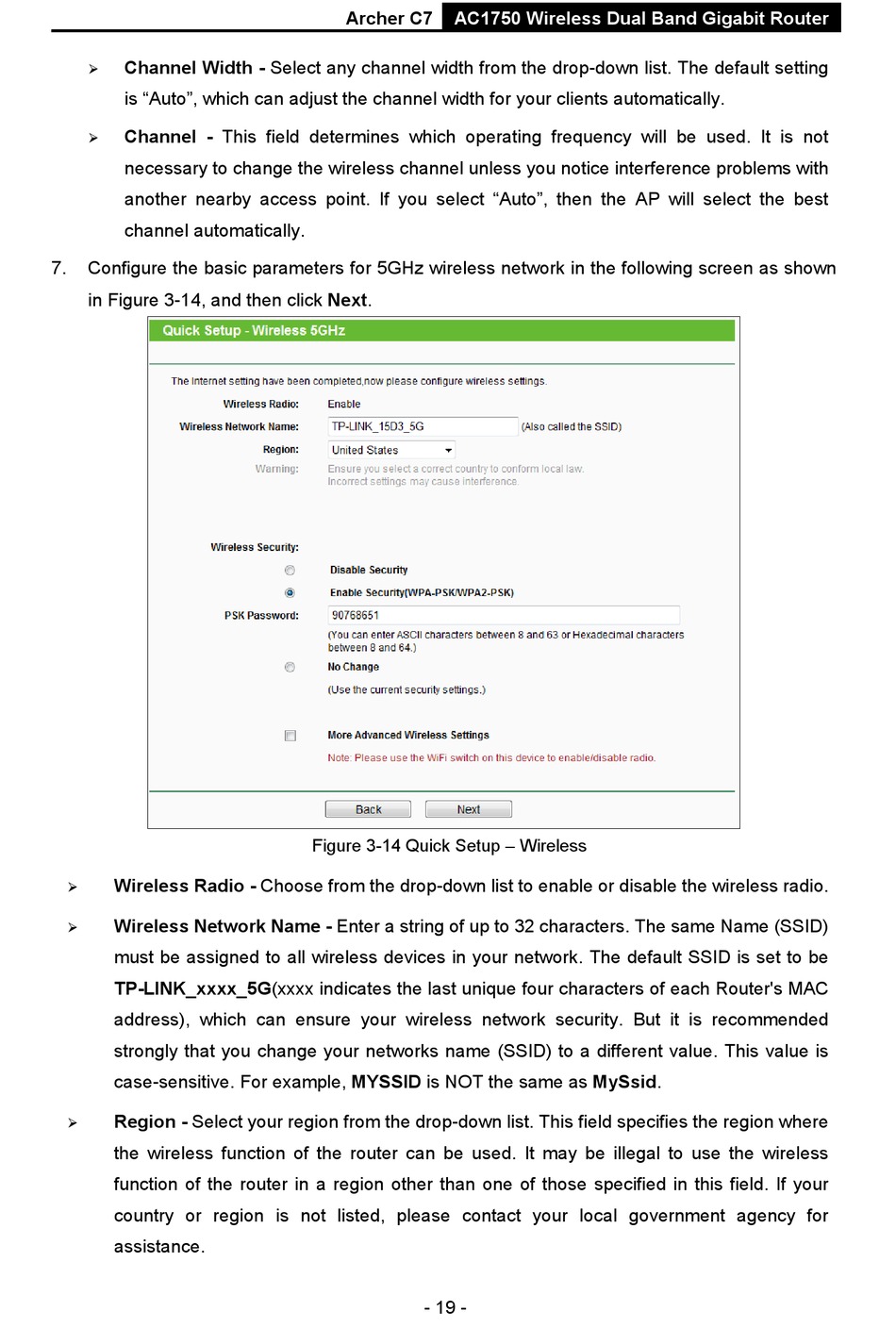

Figure 3-14 Quick Setup – Wireless
- 19 -
