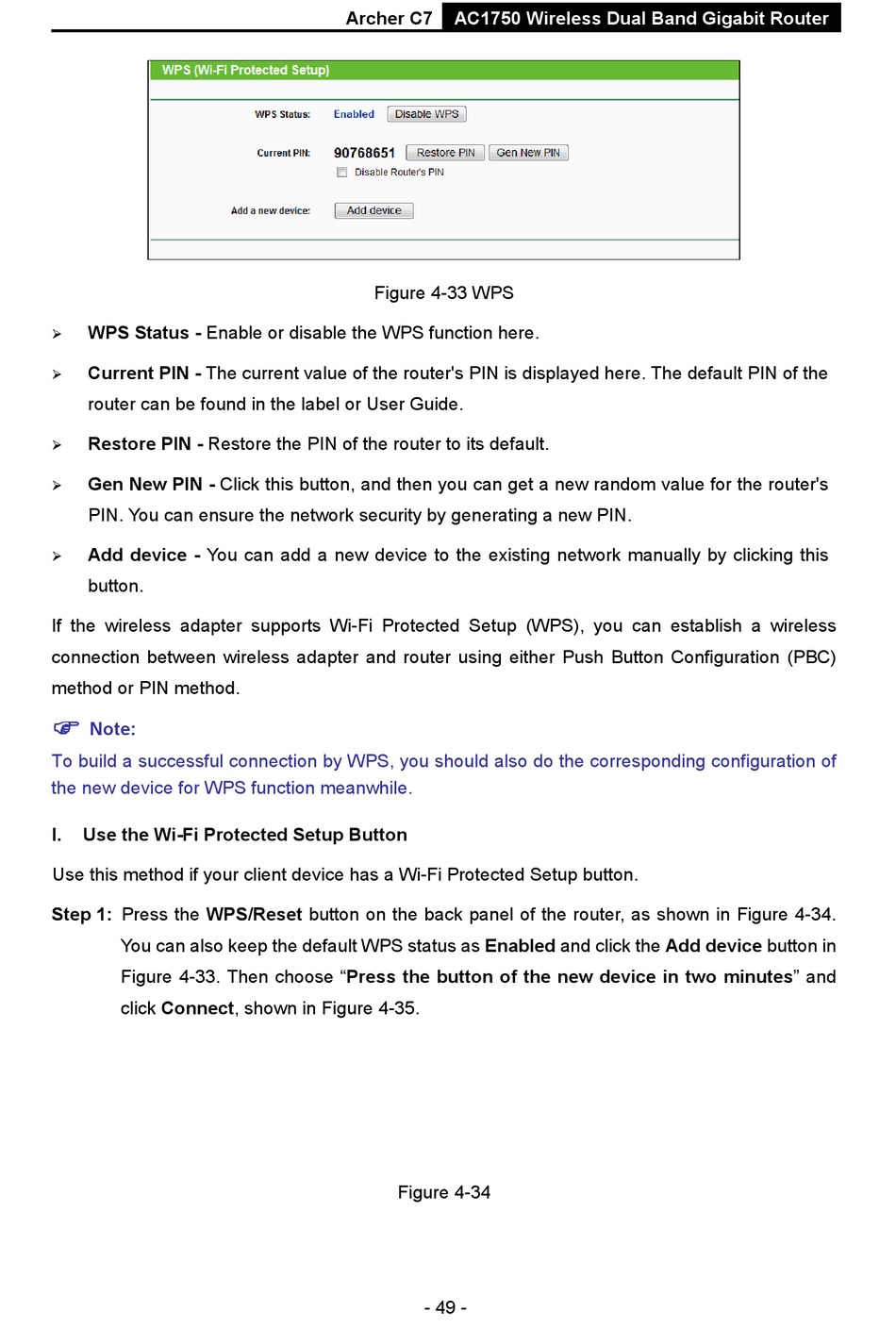

TP-Link Archer C7 AC1750 User Manual page 60

WPS Status - Enable or disable the WPS function here.

Current PIN - The current value of the router's PIN is displayed here. The default PIN of the

router can be found in the label or User Guide.
Restore PIN - Restore the PIN of the router to its default.

Gen New PIN - Click this button, and then you can get a new random value for the router's

PIN. You can ensure the network security by generating a new PIN.
Add device - You can add a new device to the existing network manually by clicking this

button.
If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless
connection between wireless adapter and router using either Push Button Configuration (PBC)
method or PIN method.

Note:
To build a successful connection by WPS, you should also do the corresponding configuration of
the new device for WPS function meanwhile.
I. Use the Wi-Fi Protected Setup Button
Use this method if your client device has a Wi-Fi Protected Setup button.
Step 1: Press the WPS/Reset button on the back panel of the router, as shown in Figure 4-34.
You can also keep the default WPS status as Enabled and click the Add device button in
Figure 4-33. Then choose "Press the button of the new device in two minutes" and
click Connect, shown in Figure 4-35.
Archer C7 AC1750 Wireless Dual Band Gigabit Router
Figure 4-33 WPS
Figure 4-34
- 49 -
