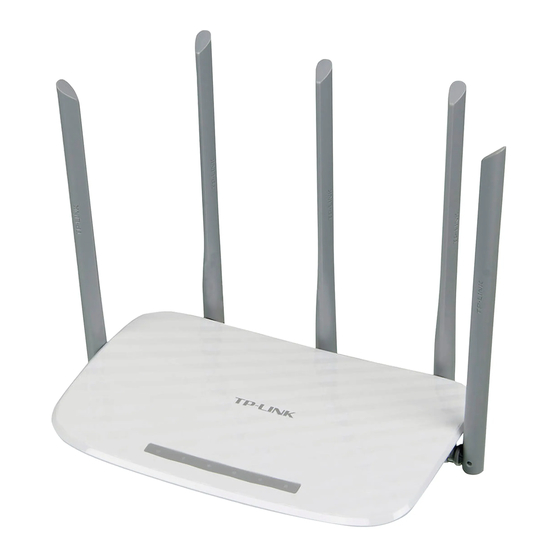

TP-Link ARCHER C60 Quick Installation Manual

Quick Installation Guide

AC1350 Wireless Dual Band Router
C60
Connect the Hardware
If your internet connection is through an Ethernet cable directly from
the wall instead of through a modem, connect the Ethernet cable to
the router's Internet port, then follow Step 4 and 5 to complete the
hardware connection.
Internet
Power adapter
Modem
Power adapter
Router
1
Turn off the modem, and
remove the backup battery if it
has one.
2
Connect the modem to the
router's Internet port with an
Ethernet cable.
3
Turn on the modem, and
then wait about 2 minutes
for it to restart.
5
Verify that the following LEDs
are on and solid to confirm the
hardware is connected correctly.
Power Internet
2.4G 5G
On On On On
Note: If the 2.4G LED and 5G LED are off,
press and hold the WPS/Wi-Fi On/Off button
on the rear panel for 2 seconds and both the
LEDs should turn solid on in a few seconds.
4
Connect the power
adapter to the
router and turn on
the router.
