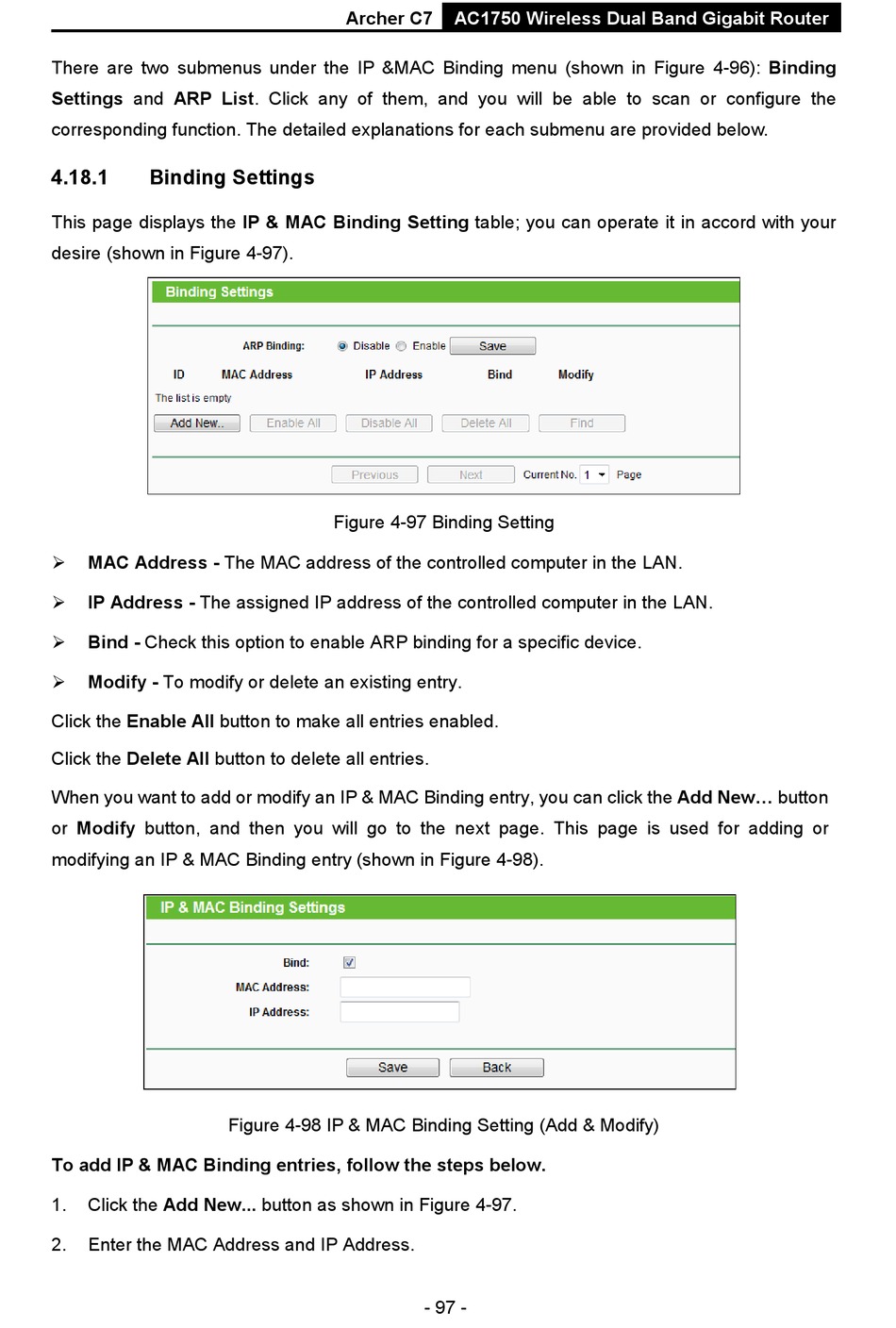

There are two submenus under the IP &MAC Binding menu (shown in Figure 4-96): Binding
Settings and ARP List. Click any of them, and you will be able to scan or configure the
corresponding function. The detailed explanations for each submenu are provided below.
4.18.1

Binding Settings

This page displays the IP & MAC Binding Setting table; you can operate it in accord with your
desire (shown in Figure 4-97).
MAC Address - The MAC address of the controlled computer in the LAN.

IP Address - The assigned IP address of the controlled computer in the LAN.

Bind - Check this option to enable ARP binding for a specific device.

Modify - To modify or delete an existing entry.

Click the Enable All button to make all entries enabled.
Click the Delete All button to delete all entries.
When you want to add or modify an IP & MAC Binding entry, you can click the Add New... button
or Modify button, and then you will go to the next page. This page is used for adding or
modifying an IP & MAC Binding entry (shown in Figure 4-98).
To add IP & MAC Binding entries, follow the steps below.
1. Click the Add New... button as shown in Figure 4-97.
2. Enter the MAC Address and IP Address.
Archer C7
Figure 4-97 Binding Setting
Figure 4-98 IP & MAC Binding Setting (Add & Modify)
AC1750 Wireless Dual Band Gigabit Router
- 97 -
