Current Statistics Status - Enable or Disable. The default value is disabled. To enable it,

click the Enable button. If it is disabled, the function of DoS protection in Security settings will
be disabled.
Packets Statistics Interval （5-60） - The default value is 10. Select a value between 5 and

60 seconds in the drop-down list. The Packets Statistic interval indicates the time section of
the packets statistic.
Sorted Rules - Choose how the displayed statistics are sorted.

Select the Auto-refresh checkbox to refresh automatically.
Click the Refresh button to refresh immediately.
Click Reset All to reset the values of all the entries to zero.
Click Delete All to delete all entries in the table.
Statistics Table:
IP/MAC Address
Packets
Total
Bytes
Packets
Bytes
Current
ICMP
Tx
Archer C7

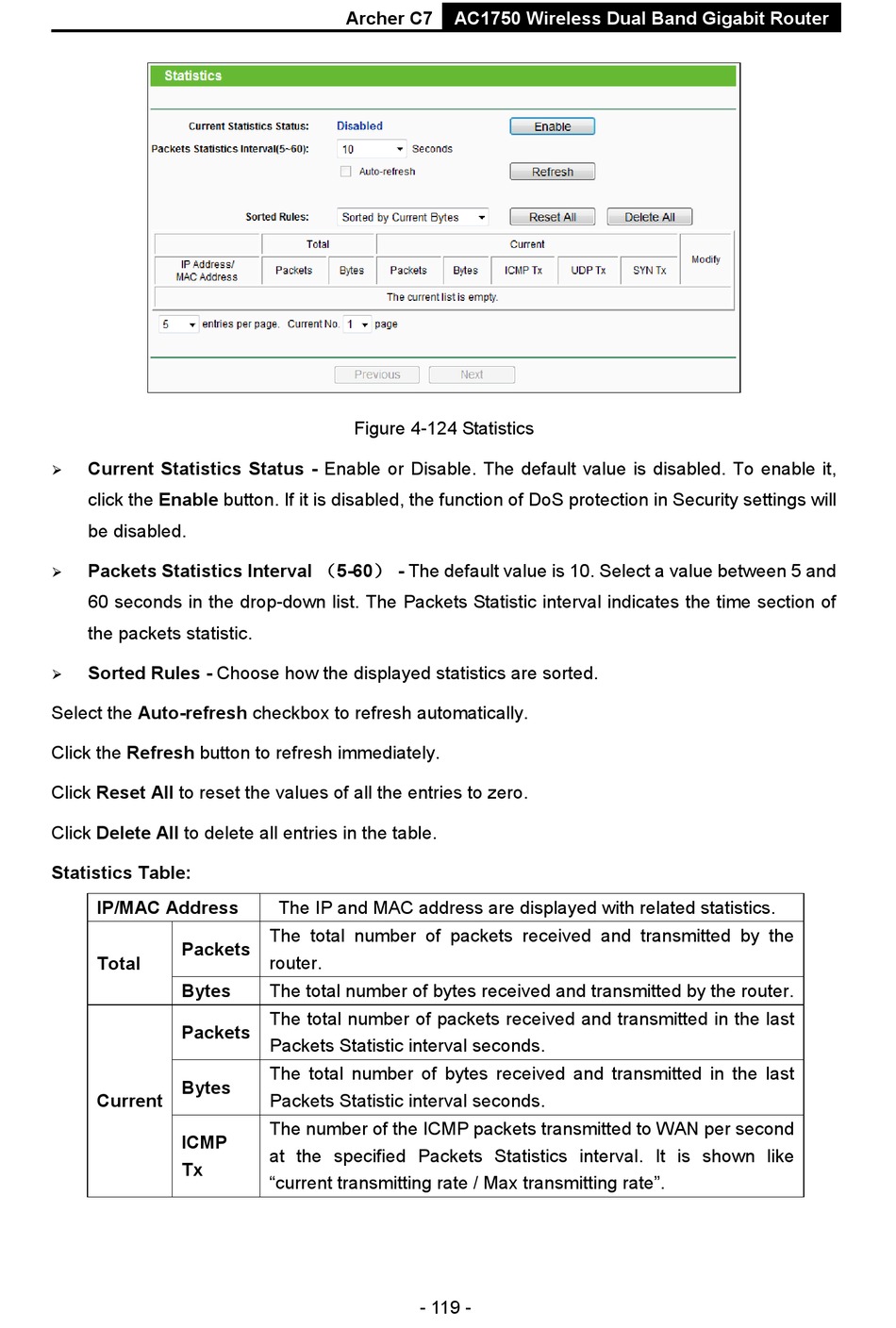

Figure 4-124 Statistics
The IP and MAC address are displayed with related statistics.
The total number of packets received and transmitted by the
router.
The total number of bytes received and transmitted by the router.
The total number of packets received and transmitted in the last
Packets Statistic interval seconds.
The total number of bytes received and transmitted in the last
Packets Statistic interval seconds.
The number of the ICMP packets transmitted to WAN per second
at the specified Packets Statistics interval. It is shown like
"current transmitting rate / Max transmitting rate".
