If your ISP gives you one or two DNS IPv6 addresses, select Use the following IPv6 DNS
Servers and enter the Primary IPv6 DNS and Secondary IPv6 DNS into the correct fields.
Otherwise, the DNS servers will be assigned from ISP dynamically.
Primary IPv6 DNS - Enter the DNS IPv6 address in dotted-decimal notation provided by your
ISP.
Secondary IPv6 DNS - Enter another DNS IPv6 address in dotted-decimal notation provided
by your ISP.
IPv6 Address Assign Type - There are two types of assignation for IPv6 address: SLAAC
(Stateless address auto-configuration) and DHCPv6 (Dynamic Host Configuration Protocol
for IPv6) Server.
SLAAC
IPv6 Address Prefix -The Prefix of IPv6 Address
•
DHCPv6 Server
Release Time - the length of time a network user will be allowed to keep connecting to the
•
router with the current DHCPv6 Address. Enter the amount of time (in seconds) that the
DHCPv6 address will be leased. The time range is 1~691200 seconds. The default value
is 86400 seconds.
IPv6 Address - Displays the LAN IPv6 Address.
•

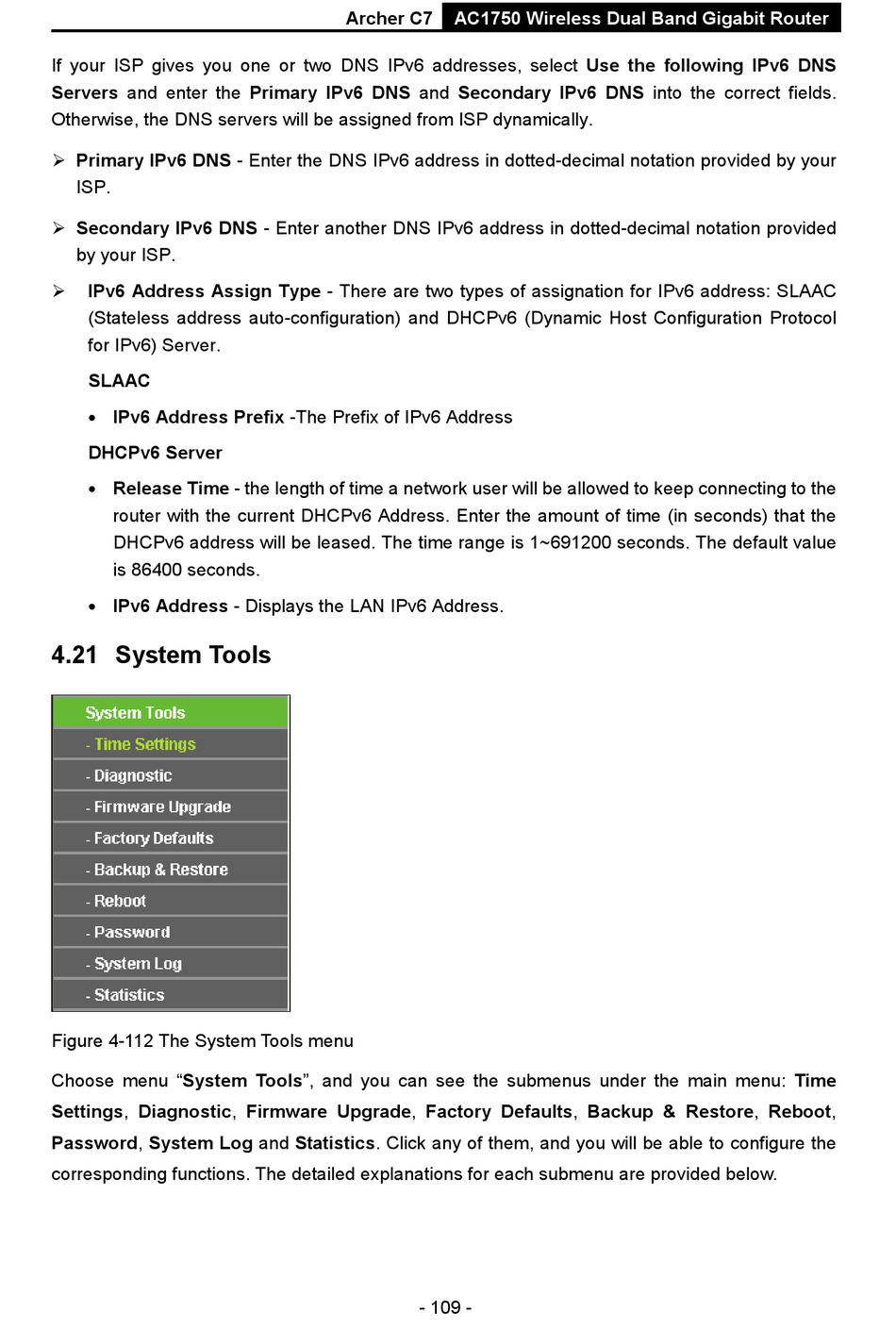

4.21 System Tools
Figure 4-112 The System Tools menu
Choose menu "System Tools", and you can see the submenus under the main menu: Time
Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot,
Password, System Log and Statistics. Click any of them, and you will be able to configure the
corresponding functions. The detailed explanations for each submenu are provided below.
Archer C7
AC1750 Wireless Dual Band Gigabit Router
- 109 -
