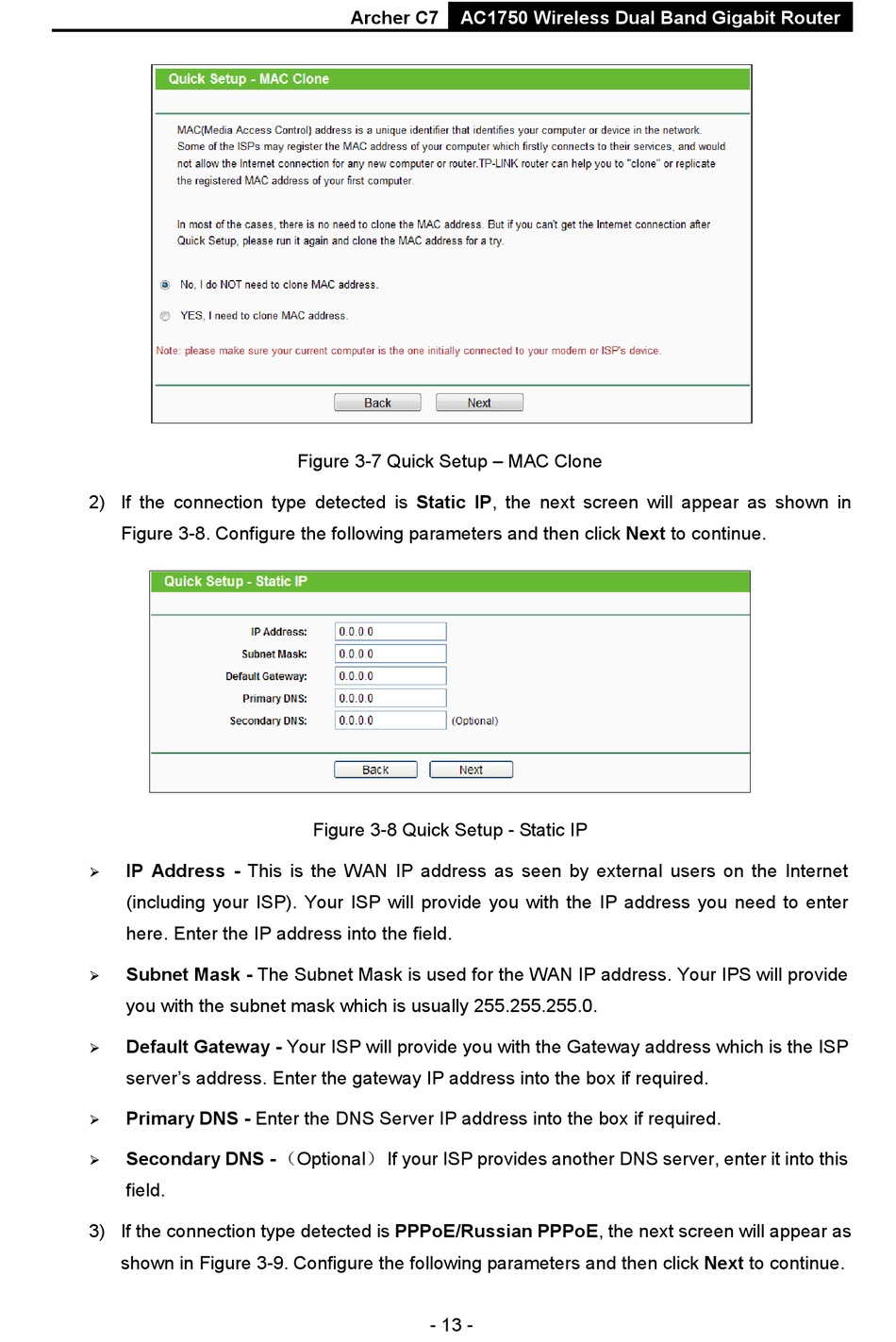

2) If the connection type detected is Static IP, the next screen will appear as shown in
Figure 3-8. Configure the following parameters and then click Next to continue.
IP Address - This is the WAN IP address as seen by external users on the Internet
(including your ISP). Your ISP will provide you with the IP address you need to enter
here. Enter the IP address into the field.
Subnet Mask - The Subnet Mask is used for the WAN IP address. Your IPS will provide
you with the subnet mask which is usually 255.255.255.0.
Default Gateway - Your ISP will provide you with the Gateway address which is the ISP
server's address. Enter the gateway IP address into the box if required.
Primary DNS - Enter the DNS Server IP address into the box if required.
Secondary DNS - （Optional） If your ISP provides another DNS server, enter it into this
field.
3) If the connection type detected is PPPoE/Russian PPPoE, the next screen will appear as
shown in Figure 3-9. Configure the following parameters and then click Next to continue.
Archer C7
AC1750 Wireless Dual Band Gigabit Router
Figure 3-7 Quick Setup – MAC Clone
Figure 3-8 Quick Setup - Static IP
- 13 -
