The Rear Panel - TP-Link Archer C7 AC1750 User Manual


Note:
1. After a device is successfully added to the network by WPS function, the WPS LED will keep
on for about 5 minutes and then turn off.
2. The router is set to working concurrently in 2.4GHz and 5GHz by default. If you desire to
choose the working frequency, please go to
1.4.2

The Rear Panel

The following parts are located on the rear panel (View from left to right).
Power: The Power socket is where you will connect the power adapter. Please use the

power adapter provided with this Archer C7 AC1750 Wireless Dual Band Gigabit Router.
On/Off: The switch for the power.

Wireless On/Off: The switch for the wireless function.

USB: The USB port connects to a USB storage device or a USB printer.

Internet: This port is where you will connect the DSL/cable Modem, or Ethernet.

Ethernet (1, 2, 3, 4): These ports (1, 2, 3, 4) connect the router to the local PC(s).

WPS/Reset:

Pressing this button for less than 5 seconds enables the WPS function. If your client devices,
such as wireless adapters, that support Wi-Fi Protected Setup, then you can press this
button to quickly establish a connection between the router and client devices and
automatically configure wireless security for your wireless network.
Archer C7 AC1750 Wireless Dual Band Gigabit Router
4.5 Dual Band

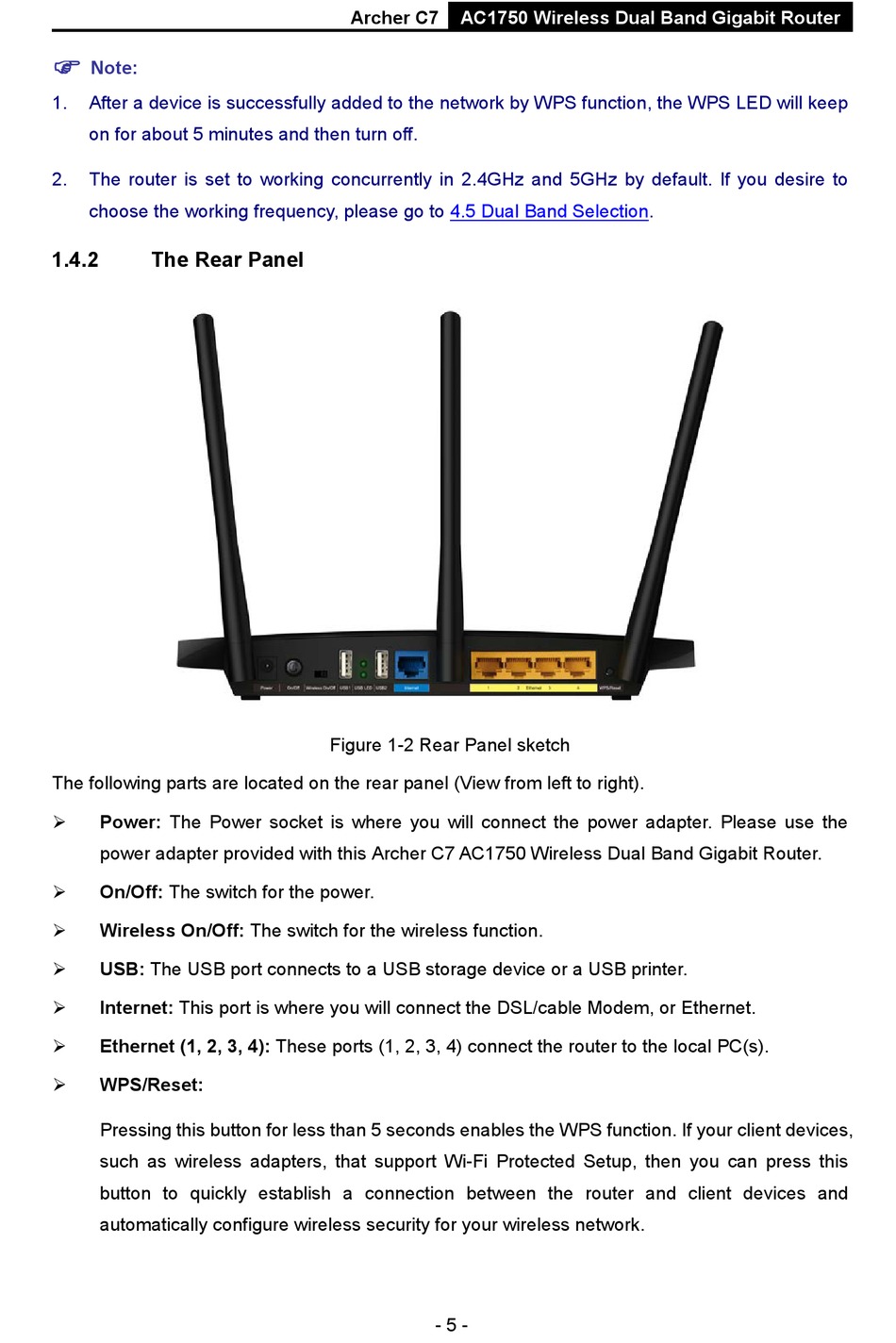

Figure 1-2 Rear Panel sketch
- 5 -
Selection.
