Dynamic Setup

Dynamic Setup

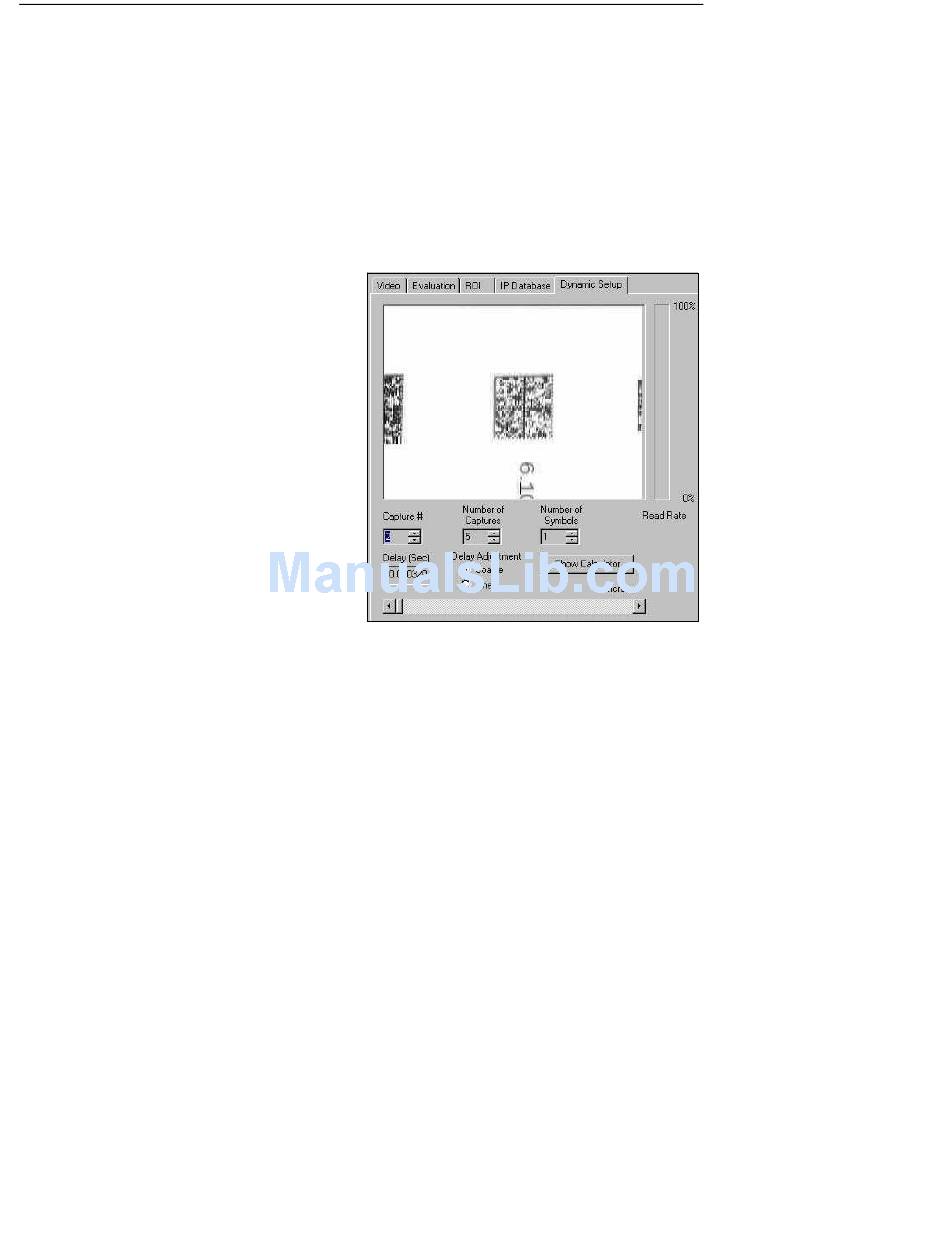

You can visually determine where moving symbols will appear in the FOV during a read
cycle by adjusting the delay time before capture.
Note: If not already in Edge and Rapid modes, the reader will automatically change to
those settings when you open the Dynamic window.
1. First set the Captures
2. Next set the Number of Captures
the read cycle.
3. Set Delay time.
If Number of Captures is set to 1,
Delay time will be the time between
the start of a read cycle and the first
capture. If set to any number other
than 1, Delay time will be the time
between the capture set in Capture #
and the previous capture.
4. Start the moving application and trig-
ger the read cycle.
5. Adjust the Delay setting so that the
symbol appears near the center of the
window.
For example, if Number of Symbols is set
to 3 and Capture # is set to 1, the Delay
time will represent the time before the cap-
ture. You can change the number by manu-
ally sliding the bar tab back and forth or by
typing in a number. Numbers in the Delay
box are rounded to the nearest value in ±32µS increments.
Note: If a read cycle trigger occurs before ESP has finished processing/receiving an
image from the previous read cycle, the trigger will be ignored. This is done to ensure that
ESP remains in sync with the reader.
9-12
#.
and Number of Symbols that will be read during
