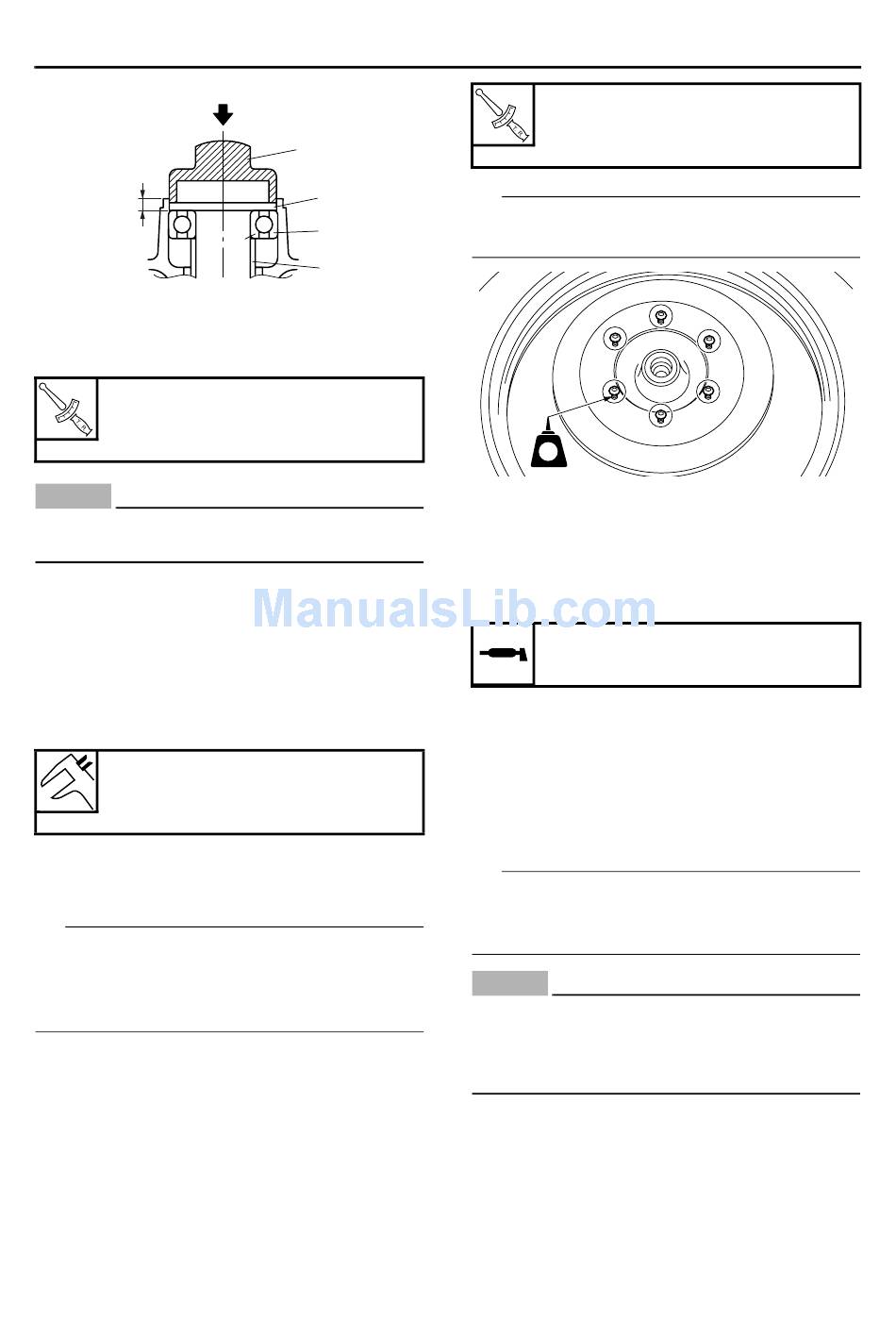

2. Install:
• Rear wheel sensor rotor
Rear wheel sensor rotor bolt
8 Nm (0.8 m·kgf, 5.8 ft·lbf)
LOCTITE®
ECA23P1019
NOTICE
Replace the wheel sensor rotor bolts with
new ones.
3. Measure:
• Wheel sensor rotor deflection
Out of specification → Correct the wheel sen-
sor rotor deflection or replace the wheel sen-
sor rotor.
Refer to "MAINTENANCE OF THE REAR
WHEEL SENSOR AND SENSOR ROTOR"
on page 4-33.
Wheel sensor rotor deflection
limit
0.15 mm (0.0059 in)
EAS22150
ADJUSTING THE REAR WHEEL STATIC
BALANCE
TIP
• After replacing the tire, wheel or both, the rear
wheel static balance should be adjusted.
• Adjust the rear wheel static balance with the
brake disc and rear wheel drive hub installed.
1. Adjust:
• Rear wheel static balance
Refer to "ADJUSTING THE FRONT WHEEL
STATIC BALANCE" on page 4-26.
EAS22170
INSTALLING THE REAR WHEEL (REAR
BRAKE DISC)
1. Install:
• Rear brake disc
• Rear brake disc cover
2
1
4
3
5
L LLL L L LLL L L LLL L
TIP
Tighten the brake disc bolts in stages and in a
crisscross pattern.
LLL
LT
2. Check:
• Rear brake disc
Refer to "CHECKING THE REAR BRAKE
DISC" on page 4-59.
3. Lubricate:
• Oil seal lips
4. Install:
• Rear wheel sensor housing
• Rear wheel
• Rear brake caliper
• Rear wheel axle
• Brake torque rod
• Rear wheel axle nut
TIP
Align the slot "a" of the rear wheel sensor hous-
ing "1" with the projection "b" of the rear brake
caliper bracket "2", and then assemble them.
ECA14470
NOTICE
Make sure there are no foreign materials in
the wheel hub. Foreign materials cause dam-
age to the inner sensor rotor and wheel sen-
sor.
4-34
REAR WHEEL
Rear brake disc bolt
23 Nm (2.3 m·kgf, 17 ft·lbf)
LOCTITE®
Recommended lubricant
Lithium-soap-based grease
