EAS23P1003

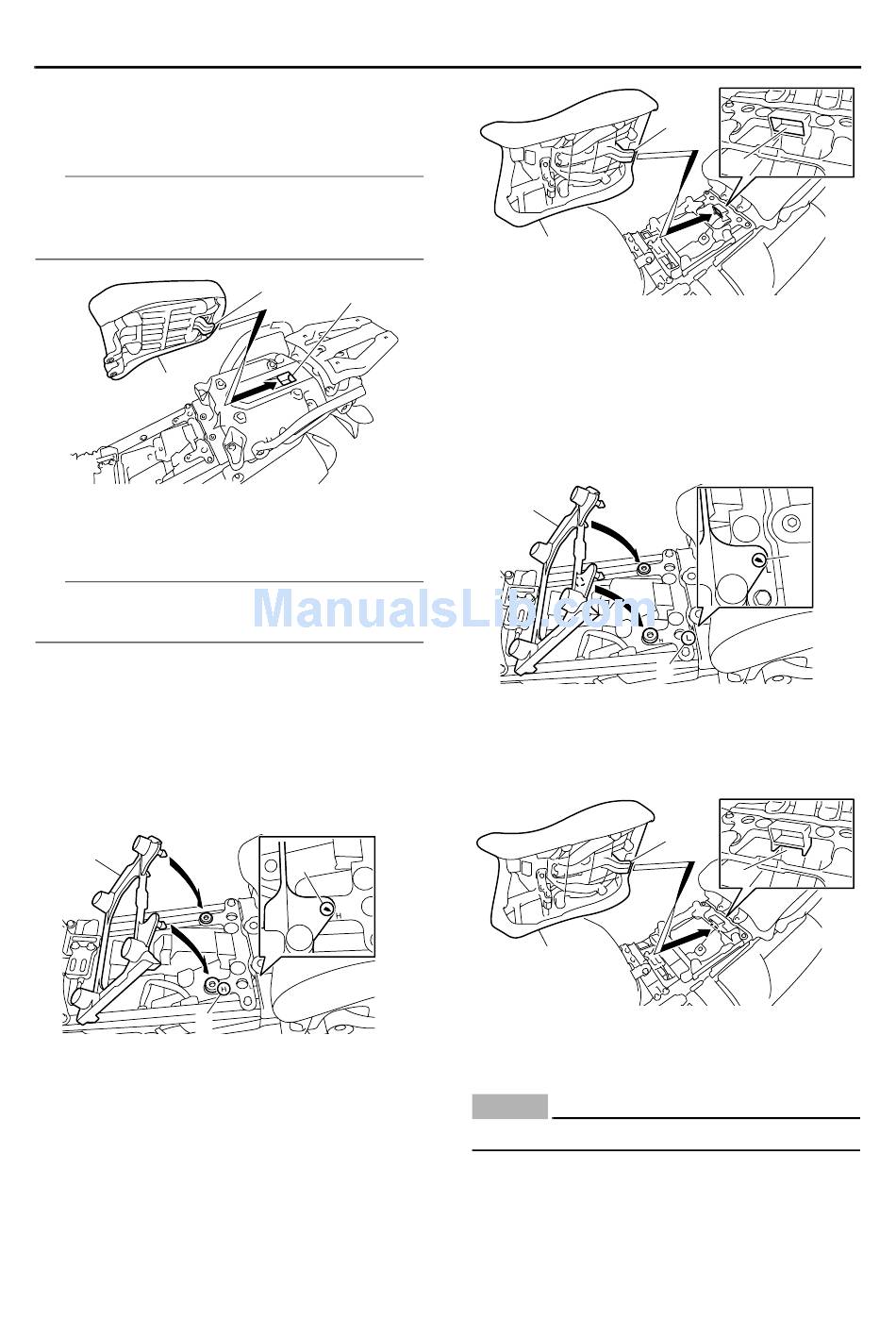

INSTALLING THE SEATS

1. Install:
• Passenger seat "1"
TIP
Insert the projection "a" on the rear of the pas-
senger seat into the seat holder "b" in the addi-
tional carrier.
1
2. Install:
• Rider seat height position adjuster "1"
• Rider seat "2"
TIP
The rider seat height can be adjusted to one of
two positions to suit the rider's preference.
M MMM M MMM M M MMM M
To install the rider seat in the high posi-
tion
a. Install the rider seat height position adjuster
so that the match mark "a" on the adjuster is
aligned with the "H" mark "b" on the seat
bracket.
1
b
b. Insert the projection "c" on the rear of the rider
seat into the seat holder "d" in the seat brack-
et, and then push the front of the seat down
to lock it in place.
a
b
M MMM M M MMM M M MMM M
a
2
L LLL L LLL L
M MMM M MMM M
To install the rider seat in the low position
a. Install the rider seat height position adjuster
so that the match mark "a" on the adjuster is
aligned with the "L" mark "b" on the seat
bracket.
1
MMM
b. Insert the projection "c" on the rear of the rider
seat into the seat holder "d" in the seat brack-
et, and then push the front of the seat down
to lock it in place.
2
L LLL L LLL L
EAS23P1005

INSTALLING THE CARRIERS

ECA23P1058
NOTICE
Do not lift the vehicle by either carrier.
This vehicle is equipped with a standard carrier
"1" and an additional carrier "2". To use the stan-
dard carrier only, perform steps (1) to (4). To use
the standard carrier and additional carrier, per-
form steps (1) to (3), (5), and (6).
