EAS24490

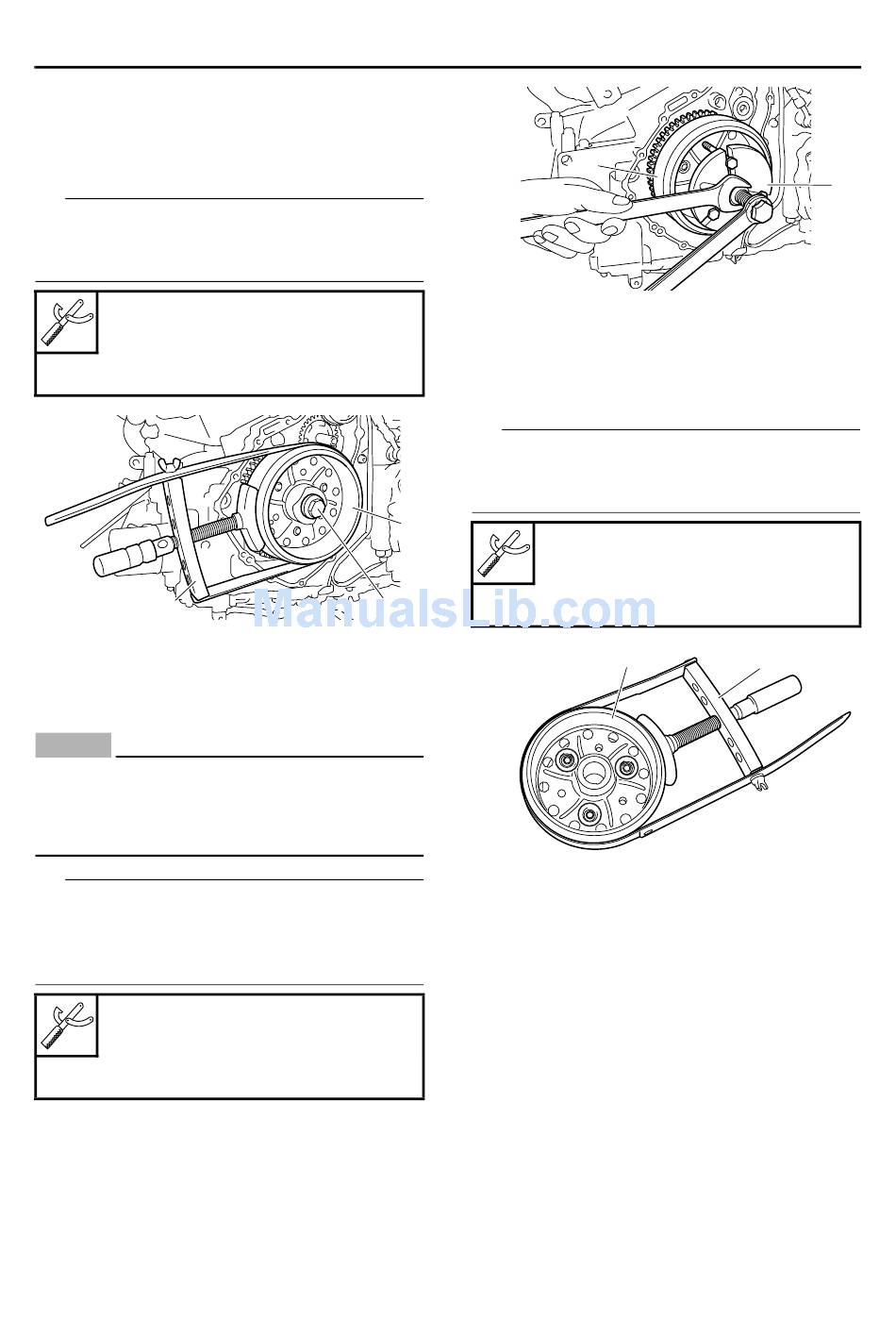

REMOVING THE GENERATOR

1. Remove:
• Generator rotor bolt "1"
• Washer
TIP
While holding the generator rotor "2" with the
sheave holder "3", loosen the generator rotor
bolt.
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
3
2. Remove:
• Generator rotor "1"
(with the flywheel puller "2")
• Woodruff key
ECA13880
NOTICE
To protect the end of the crankshaft, place an
appropriate sized socket between the fly-
wheel puller set center bolt and the crank-
shaft.
TIP
• Install the flywheel puller bolts to the threaded
holes of the starter clutch.
• Make sure the flywheel puller is centered over
the generator rotor.
Flywheel puller
90890-01362
Heavy duty puller
YU-33270-B
GENERATOR AND STARTER CLUTCH
EAS24560

REMOVING THE STARTER CLUTCH

1. Remove:
• Starter clutch bolts
• Starter clutch
TIP
While holding the generator rotor "1" with the
sheave holder "2", loosen the starter clutch
bolts.
2
1
EAS24570

CHECKING THE STARTER CLUTCH

1. Check:
• Starter clutch rollers
Damage/wear → Replace.
2. Check:
• Starter clutch idle gear
• Starter clutch gear
Burrs/chips/roughness/wear → Replace the
defective part(s).
3. Check:
• Starter clutch gear contact surfaces
Damage/pitting/wear → Replace the starter
clutch gear.
4. Check:
• Starter clutch operation
5-45
1
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
1
2
2
