(Analog / Digital) Input Trim page

Page purpose:
return input.
How to get here:
Analog
(MENU key  Input Configure button  Adjust Trim button)
Digital
(MENU key  Input Configure button  Analog Inputs Toggle button {=Digital}  Adjust Trim button)

Page Notes

None

Page Level Shortcuts

None

Input (#) Trim fields

It displays the current Trim value and by clicking on it allows you to change the value with the More Gain button
or Less Gain button. (Valid range: -20 – 0 – +30 dB, Value step: 1)

Input (#) Level meters

It allows you to see graphically how the signals compare to each other. The scale is in dB.

Less Gain button

Pressing it decrements the selected parameter by its step value.

More Gain button

Pressing it increments the selected parameter by its step value.

Clear Trim button

Pressing it clears all the entered trims.

Select All button

Pressing it selects all of the channels to make changes to all at the same time.

Adjusting the Trim

1. Press one of the Input (#) Level meters for the channel you want to adjust.
The Trim value for the channel turns
2. Press either the More Gain button or Less Gain button.
3. Repeat steps 1 & 2 until all channels have been adjusted.
This page allows you to individually adjust the gain on each of the 8 analog inputs and the camera
Analog Input Trim view

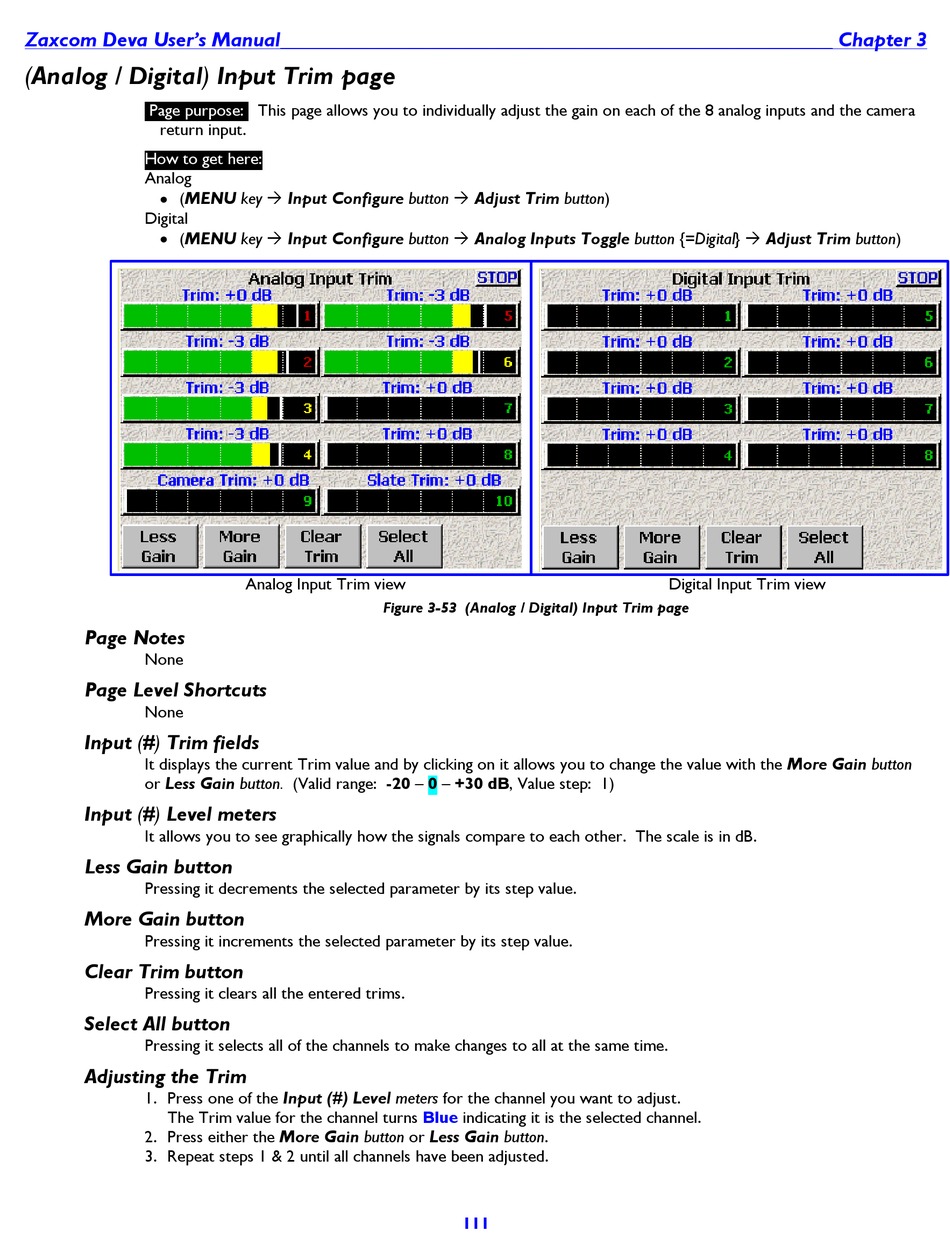

Figure 3-53 (Analog / Digital) Input Trim page
Blue indicating it is the selected channel.
111
Digital Input Trim view
