Zaxcom Deva User's Manual_______________________________________________________ Chapter 3

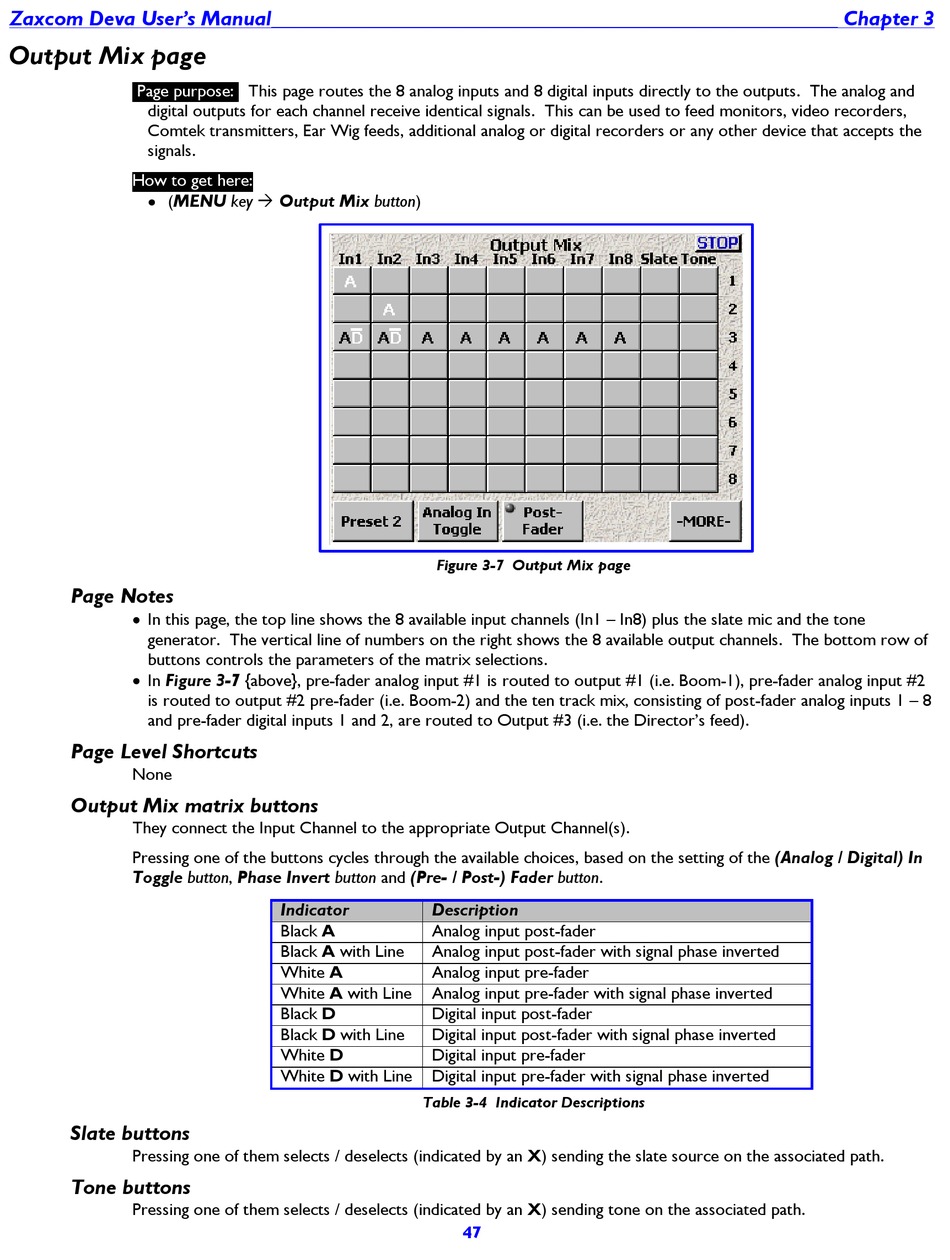

Output Mix page
Page purpose:
digital outputs for each channel receive identical signals. This can be used to feed monitors, video recorders,
Comtek transmitters, Ear Wig feeds, additional analog or digital recorders or any other device that accepts the
signals.
How to get here:
(MENU key  Output Mix button)

Page Notes

In this page, the top line shows the 8 available input channels (In1 – In8) plus the slate mic and the tone
generator. The vertical line of numbers on the right shows the 8 available output channels. The bottom row of
buttons controls the parameters of the matrix selections.
In Figure 3-7 {above}, pre-fader analog input #1 is routed to output #1 (i.e. Boom-1), pre-fader analog input #2
is routed to output #2 pre-fader (i.e. Boom-2) and the ten track mix, consisting of post-fader analog inputs 1 – 8
and pre-fader digital inputs 1 and 2, are routed to Output #3 (i.e. the Director's feed).
Page Level Shortcuts
None

Output Mix matrix buttons

They connect the Input Channel to the appropriate Output Channel(s).
Pressing one of the buttons cycles through the available choices, based on the setting of the (Analog / Digital) In
Toggle button, Phase Invert button and (Pre- / Post-) Fader button.
Slate buttons
Pressing one of them selects / deselects (indicated by an X) sending the slate source on the associated path.
Tone buttons
Pressing one of them selects / deselects (indicated by an X) sending tone on the associated path.
This page routes the 8 analog inputs and 8 digital inputs directly to the outputs. The analog and
Indicator
Black A
Black A with Line
White A
White A with Line
Black D
Black D with Line
White D
White D with Line
Table 3-4 Indicator Descriptions

Figure 3-7 Output Mix page

Description
Analog input post-fader
Analog input post-fader with signal phase inverted
Analog input pre-fader
Analog input pre-fader with signal phase inverted
Digital input post-fader
Digital input post-fader with signal phase inverted
Digital input pre-fader
Digital input pre-fader with signal phase inverted
47
